Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA RAM STEER 60 X 30 LH 553/60243 | 1 | $1,843.66 | ||||
| 1 | ASSY END CAP 60x30 (332/G1493) 332/G4303 | 1 | $124.12 | |||
| 2 | WA.ROD P255 STEER 30*540 590/40201 | 1 | $942.44 | |||
| 3 | 'O' RING.30X2.0 METRIC 2302/0007 | 1 | $16.69 | |||
| 4 | DOWEL 6*20Mmm (KANBAN) 826/01182 | 1 | $8.07 | |||
| 5 | WEAR RING 60 x 6.9 2411/7916 | 1 | $18.47 | |||
| 6 | PISTON SEAL 60 x 6 2411/1129 | 1 | $71.17 | |||
| 7 | WA CYLINDER 60 X 458.5 553/70243 | 1 | $1,037.49 | |||
| 8 | SEAL 904/15400 | 1 | $29.78 | |||
| 9 | BEARING GB 50x40x69 809/02019 | 1 | $61.81 | |||
| 12 | TAPERED PLUG 7 x 9.5 Use Pt 9991/0020 332/C6567 | 1 | $0.81 | |||
| 42 | CAP G3/8 816/90500 | 1 | $4.26 | |||
| 50 | UNIVERSAL SERVICE SEAL KI 991/20018 991/20024 | 1 | $86.26 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

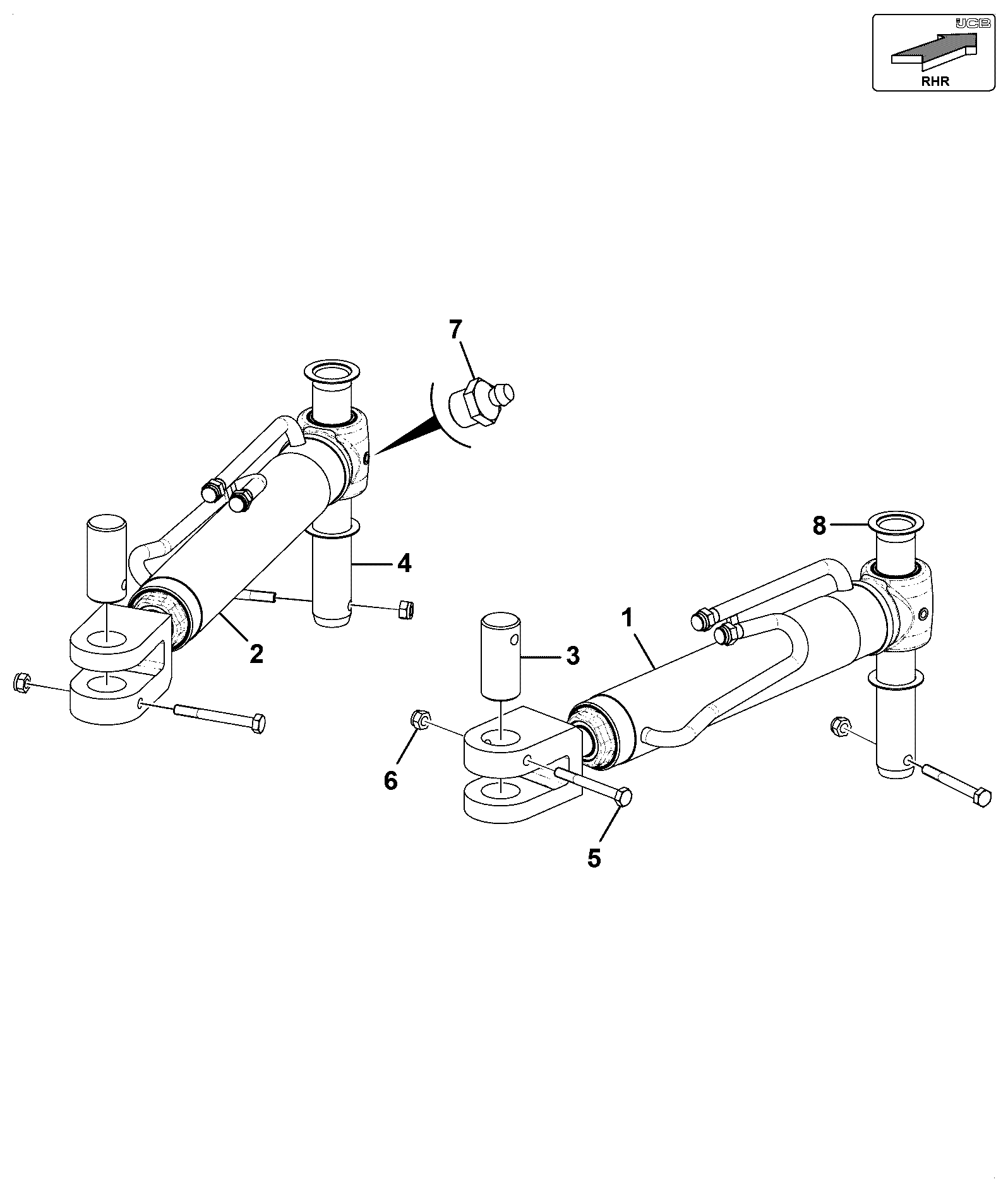

DIAG-E400-10-1-403011 E400-10-1 RAM INSTALLATION ASSEMBLIES STEER RAMS ASSY
View Diagram -
DIAG-E410-5-1-403011 E410-5-1 RAMS STEER ASSEMBLY RAM STEER 60 X 30 RH
View Diagram -
DIAG-E400-5-1-403011 E400-5-1 RAM INSTALLATION ASSEMBLIES ASSEMBLY PISTON HEAD
View Diagram
