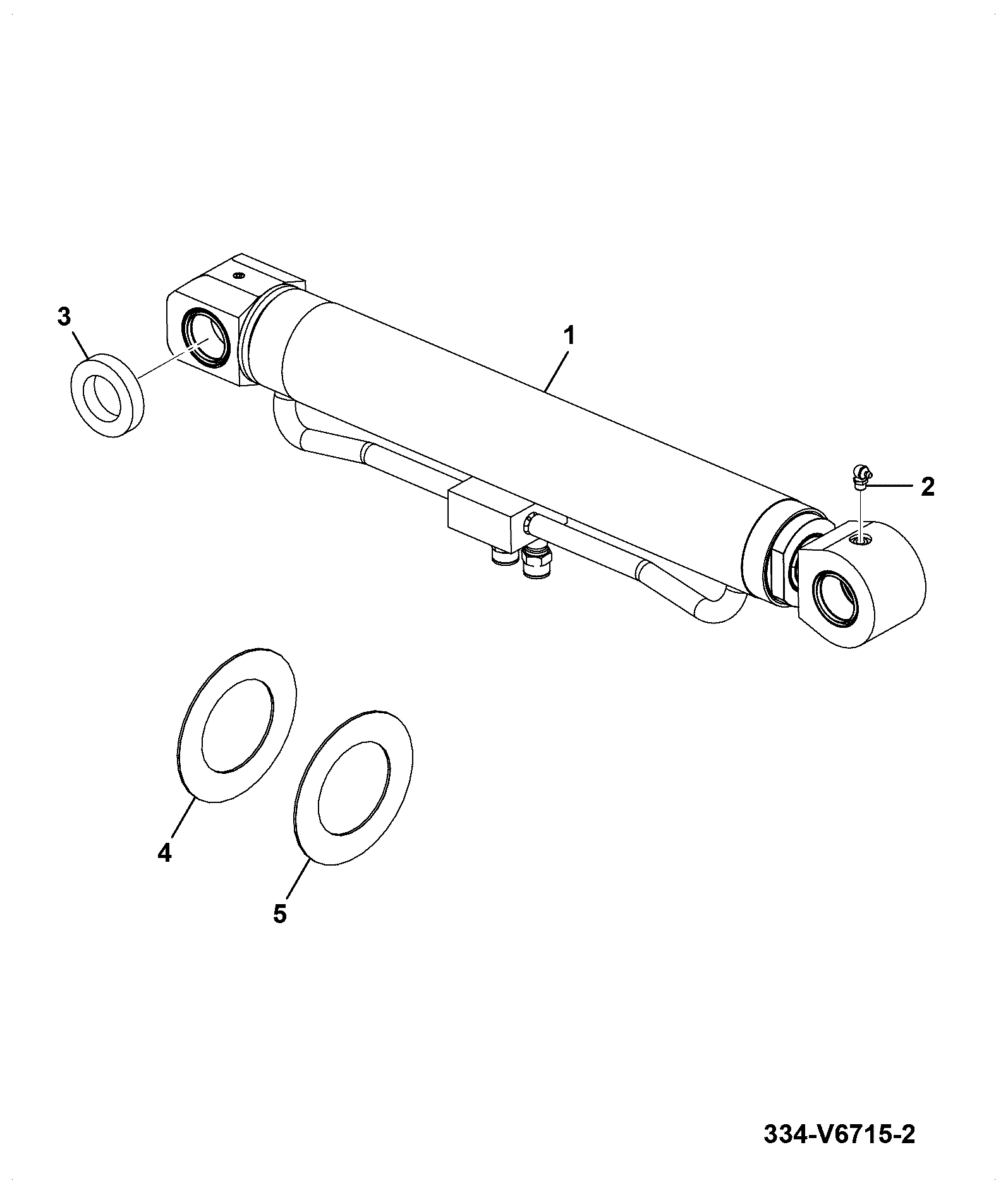

E405-50-1 RAMS DOZER COMPONENTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	Ring 335/E6980 550/42048	1	AVAILABLE TO ORDER	$4.35	Quantity
4	Bush 550/40914	1	AVAILABLE TO ORDER	$53.68	Quantity
5	BUSH 400/01050	1	AVAILABLE TO ORDER	$55.26	Quantity
6	GUARD 335/E7656	1	AVAILABLE TO ORDER	$0.41	Quantity
7	Ring 550/40973	1	AVAILABLE TO ORDER	$0.55	Quantity
9	SEAL KIT 400/01076	1	AVAILABLE TO ORDER	$244.74	Quantity
A	RAM DOZER 110 X 60 48Z & 400/J9332	1	AVAILABLE TO ORDER	$1,421.51	Quantity

Showing 1 to 7 of 7 parts
