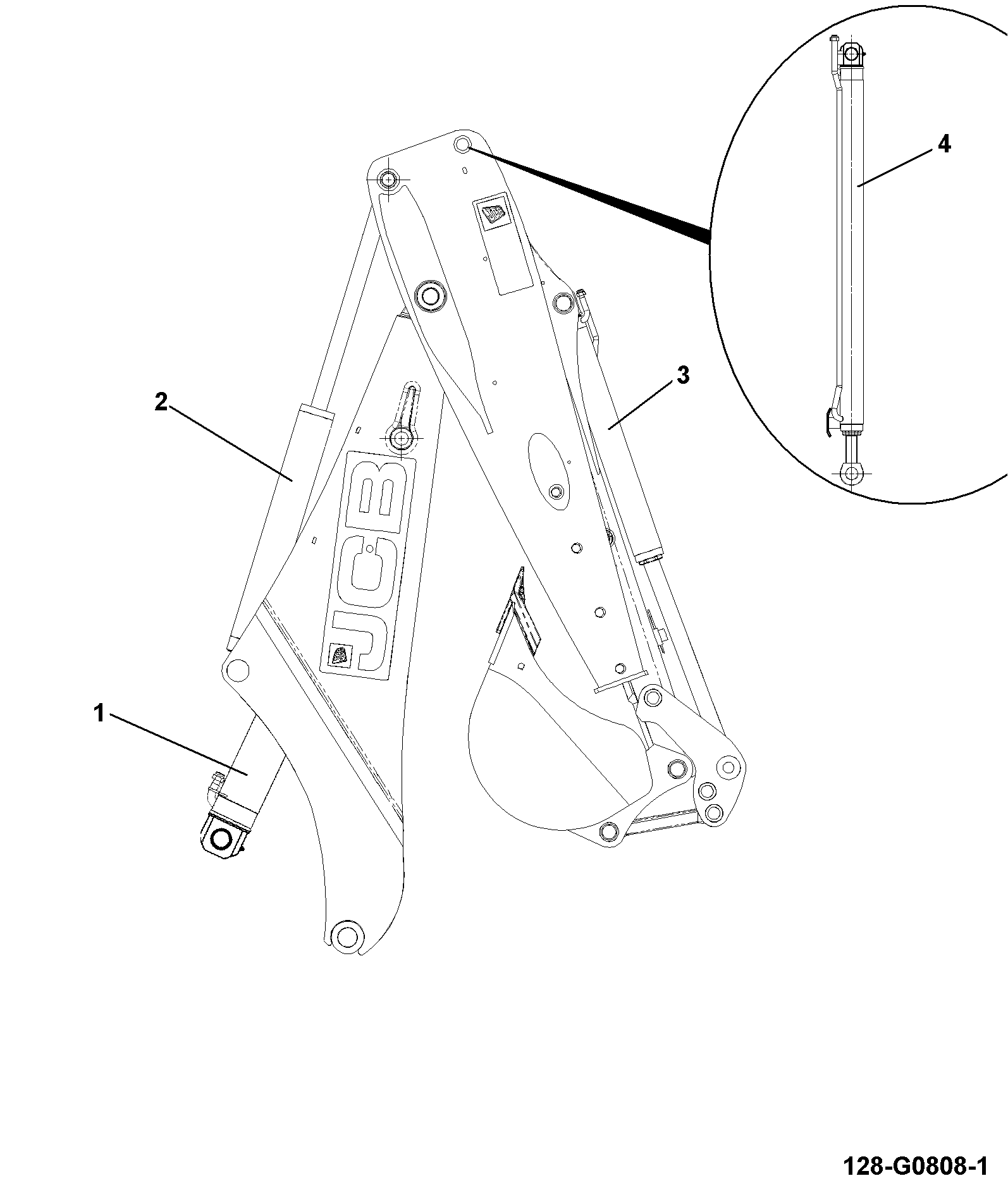

E400-16-101 RAM INSTALLATION ASSEMBLIES 15’6″ EXTENDING DIPPER, SIDESHIFT, END DAMPED BOOM RAM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	EXP ED 214HL BOOM 563/60101	1	AVAILABLE TO ORDER	$4,772.44	Quantity
2	215E DIPPER LF 559/60177 559/60176	1	AVAILABLE TO ORDER	$5,101.59	Quantity
3	EXP Bucket 90x60 (EXT Hallite Seals) 557/60030 557/60210	1	AVAILABLE TO ORDER	$4,425.15	Quantity
4	GA RAM Extdip 70x40 (5CX WM) 556/60504	1	AVAILABLE TO ORDER	$3,418.75	Quantity

Showing 1 to 4 of 4 parts
