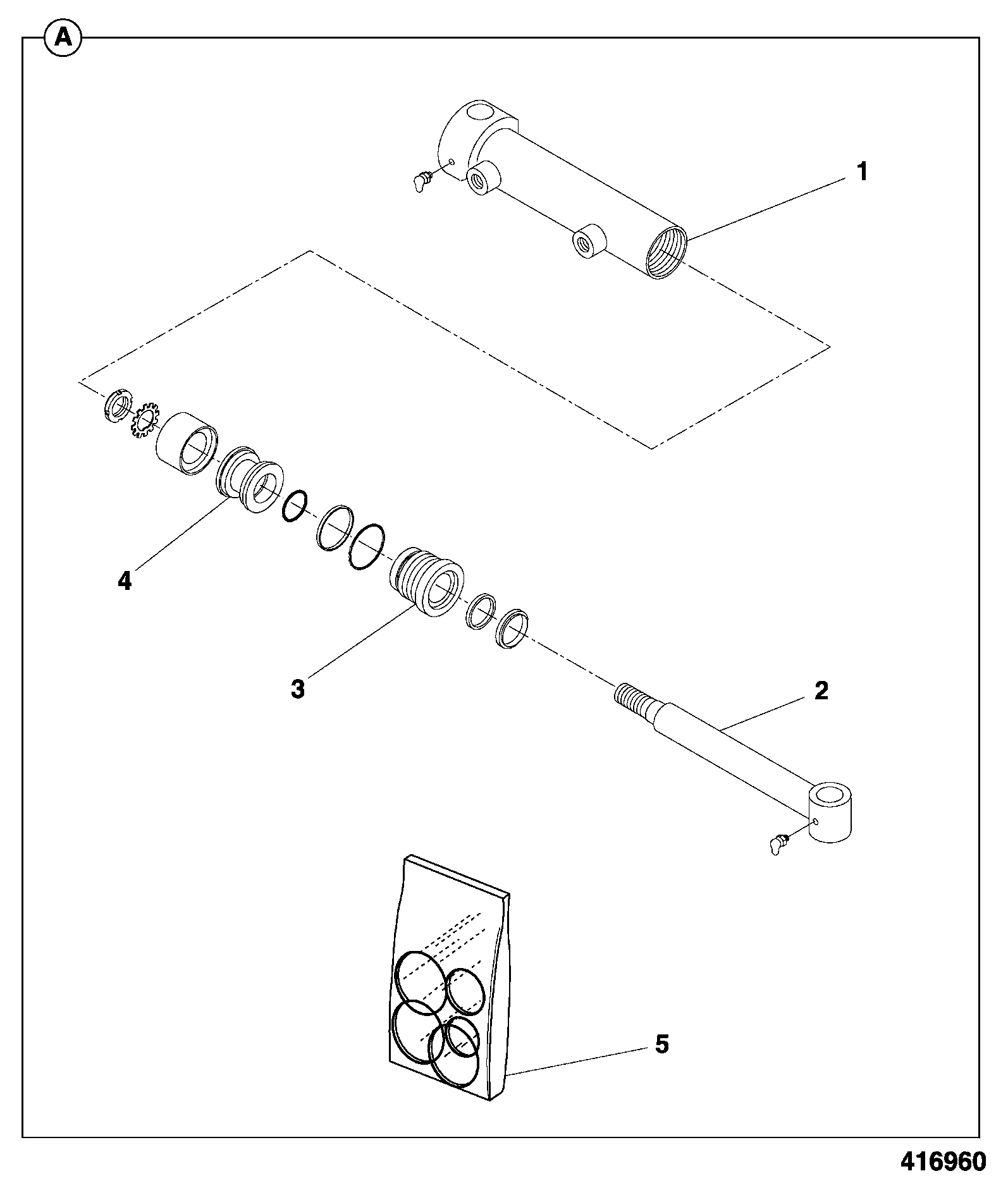

E4-9-1 RAM DOZER ABI Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Ram Dozer 239/00244	1	AVAILABLE TO ORDER	$521.85	Quantity
1	Bush 903/21381	1	AVAILABLE TO ORDER	$70.12	Quantity
2	Nipple Grease 903/20878	1	AVAILABLE TO ORDER	$3.02	Quantity
4	Piston Head 551/90614	1	AVAILABLE TO ORDER	$91.89	Quantity
6	Kit Seal dozer 998/11282	1	AVAILABLE TO ORDER	$62.47	Quantity

Showing 1 to 5 of 5 parts

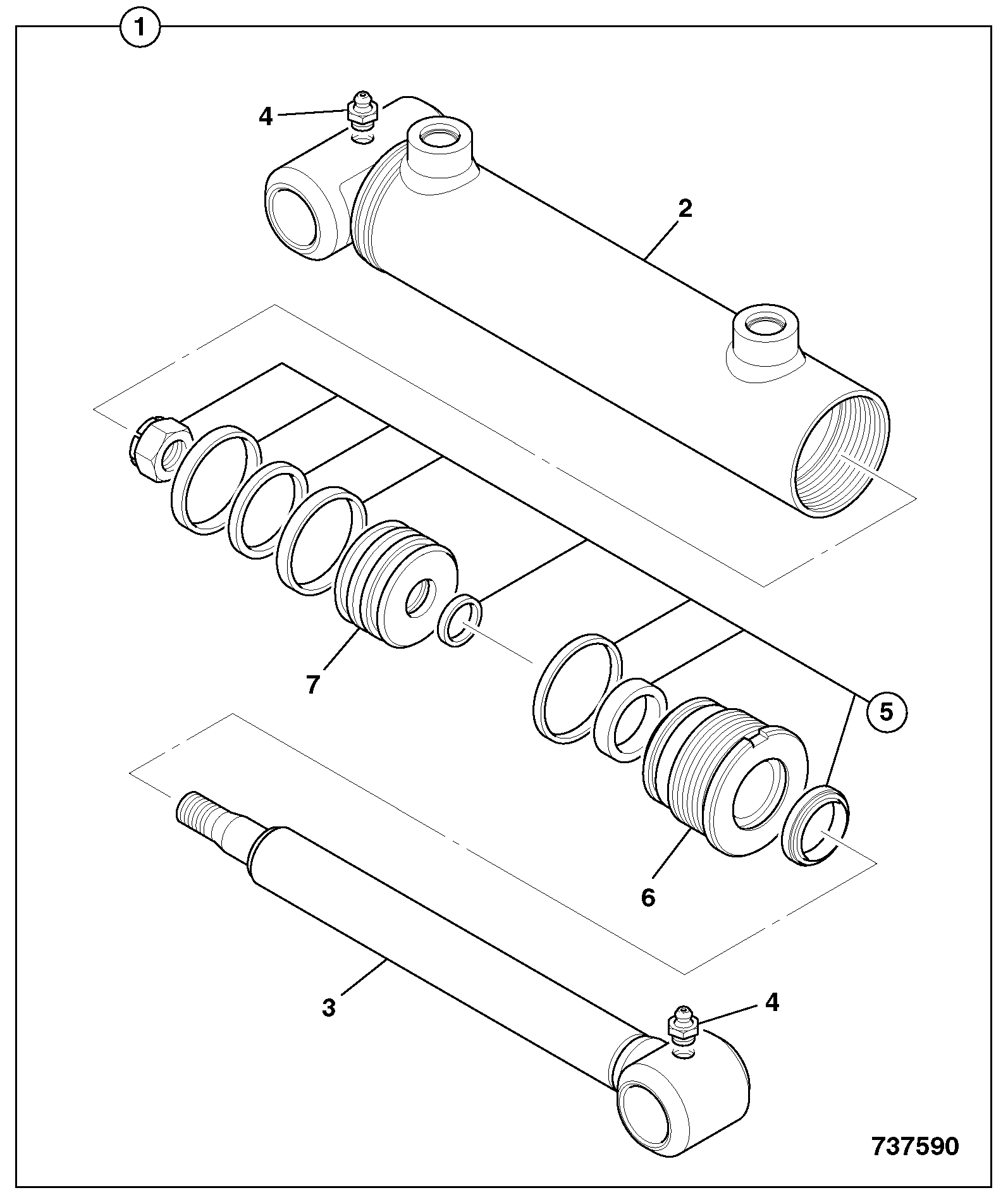

DIAG-E4-7-2-398241 E4-7-2 RAM, EXTENSION MICRO
View Diagram

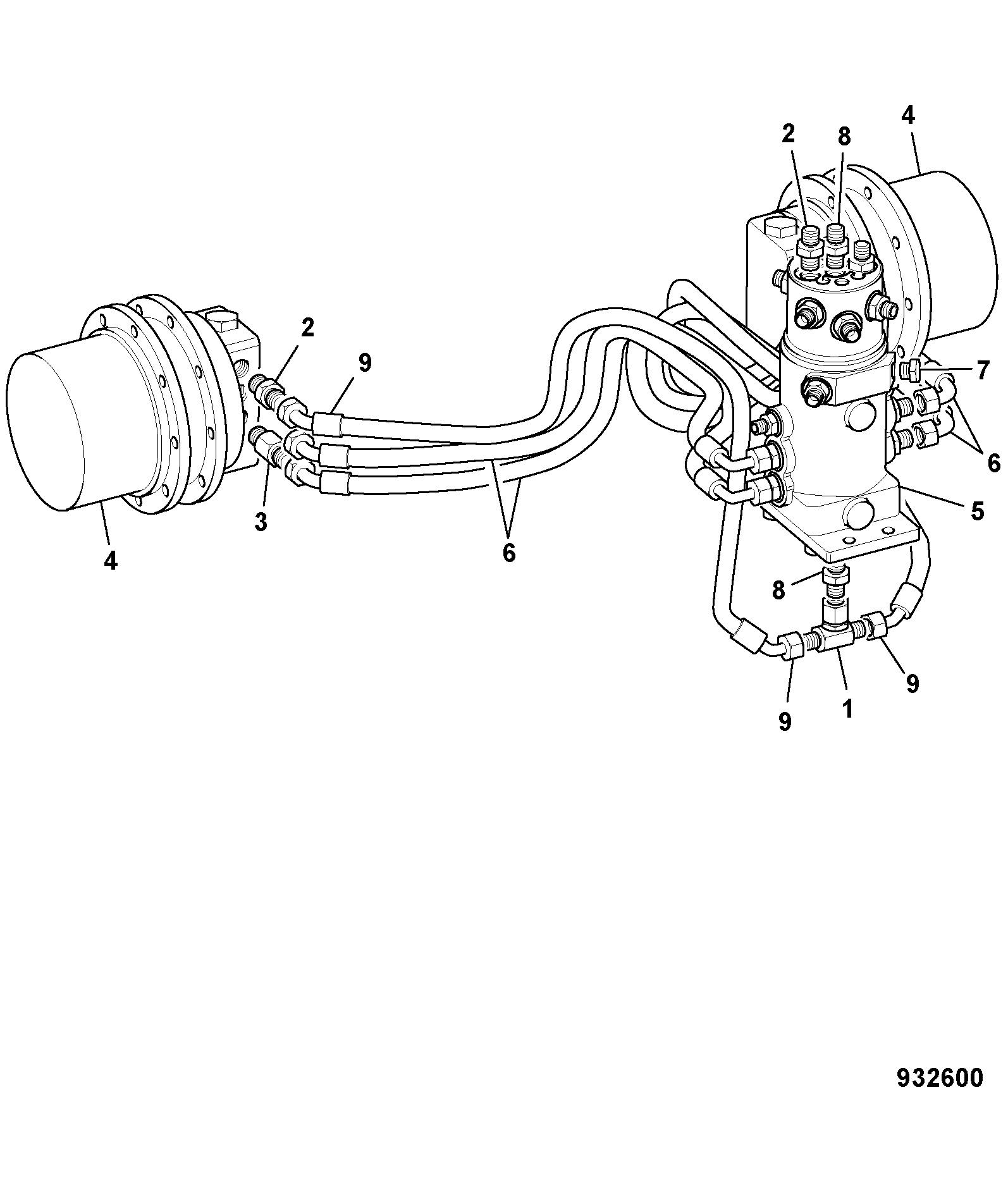

DIAG-E6-1-1-398241 E6-1-1 TRACK MOTOR SINGLE SPEED ASSEMBLY
