Scroll to zoom Click a part # to view details

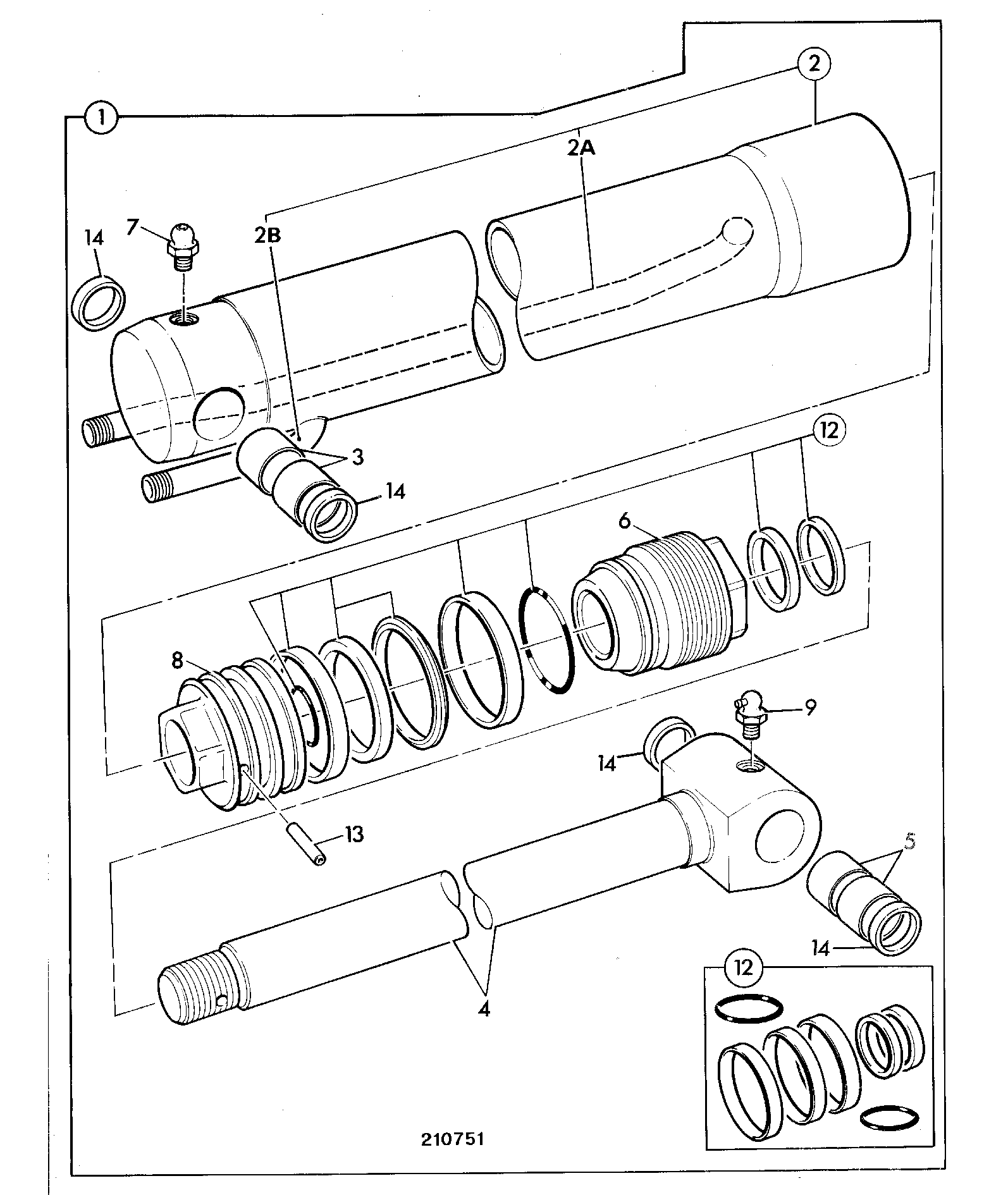

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | WA CYL 213 EXT DIPPER 556/70258 | 1 | $2,186.98 | |||
| 2A | PIPE RS 1/2BSP X 1254 658/01443 | 1 | $213.84 | |||
| 2B | PIPE FEED SHORT 658/01117 | 1 | $139.47 | |||
| 4 | PISTON ROD 590/40258 | 1 | $852.13 | |||
| 8 | P/HEAD 595/10016P 595/10027 | 1 | $83.43 | |||
| 12 | SEAL KIT 70x40 FRJ 991/00100 991/10152 | 1 | $60.50 | |||
| 13 | DOWEL 6*20Mmm (KANBAN) 826/01182 | 1 | $0.00 |
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-E4-7-14-395111 E4-7-14 RAM, BUCKET EXTRADIG DIPPER
View Diagram -

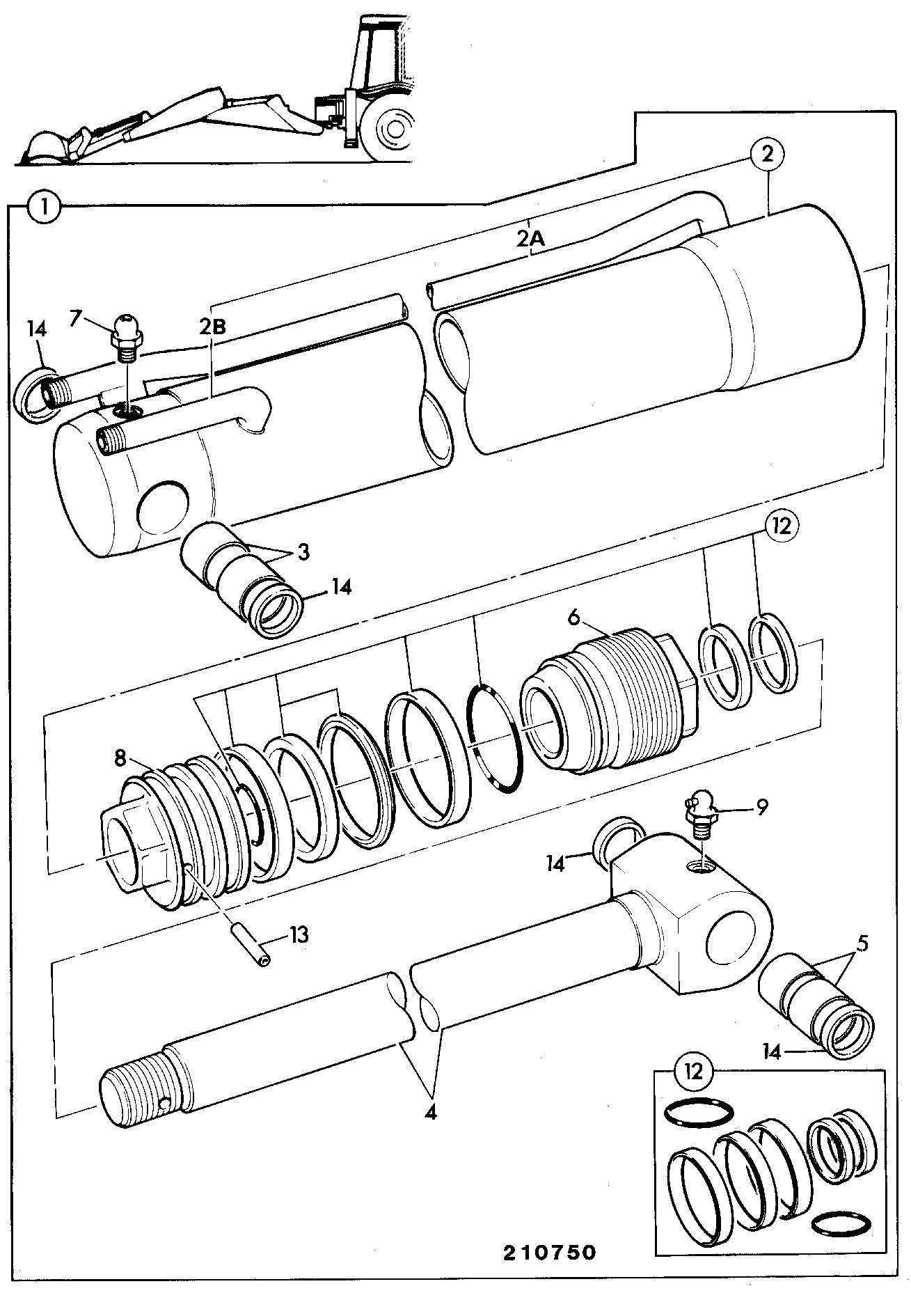

DIAG-E4-7-12-395111-11215634 E4-7-12 RAM, BUCKET EXTRADIG DIPPER
View Diagram -
DIAG-E4-7-5-395111 E4-7-5 RAM, BUCKET MONO DIPPER
View Diagram
