Scroll to zoom Click a part # to view details

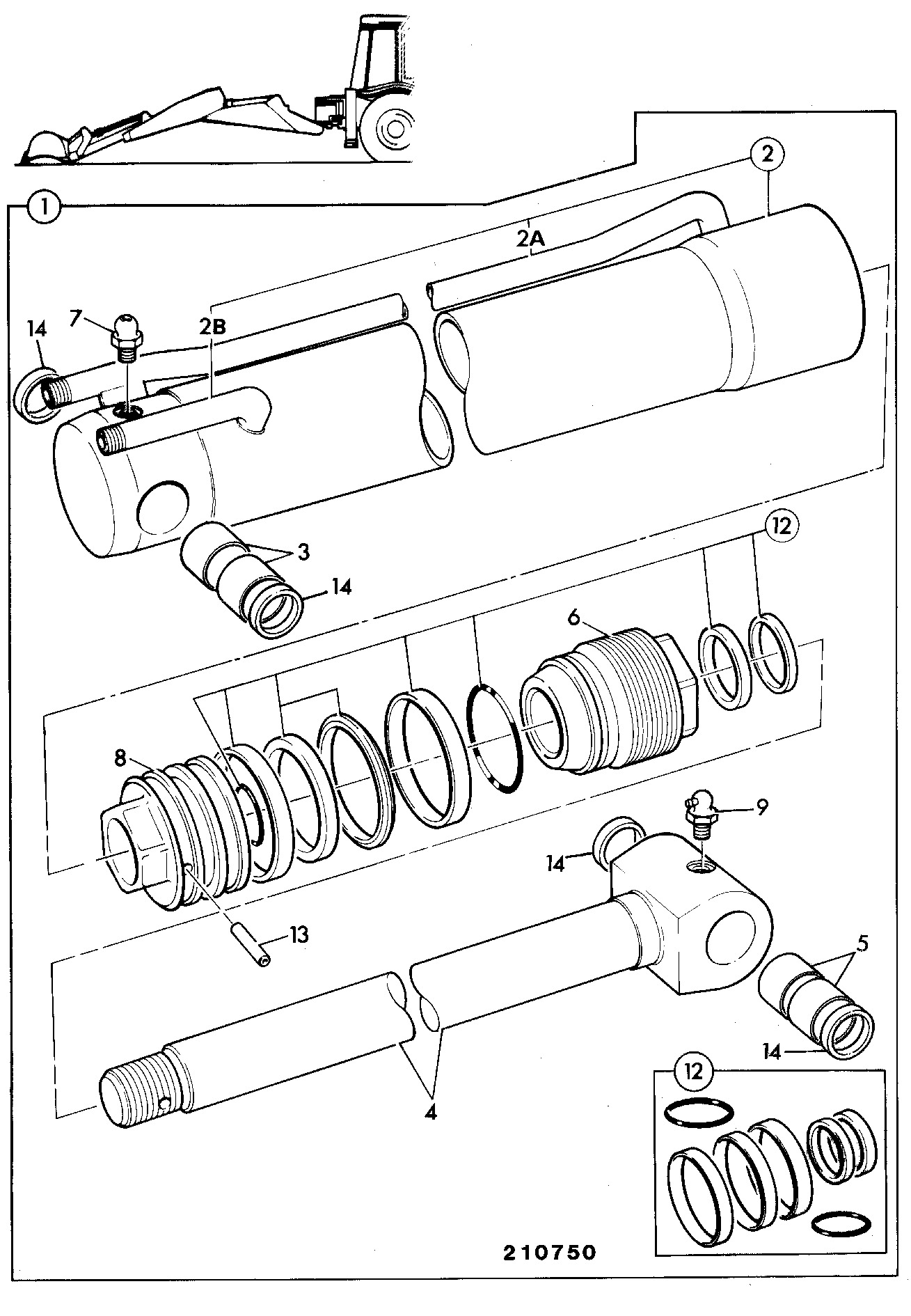

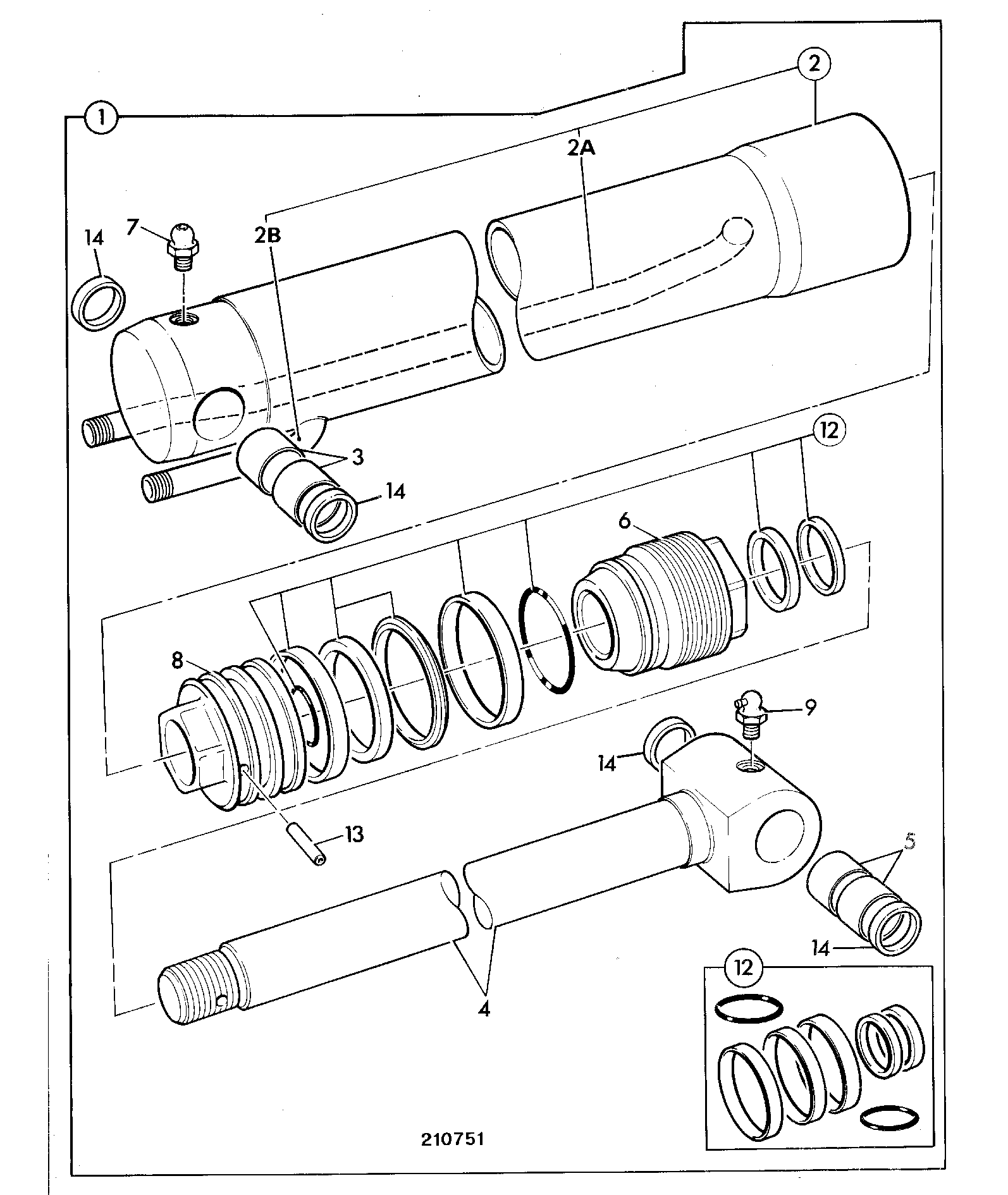

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | LF EXP 17' FIX CROWD 559/60145 559/60174 | 1 | $1,486.87 | |||
| 2 | WA CYLINDER 100 x 1012 559/70173 559/70277 | 1 | $935.05 | |||
| 3 | BUSH 809/00125 809/00125A | 1 | $56.41 | |||
| 4 | WA PISTON ROD 60X1072.5 590/40121 | 1 | $3,336.33 | |||
| 5 | BEARING 809/00128 | 1 | $84.99 | |||
| 6 | ASSY END CAP (594/00053) 594/14031 | 1 | $286.36 | |||
| 7 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 8 | P/HEAD 595/10057P 595/10040 | 1 | $328.95 | |||
| 9 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 12 | SCREW 991/00145 991/00145P | 1 | $89.30 | |||
| 13 | DOWEL 8x25LG(KANBAN) 826/01179 | 1 | $7.14 | |||
| 14 | PIVOT PIN SEAL 45-55-5 813/00425 | 1 | $13.48 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E4-7-6-395127 E4-7-6 RAM, BUCKET MONO DIPPER 14'
View Diagram -
DIAG-E4-6-13-395127 E4-6-13 RAM, DIPPER HEAVY LIFT-USA 110MM CYL X 60MM ROD DEEP PROFILE BUCKET
View Diagram -
DIAG-E4-7-15-395127 E4-7-15 RAM BUCKET EXTRADIG DIPPER
View Diagram
