Scroll to zoom Click a part # to view details

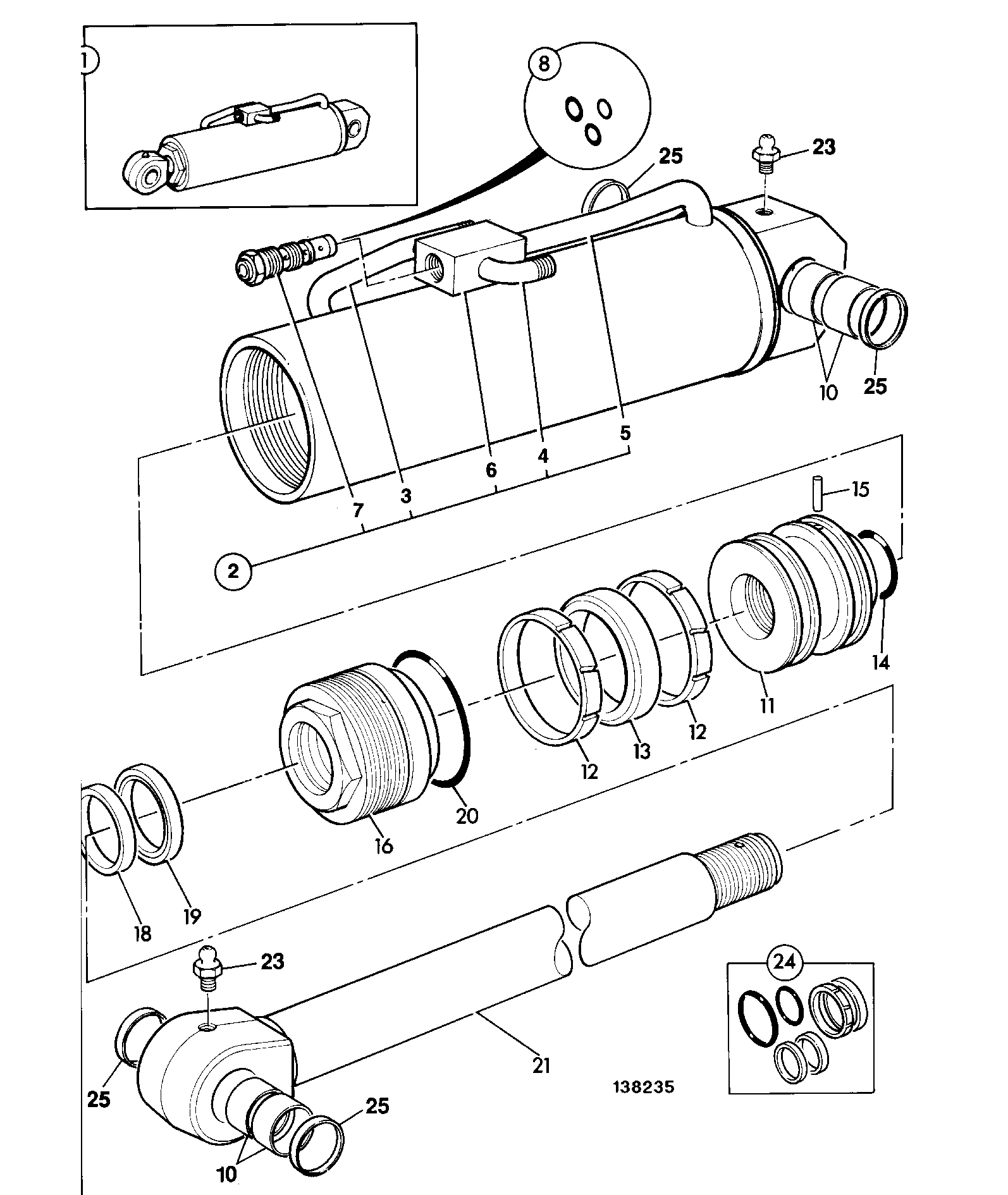

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BEARING 63.6-76.2-100 808/00399 809/04003 | 1 | $202.12 | ||||
| 7 | CHECK VALVE (E6B060Z - 310 - N409) 25/966100 | 1 | $100.00 | |||
| 8 | KIT-SEAL 25/944001 | 1 | $79.48 | |||
| 10 | SPRING STEEL BUSH 1211/0021 | 1 | $93.25 | |||
| 11 | P/HEAD 595/10056P 595/27721 595/10056 | 1 | $1,153.30 | |||
| 12 | WEAR RING 140-135 x 15 2411/7924 | 1 | $34.78 | |||
| 13 | PISTON SEAL 140-119 x 10 2411/1147 | 1 | $41.23 | |||
| 14 | O RING.75X5.0 2302/0309 | 1 | $53.87 | |||
| 15 | DOWEL.45MM LONG(KANBAN) 826/01184 | 1 | $33.70 | |||
| 16 | END CAP ASSY.(594/00049 sealed) 594/14021 | 1 | $1,523.41 | |||
| 18 | Seal Wiper 75MM 2411/8611 2411/8611P | 1 | $12.46 | |||
| 19 | ROD SEAL.75X95X15.1.P38 2411/0511 | 1 | $59.98 | |||
| 20 | O RING130 X 5.0 2302/0320 | 1 | $81.14 | |||
| 21 | WA ROD + GUARD(590/40196) 590/40256 | 1 | $1,973.68 | |||
| 23 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 24 | UNIVERSAL SERVICE SEALKIT 991/20029 | 1 | $304.50 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

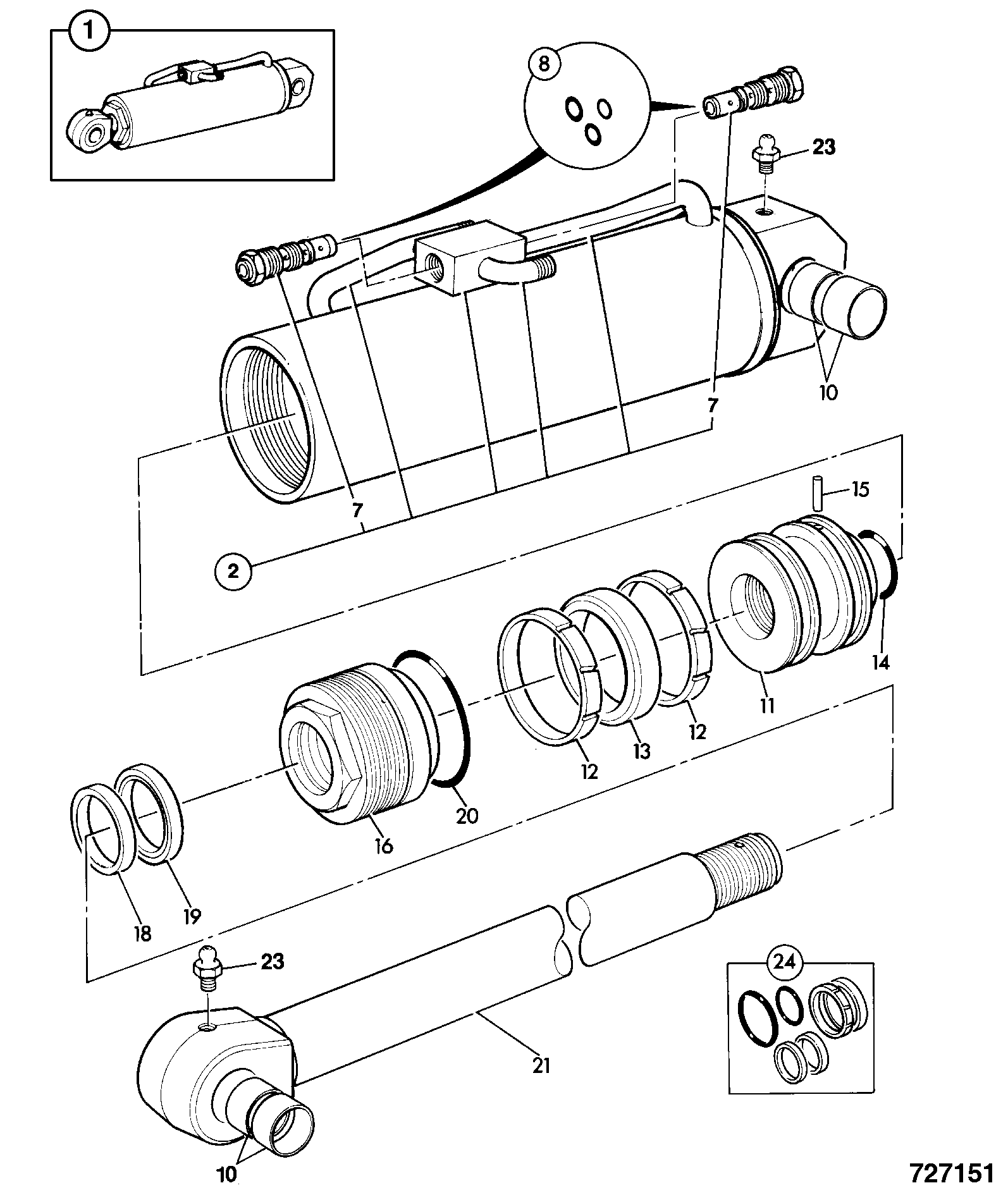

DIAG-E4-7-3-402250 E4-7-3 RAM,TILT (PERSONNEL PLATFORM)
View Diagram -
DIAG-E4-7-5-402250 E4-7-5 RAM,TILT
View Diagram -
DIAG-E4-7-9-402250 E4-7-9 RAM,TILT PERSONNEL PLTAFORM
View Diagram
