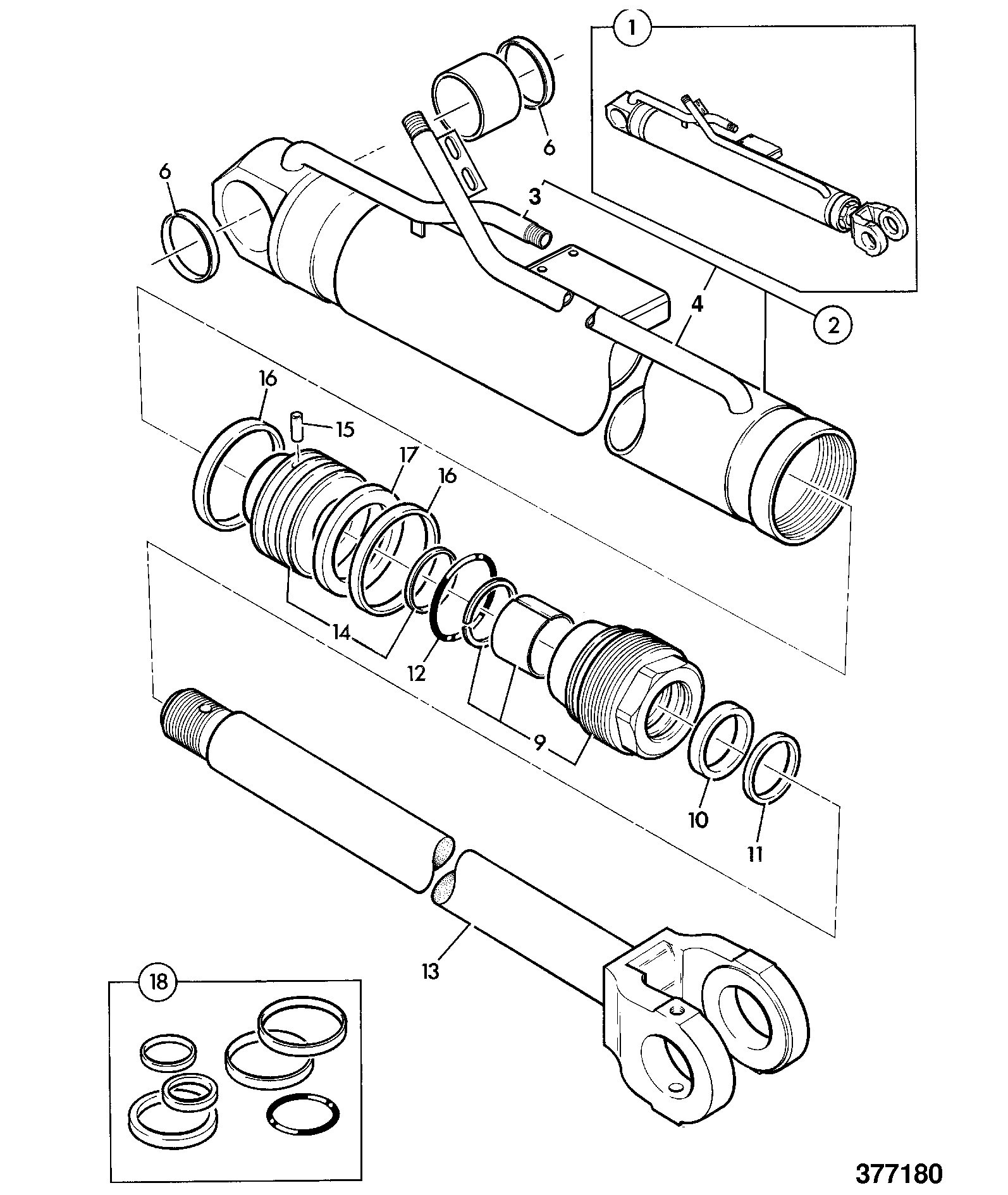

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Ram shovel, HBCV 559/60159 | 1 | $7,334.31 | |||
| 2 | Cylinder 559/70159 | 1 | $4,225.14 | |||
| 5 | LINER BRG. 411/416 809/00112 | 1 | $128.53 | |||
| 6 | PIVOT PIN SEAL 60-50-6 813/00413 | 1 | $56.47 | |||
| 9 | ASSY END CAP (594/00053) 594/14031 | 1 | $286.36 | |||
| 10 | ROD SEAL.50x65x11.4 2411/0506 | 1 | $33.11 | |||
| 11 | Seal Wiper 60MM 2411/8608 2411/8608P | 1 | $16.90 | |||
| 12 | O RING 90.0 X 5 2302/0312 | 1 | $6.87 | |||
| 13 | CO2 ROD 416 SHOVEL 60 X 1528 590/40185 | 1 | $999.62 | |||
| 14 | P/HEAD ASSY 100*60 (595/10040) 595/27701 | 1 | $568.26 | |||
| 15 | DOWEL 8x25LG(KANBAN) 826/01179 | 1 | $7.14 | |||
| 16 | RING-WEAR 2411/7919 2411/7919A | 1 | $8.36 | |||
| 17 | PISTON SEAL 100 x 7.8 2411/1145 | 1 | $21.31 | |||
| 18 | SPACER 561/90012 | 1 | $88.20 | |||
| 19 | 60x5 O-RING 2302/0306 | 1 | $20.19 | |||
Showing 1 to 15 of 15 parts
