Scroll to zoom Click a part # to view details

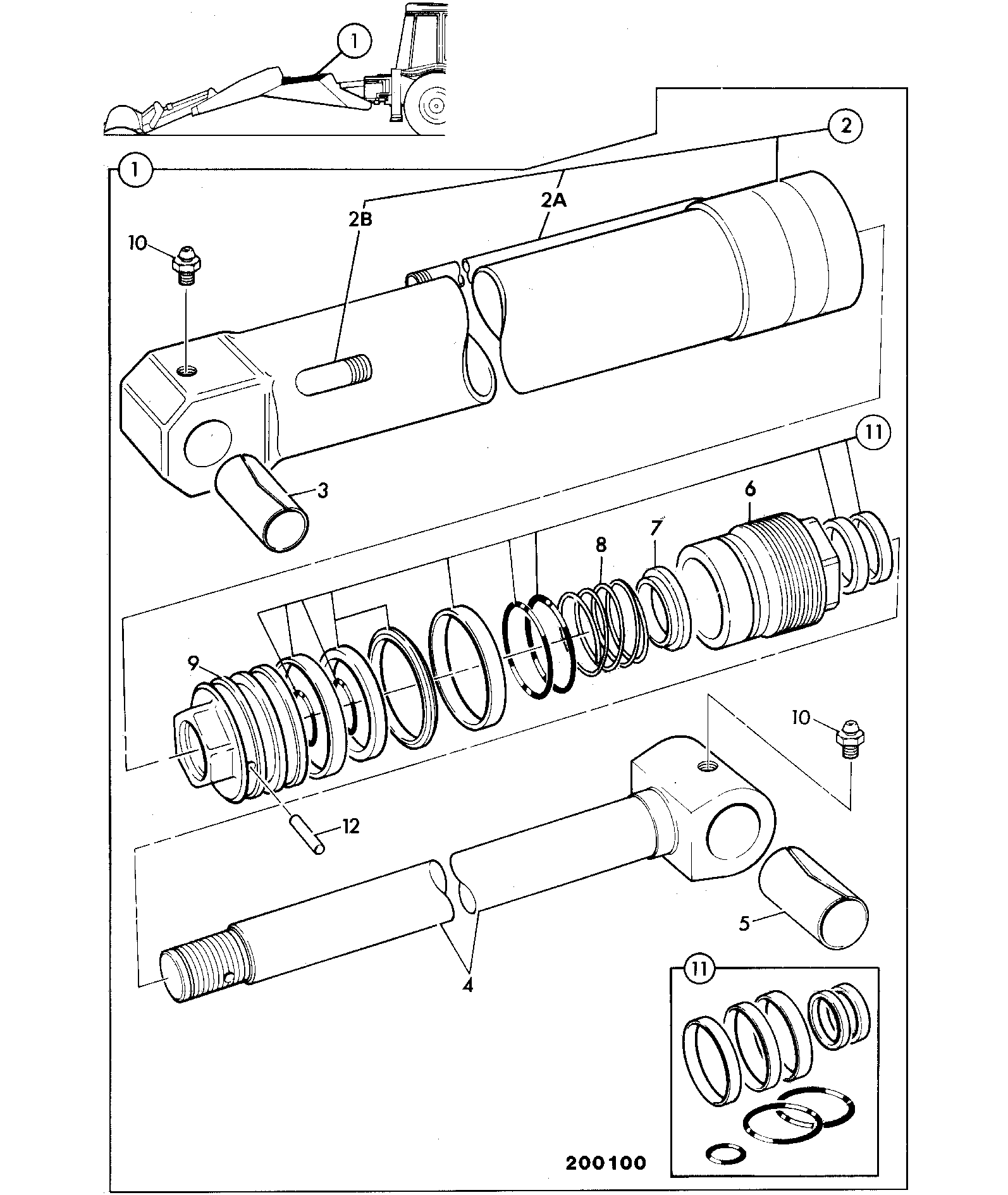

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RAM ASSY -DIPPER 559/60009 559/60019 | 1 | $4,218.43 | |||
| 2 | WA CYLINDER 100X1047 559/70019 | 1 | $2,764.81 | |||
| 2A | PIPE ROD SIDE 658/00938 | 1 | $135.90 | |||
| 2B | PIPE 656/00553 | 1 | $91.89 | |||
| 4 | WA PISTON ROD 60X1072.5 590/40121 | 1 | $3,336.33 | |||
| 6 | 'BUSHED END CAP 100x60 ED (332/G8463 594/14025 | 1 | $510.93 | |||
| 7 | RESTRICTOR (60) 559/00105 333/F6186 | 1 | $137.97 | |||
| 8 | SPRING(KANBAN) 559/00104 | 1 | $11.66 | |||
| 9 | P/HEAD 595/10057 | 1 | $242.55 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 11 | SCREW 991/00145 991/00145P | 1 | $89.30 | |||
| 12 | DOWEL 8x25LG(KANBAN) 826/01179 | 1 | $7.14 | |||
| 13 | PIVOT PIN SEAL 45-55-5 813/00425 | 1 | $13.48 | |||
| 14 | PIVOT PIN SEAL 60-50-5 813/00426 | 1 | $7.81 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-E4-6-6-395103 E4-6-6 RAM, DIPPER STANDARD
View Diagram -
DIAG-E4-6-9-395103-11188104 E4-6-9 RAM, DIPPER, STANDAR D USA BUILD
View Diagram -
DIAG-E4-6-18-395103 E4-6-18 RAM, DIPPER, STANDAR D REST OF WORLD
View Diagram
