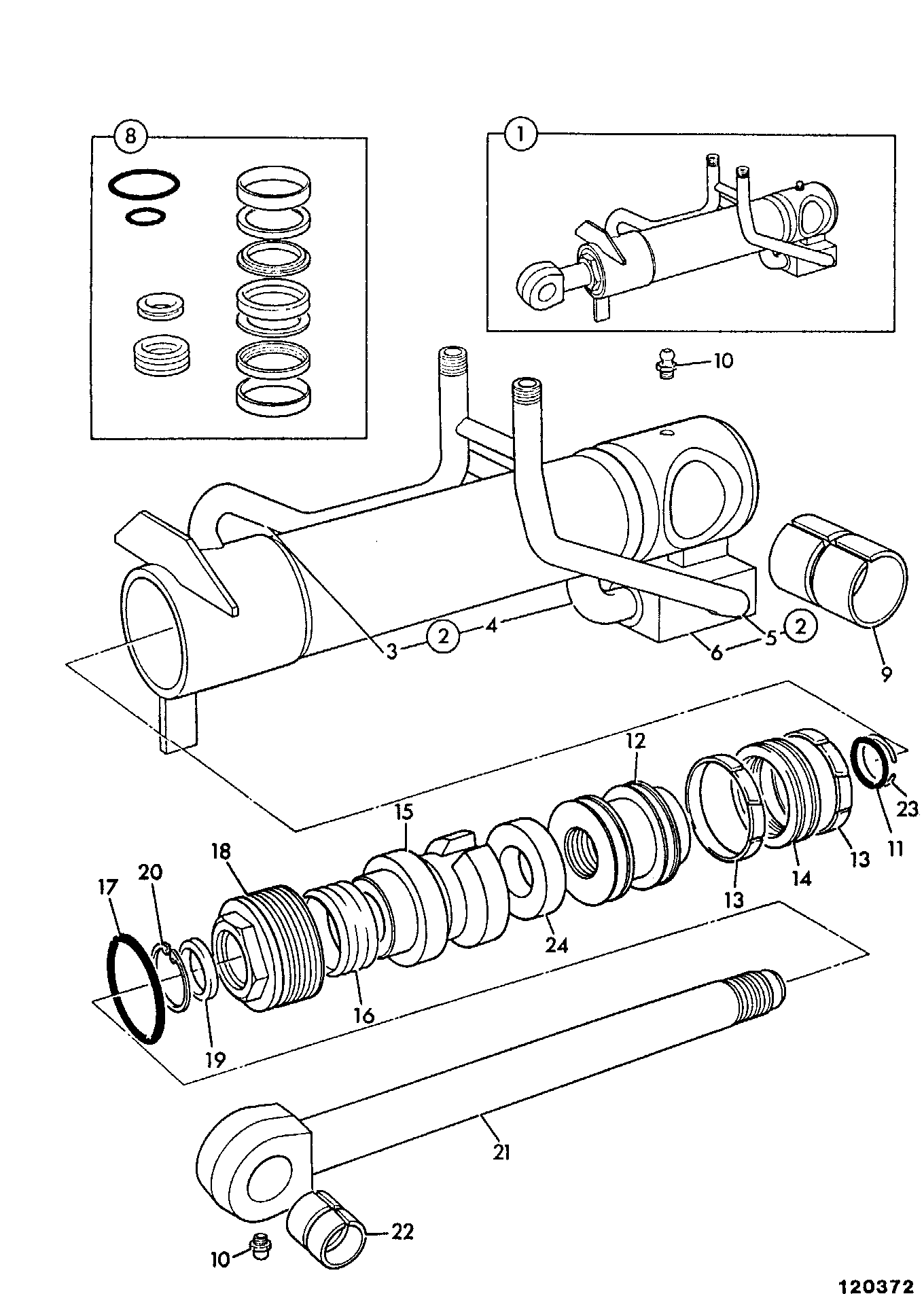

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 4 | PIPE 658/01242 | 1 | $113.45 | |||
| 6 | CHECK VALVE BODY(ENB3) 928/50021 332/F8653 | 1 | $151.32 | |||
| 8 | Kit Seal 991/00105 991/00105P | 1 | $170.68 | |||
| 9 | BUSH (P60-90) 1209/0019 | 1 | $51.73 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 11 | O RING. 50.0 x 3 2302/0155 | 1 | $30.50 | |||
| 12 | P/HEAD 595/10016P 595/10054 | 1 | $240.66 | |||
| 13 | WEAR RING 70 x 6.8 2411/7912 | 1 | $11.42 | |||
| 14 | PISTON SEAL 70 x 6 2411/1131 | 1 | $36.88 | |||
| 17 | O RING 64.0 X 3 - BAGS OF 10 2302/0108 | 1 | $16.31 | |||
| 19 | Seal Wiper 50MM 2411/8606 2411/8606P | 1 | $3.63 | |||
| 20 | ROD SEAL.50X60X8.0 P38 2411/0526 | 1 | $10.23 | |||
| 21 | PISTON ROD 590/40109 | 1 | $1,855.82 | |||
| 22 | SPRING BUSH 1208/0015 | 1 | $34.30 | |||
| 23 | DOWEL 6*20Mmm (KANBAN) 826/01182 | 1 | $8.07 | |||
| 24 | SPACER 556/90005 | 1 | $356.67 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-E4-6-1-400183 E4-6-1 RAM, EXTENSION
View Diagram -
DIAG-E4-4-1-400183 E4-4-1 RAM, DISPLACEMENT
View Diagram -
DIAG-E4-8-1-400183 E4-8-1 RAM, SWAY
View Diagram
