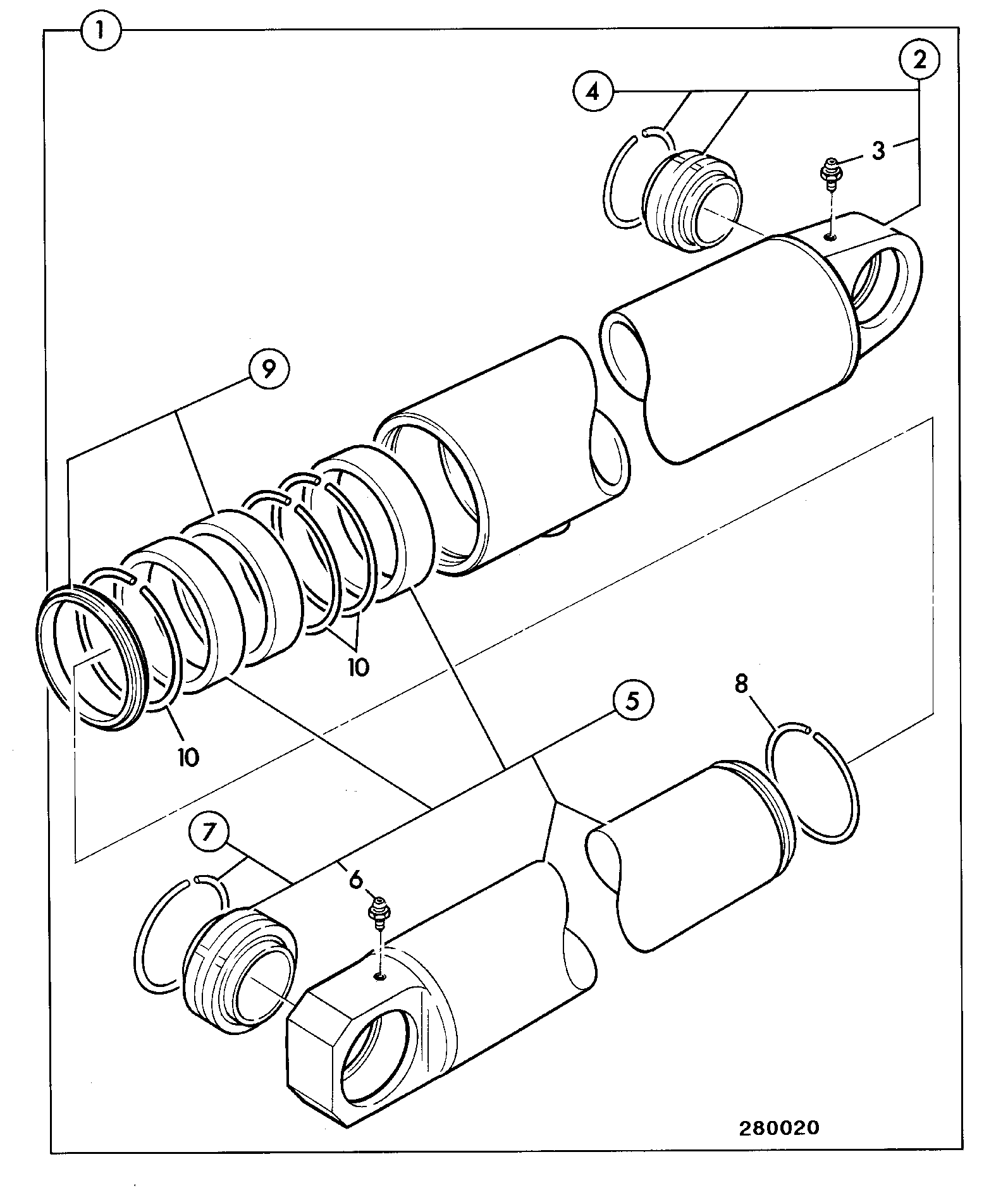

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RAM ASSEMBLY 4WS 331/13990 | 1 | $15,336.06 | |||
| 2 | Cylinder 551/90134 | 1 | $4,983.89 | |||
| 3 | PLUG 478/19961 | 1 | $17.00 | |||
| 4 | WASHER SEAL 478/19962 | 1 | $17.00 | |||
| 5 | PLUG 478/19963 | 1 | $18.23 | |||
| 6 | WASHER SEAL 478/19964 | 1 | $16.76 | |||
| 7 | SWITCH 716/30087 701/60078 | 1 | $330.47 | |||
| 8 | WASHER SEAL 478/19966 | 1 | $98.75 | |||
| 9 | BALL 478/19967 | 1 | $18.23 | |||
| 10 | ROD -PISTON 551/90135 | 1 | $1,814.97 | |||
| 11 | TUBE TUBE, PISTON 551/90128 | 1 | $1,240.66 | |||
| 12 | BALL 478/19971 | 1 | $18.23 | |||
| 13 | Seal Kit 991/10116 336/F0399 | 1 | $708.60 | |||
| 14 | NUT RING 478/19972 | 1 | $284.30 | |||
| 15 | Spacer 551/90130 | 1 | $38.54 | |||
| 16 | RING SNAP 478/19974 | 1 | $18.23 | |||
| 17 | SPRING 478/19975 | 1 | $108.95 | |||
| 18 | BEARING 551/90131 | 1 | $465.75 | |||
| 19 | Snap Ring 478/19977 336/F0389 | 1 | $18.23 | |||
| 20 | Ring, wear 551/90132 | 1 | $284.30 | |||
| 21 | RING CENTRAL 478/19979 | 1 | $257.23 | |||
| 22 | RING LOCKING 478/19980 | 1 | $39.40 | |||
| 23 | Ring Locking 478/19981 336/F0393 | 1 | $92.73 | |||
| 24 | Head Piston 551/90133 | 1 | $305.27 | |||
| 25 | BOLT M16x80 1316/3718Z | 1 | $13.16 | |||
| 26 | LOCKNUT M20 826/01603 | 1 | $10.34 | |||
| 27 | SPACER-M16X25 LONG 829/00318 | 1 | $32.23 | |||
Showing 1 to 27 of 27 parts
