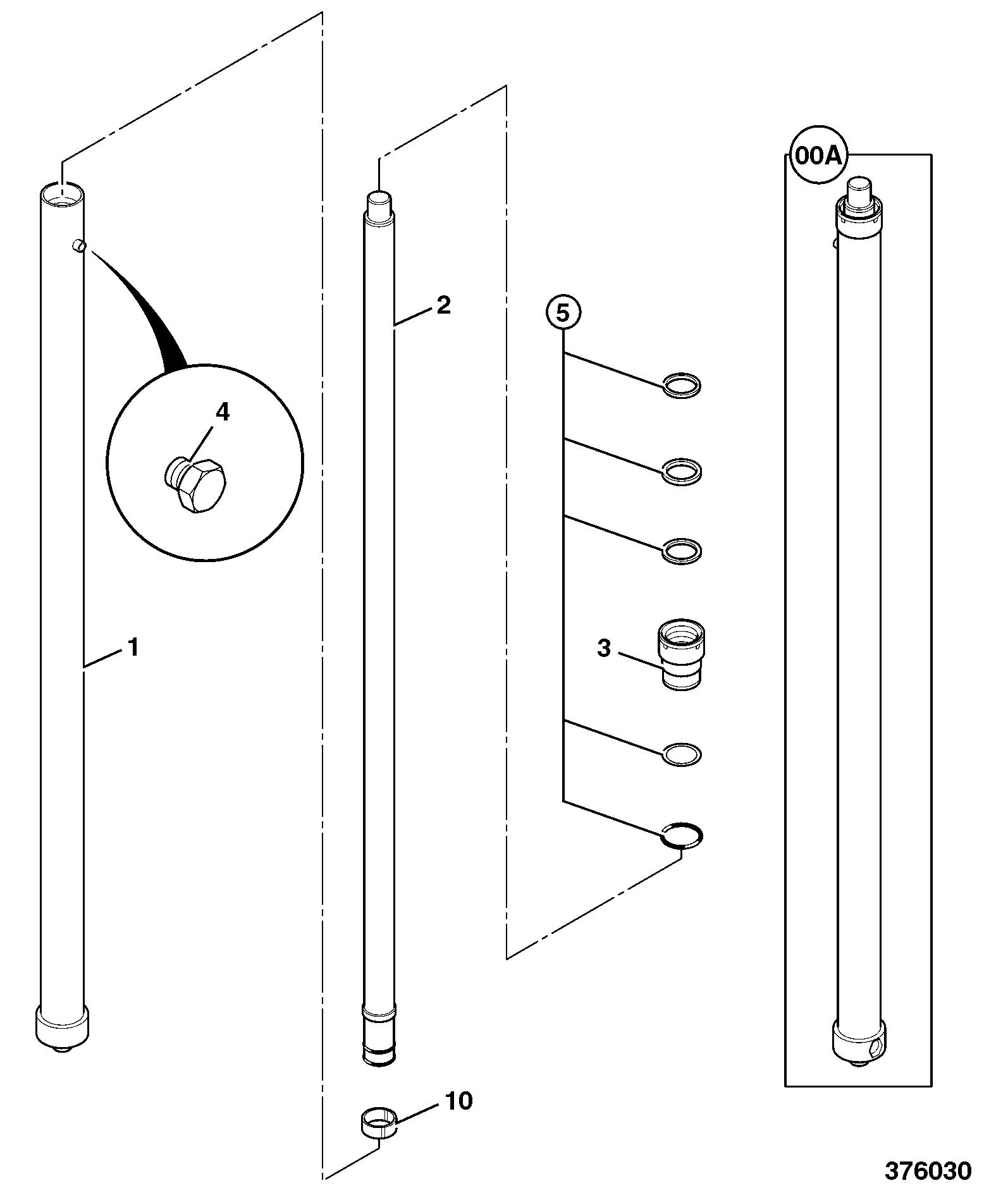

E4-53-1 RAM, LIFT 5.49M, TRIPLEX 940 2/4 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Ram 903/20305	1	AVAILABLE TO ORDER	$24,384.09	Quantity
2	Rod 903/20299	1	AVAILABLE TO ORDER	$2,768.42	Quantity
3	Bearing gland nut 903/20300	1	AVAILABLE TO ORDER	$1,650.55	Quantity
4	PLUG 903/20297	1	AVAILABLE TO ORDER	$61.98	Quantity
5	SEAL KIT 903/20301	1	AVAILABLE TO ORDER	$454.81	Quantity
10	Ring wear 903/20302	1	AVAILABLE TO ORDER	$589.23	Quantity

Showing 1 to 6 of 6 parts
