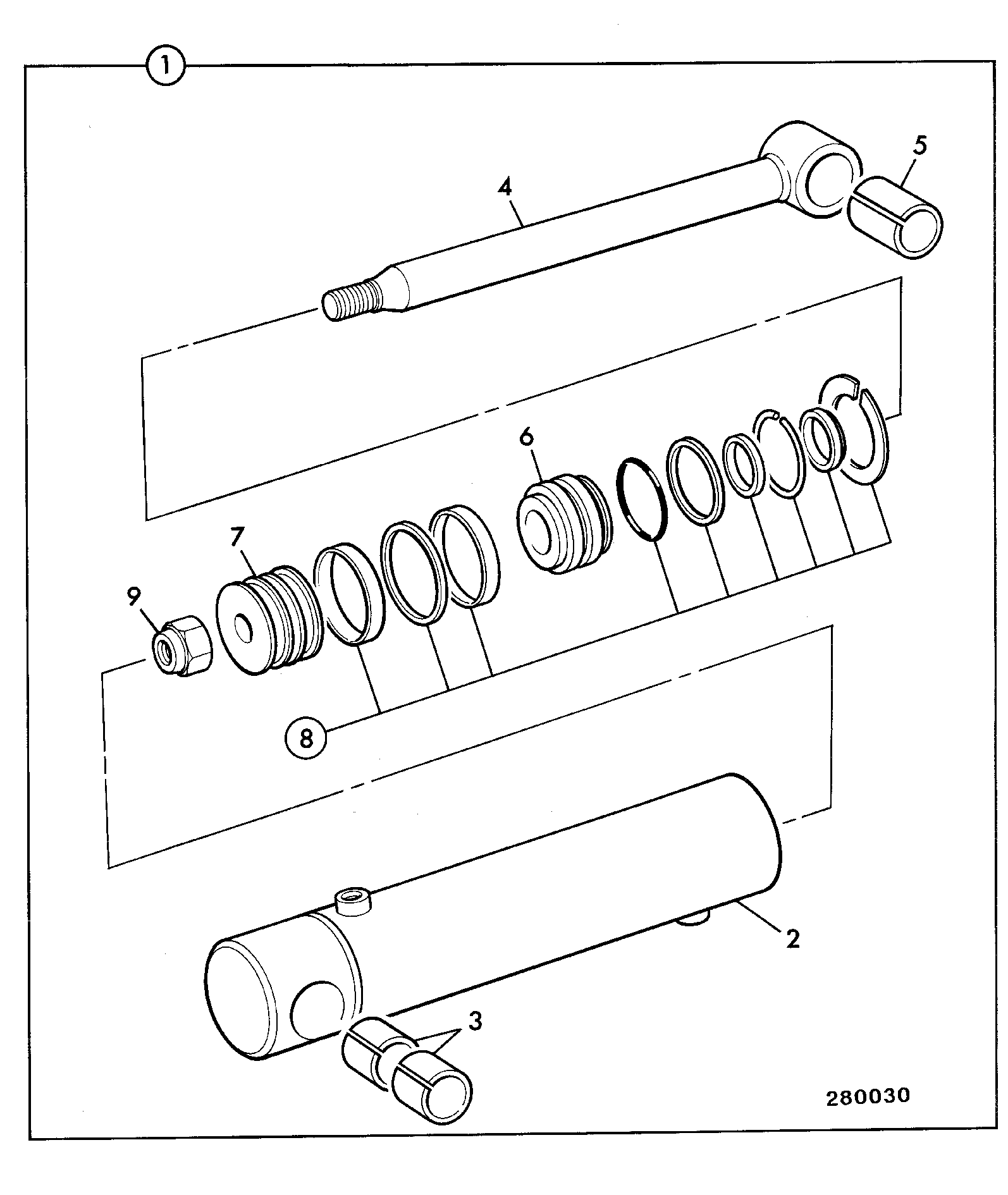

E4-5-2 RAM REAR HITCH, 80MM Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	80mm HYDRAULIC CYLINDER 480/14300 903/20606	1	AVAILABLE TO ORDER	$2,722.06	Quantity
4	BEARING ASSY 477/01095	1	AVAILABLE TO ORDER	$229.04	Quantity
5	KIT-SEAL 80MM LIFT 477/01030	1	2 IN STOCK	$127.47	Quantity
7	BEARING ASSEMBLY 477/01096	1	AVAILABLE TO ORDER	$71.61	Quantity

Showing 1 to 4 of 4 parts

DIAG-E4-5-1-393522 E4-5-1 RAM REAR HITCH, 75MM
View Diagram
DIAG-E4-5-3-393522 E4-5-3 RAM REAR HITCH, 75MM
View Diagram
DIAG-E4-4-2-393522 E4-4-2 RAM FRONT HITCH, 60MM
View Diagram

Previous Assembly DIAG-E4-5-1-393522 E4-5-1 RAM REAR HITCH, 75MM Next Assembly DIAG-E4-5-3-393522 E4-5-3 RAM REAR HITCH, 75MM
