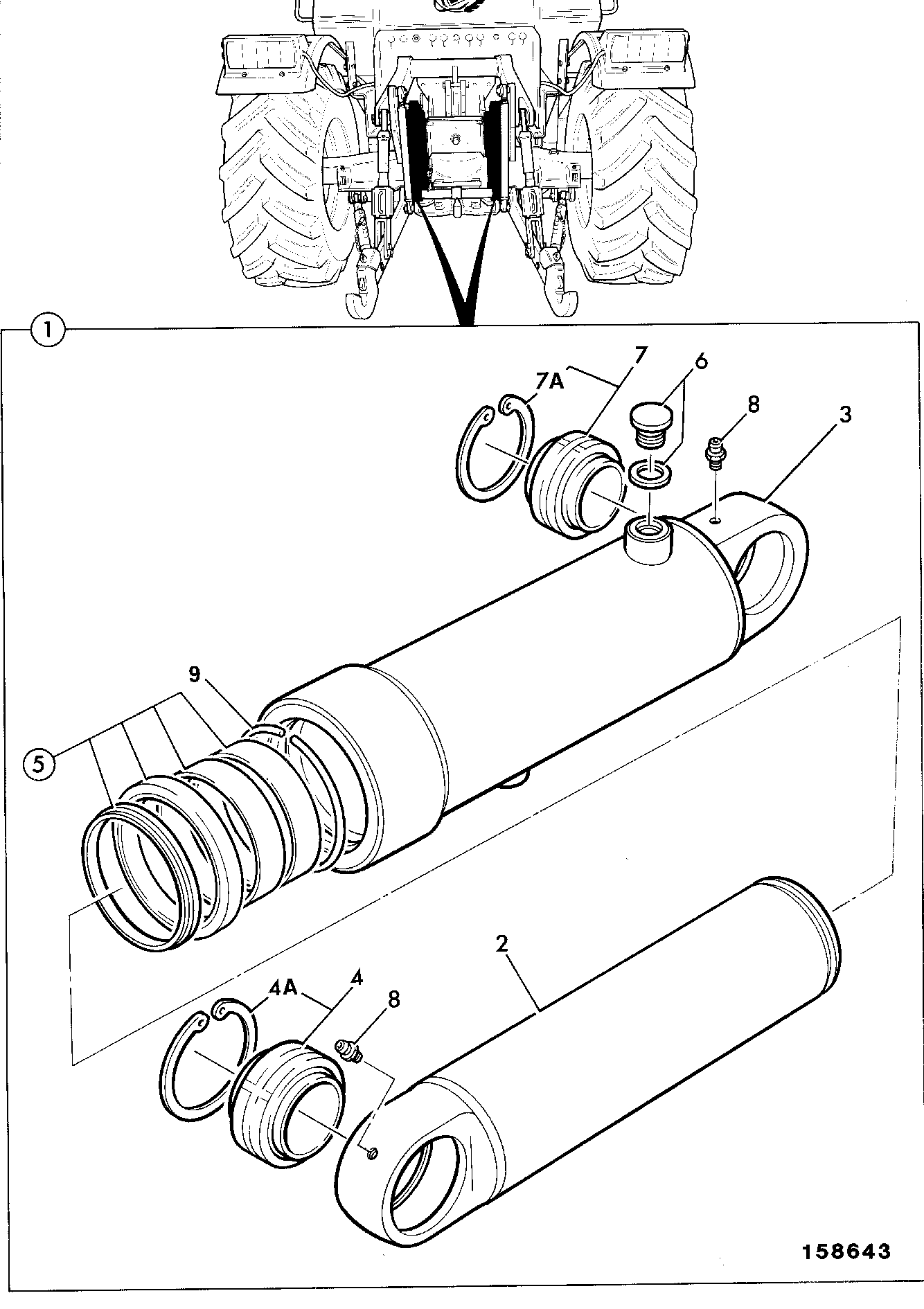

E4-4-3 RAM REAR HITCH 85MM DIAMETER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Cylinder 477/49893	1	AVAILABLE TO ORDER	$491.22	Quantity
3	NIPPLE GREASE 476/09805	1	AVAILABLE TO ORDER	$11.29	Quantity
5	ROD PISTON 477/49896	1	AVAILABLE TO ORDER	$592.37	Quantity
8	RING 476/38304	1	AVAILABLE TO ORDER	$34.98	Quantity
9	KIT-SEAL 477/49895	1	AVAILABLE TO ORDER	$400.59	Quantity
10	RING SNAP 477/49894	1	AVAILABLE TO ORDER	$26.23	Quantity

Showing 1 to 6 of 6 parts
