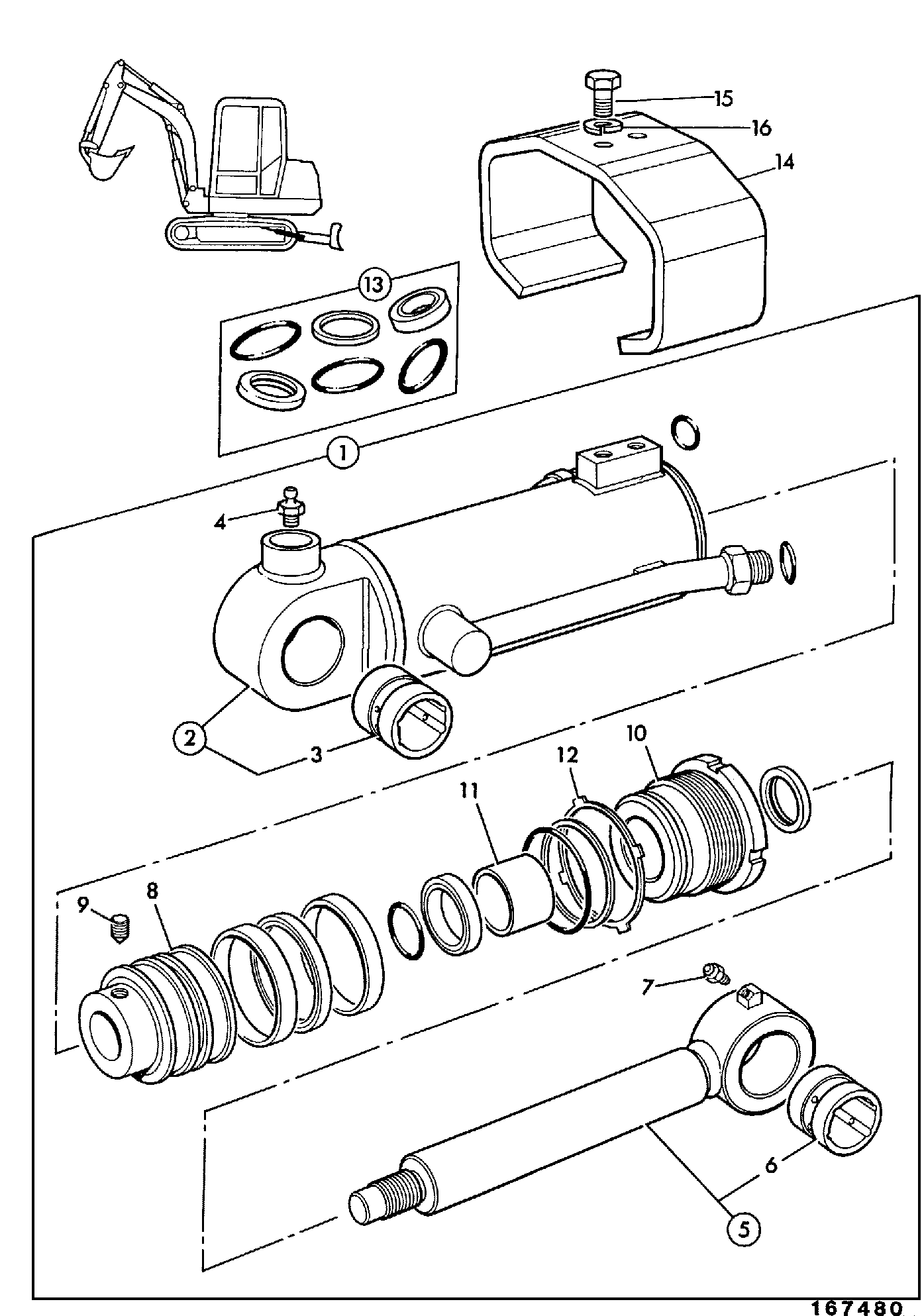

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | BUSHING 232/22502 | 1 | $78.91 | |||
| 4 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 7 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 8 | PISTON 232/08505 | 1 | $237.76 | |||
| 9 | SCREW SET 232/08506 | 1 | $8.88 | |||
| 10 | BEARING GLAND 232/08507 | 1 | $1,144.29 | |||
| 11 | BUSHING 232/08508 | 1 | $47.23 | |||
| 14 | END CAP 232/08511 | 1 | $8.44 | |||
| 15 | KIT-SEAL RAM 232/08512 | 1 | $147.89 | |||
| 16 | GUARD 232/15600 | 1 | $259.42 | |||
| 17 | PLATE 232/02009 | 1 | $66.45 | |||
| 18 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 19 | SPRING WASHER M10 823/00416Z | 1 | $0.15 | |||
| 20 | PLATE PROTECTION 231/02004 | 1 | $30.06 | |||
| 21 | SCREW BUTTON HEAD 826/01214 | 1 | $12.79 | |||
| 22 | RUBBER WASHER 823/00424 | 1 | $1.64 | |||
| 23 | (W) (P) WASHER, 5/8 MEDIUM 1411/0007Z 1411/0007D | 1 | $1.49 | |||
| 24 | PIN SPLIT 3/16X2 2103/1113 | 1 | $1.26 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-E4-2-20-398017 E4-2-20 RAM, DOZER
View Diagram -

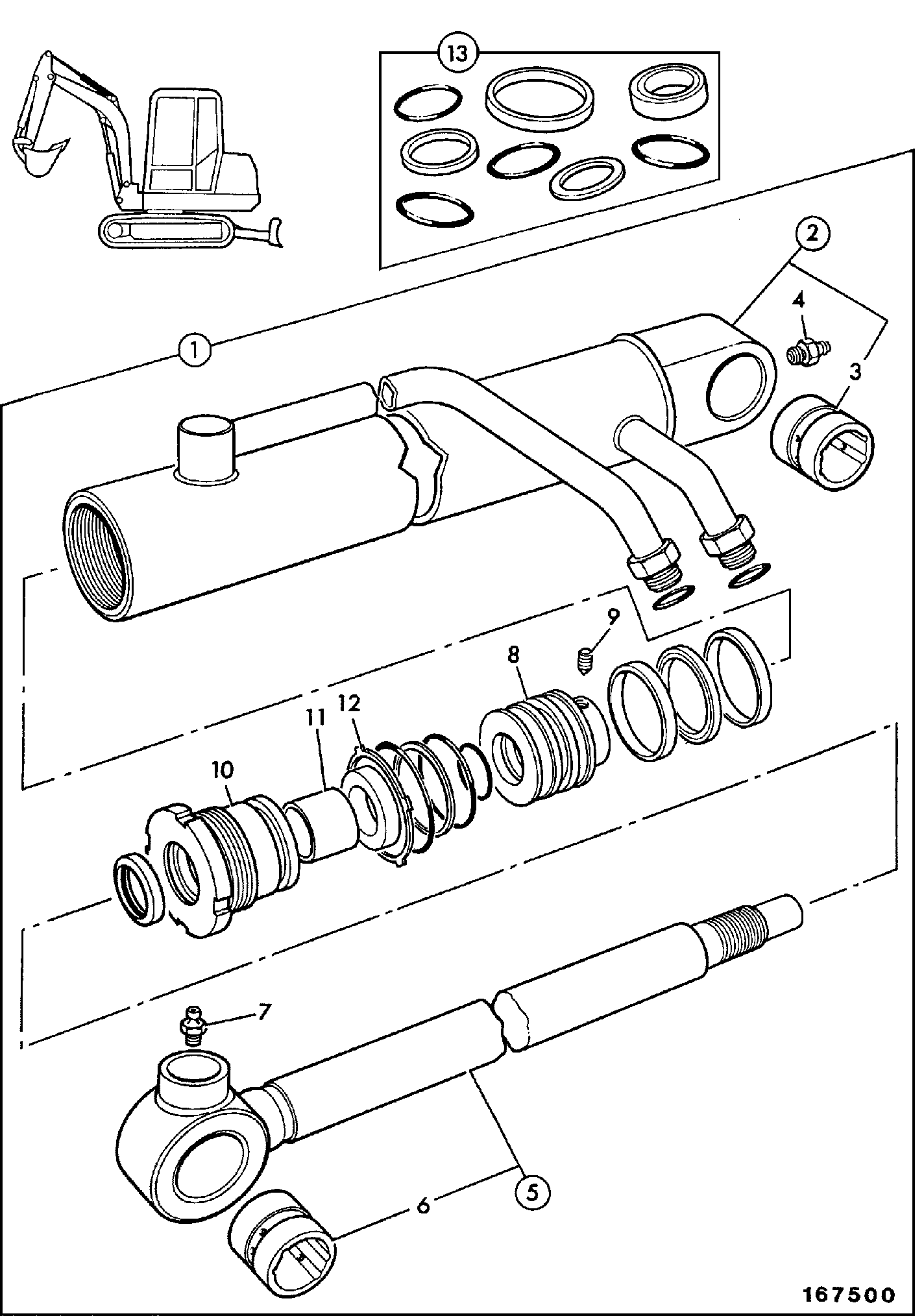

DIAG-E4-4-20-398017 E4-4-20 RAM DIPPER
View Diagram -

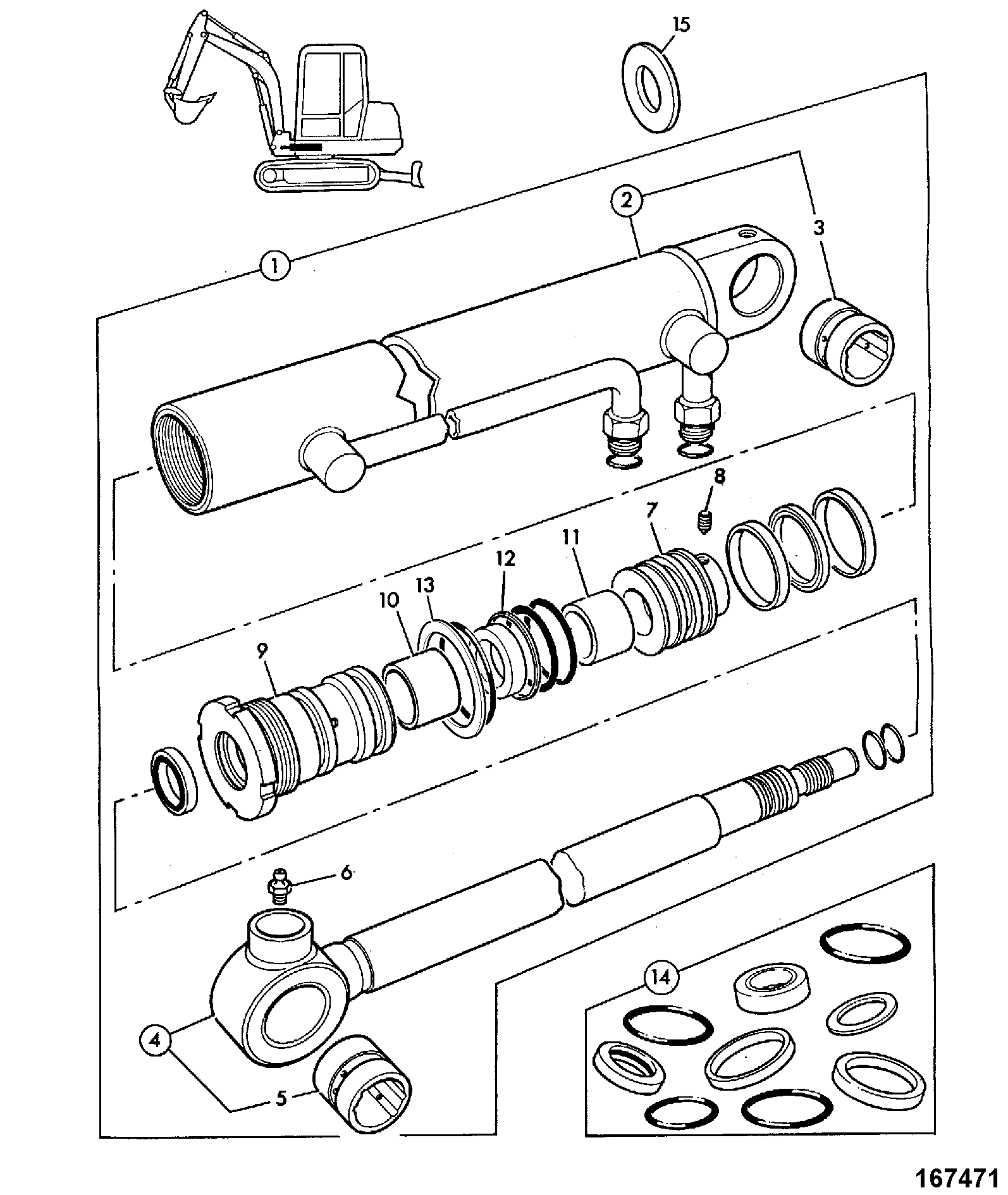

DIAG-E4-1-20-398017 E4-1-20 RAM, SWING
View Diagram
