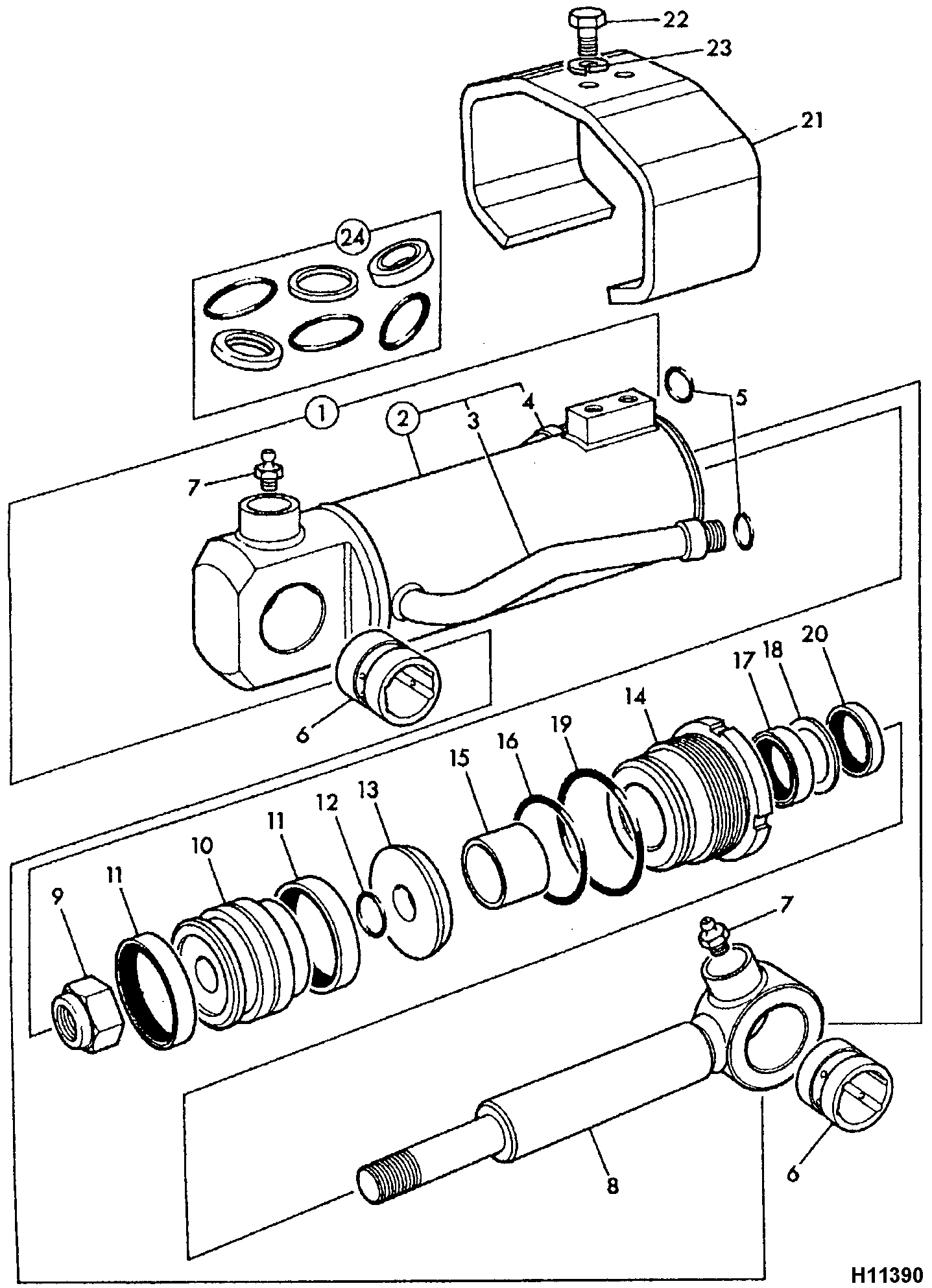

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RAM ASSEMBLY-BOOM 231/16000 | 1 | $4,592.67 | |||
| 5 | O RING 2401/0605 | 1 | $0.65 | |||
| 6 | BUSH 231/02904 | 1 | $538.20 | |||
| 7 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 9 | NUT NYLOC 826/01005 | 1 | $56.16 | |||
| 12 | O RING 828/00215 | 1 | $29.83 | |||
| 14 | BALL STEEL 916/00010 | 1 | $3.37 | |||
| 17 | BUSH 831/00106 | 1 | $9.25 | |||
| 23 | PLATE PROTECTION 231/02004 | 1 | $30.06 | |||
| 24 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 25 | SPRING WASHER M10 823/00416Z | 1 | $0.15 | |||
| 26 | KIT-SEAL RAM 231/02906 | 1 | $164.12 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E4-2-1-397785 E4-2-1 RAM, DOZER
View Diagram -
DIAG-E4-3-2-397785 E4-3-2 RAM, BOOM
View Diagram -
DIAG-E4-1-1-397785 E4-1-1 RAM, SWING
View Diagram
