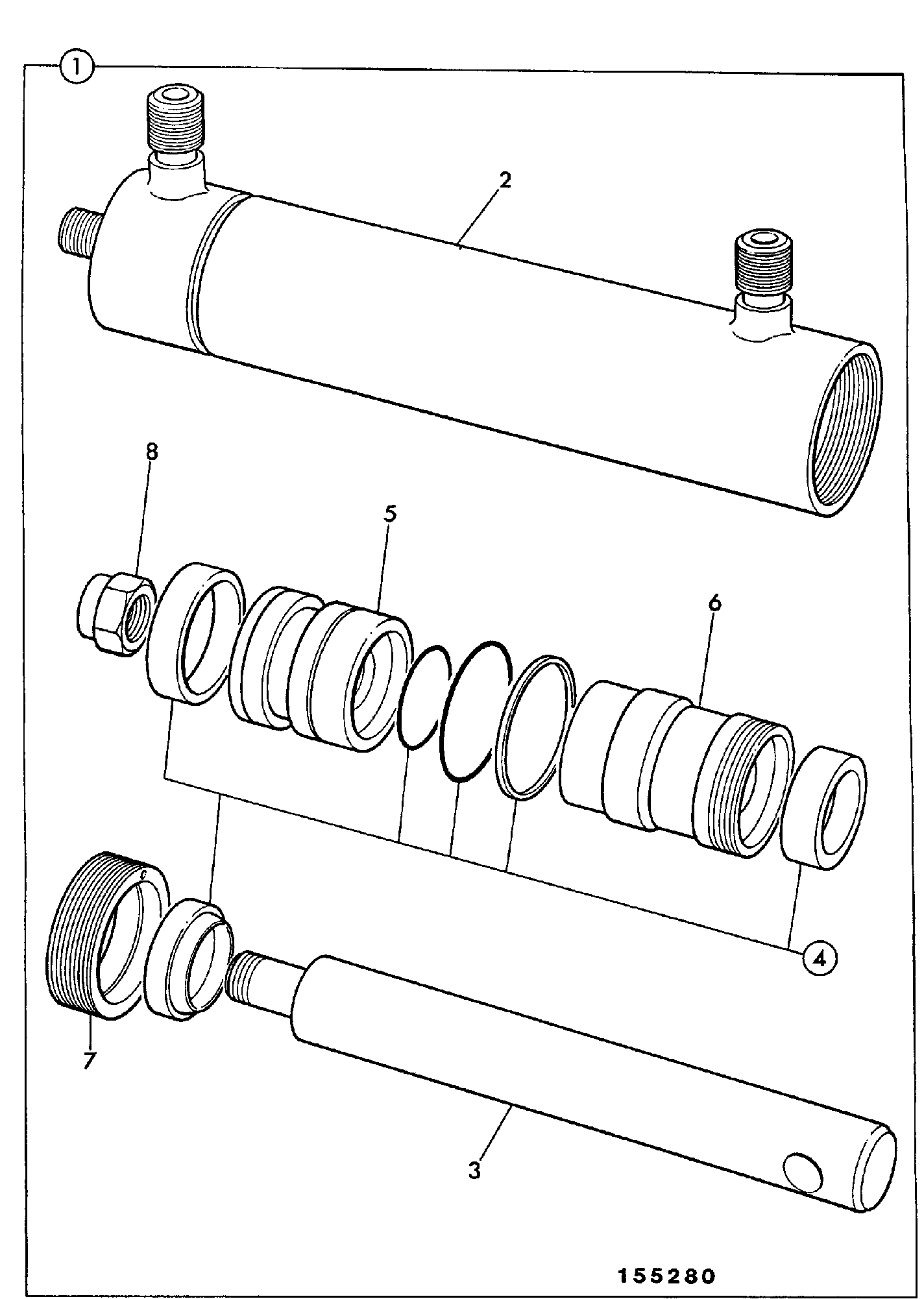

E4-19-1 RAM,STRIMECH BALE & CLAMP TO APRIL 94 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	RAM 993/45500	1	AVAILABLE TO ORDER	$2,696.31	Quantity
3	ROD PISTON 545/45316	1	AVAILABLE TO ORDER	$1,050.91	Quantity
4	KIT SEAL 993/45503	1	AVAILABLE TO ORDER	$473.03	Quantity
5	HEAD-PISTON 545/45312	1	AVAILABLE TO ORDER	$268.27	Quantity
6	GLAND BEARING 545/45314	1	AVAILABLE TO ORDER	$606.28	Quantity
8	NIUT 545/45310	1	AVAILABLE TO ORDER	$12.61	Quantity

Showing 1 to 6 of 6 parts
