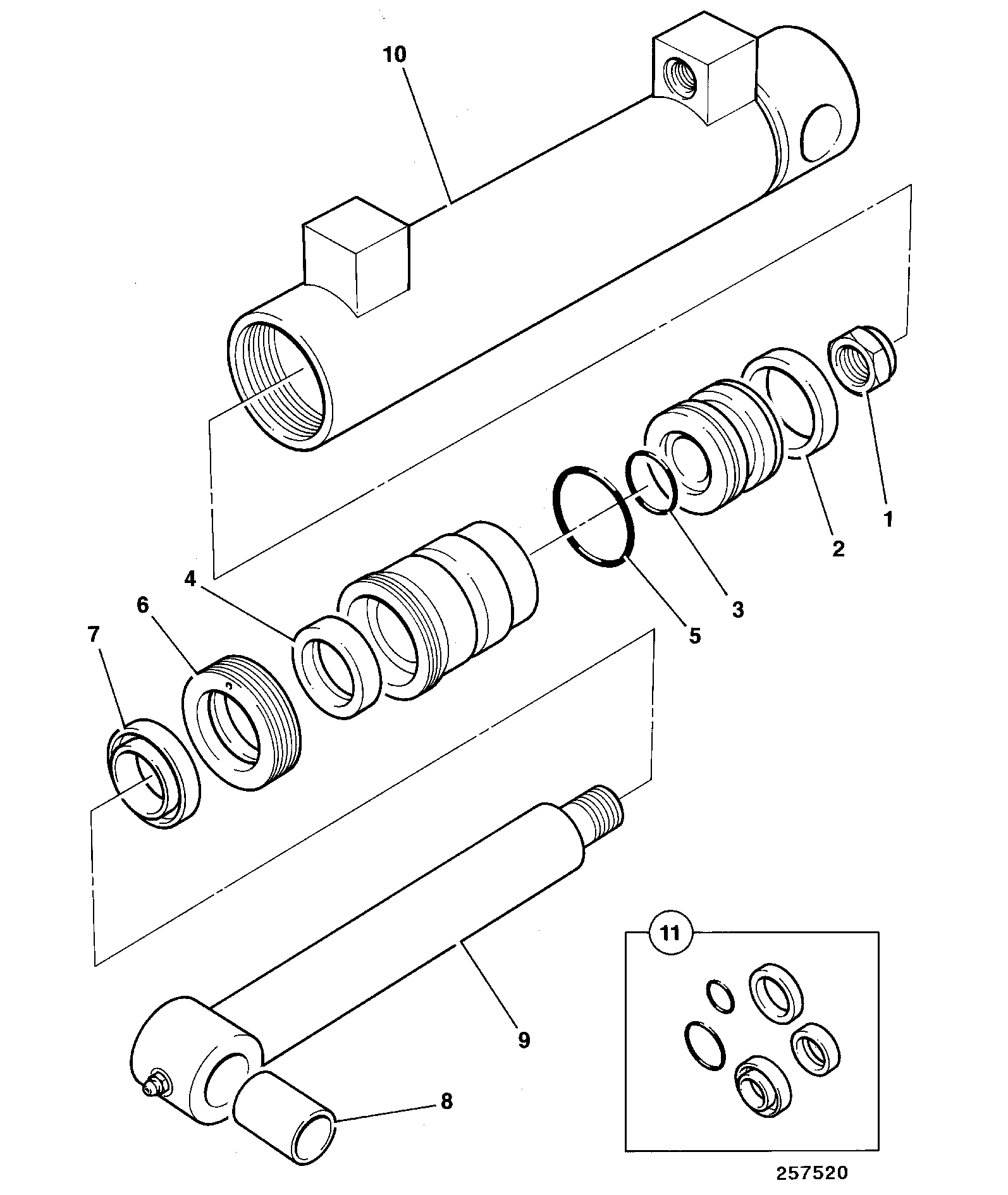

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| TOW HITCH RAM 903/10200 551/60157 | 1 | $1,359.00 | ||||
| 2 | WA PISTON ROD 25x480 590/40290 | 1 | $289.01 | |||
| 3 | WEAR RING 50-45 x 6.8 2411/7915 | 1 | $10.71 | |||
| 4 | P/HEAD ASSY 50x25 (595/10028) 595/26700 | 1 | $202.12 | |||
| 5 | PISTON SEAL 50 x 4 2411/1127 | 1 | $62.62 | |||
| 6 | 'O' RING.25 X 2.0 (PSS LONG+ SHORT) 2302/0006 | 1 | $3.58 | |||
| 7 | O RING SEAL 44.0 x 3 2302/0100 | 1 | $4.11 | |||
| 8 | 'O' RING SEAL (Track Rods) 2411/0501 | 1 | $11.29 | |||
| 10 | ASSY END CAP 50x25 (332/G6193) Hallite 593/00013 594/14319 | 1 | $551.16 | |||
| 13 | DOWEL 6*20Mmm (KANBAN) 826/01182 | 1 | $8.07 | |||
| 14 | SCREW 991/00097 991/00097P | 1 | $74.32 | |||
| 15 | NIPPLE GREASE 816/60056 816/60056A | 1 | $2.11 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E4-17-1-400811 E4-17-1 RAM, TOW HITCH OLEO
View Diagram -
DIAG-E4-17-3-400811 E4-17-3 RAM,TOW HITCH LEAK FREE
View Diagram -
DIAG-E4-18-1-400811 E4-18-1 RAM, BOX TIPPER
View Diagram
