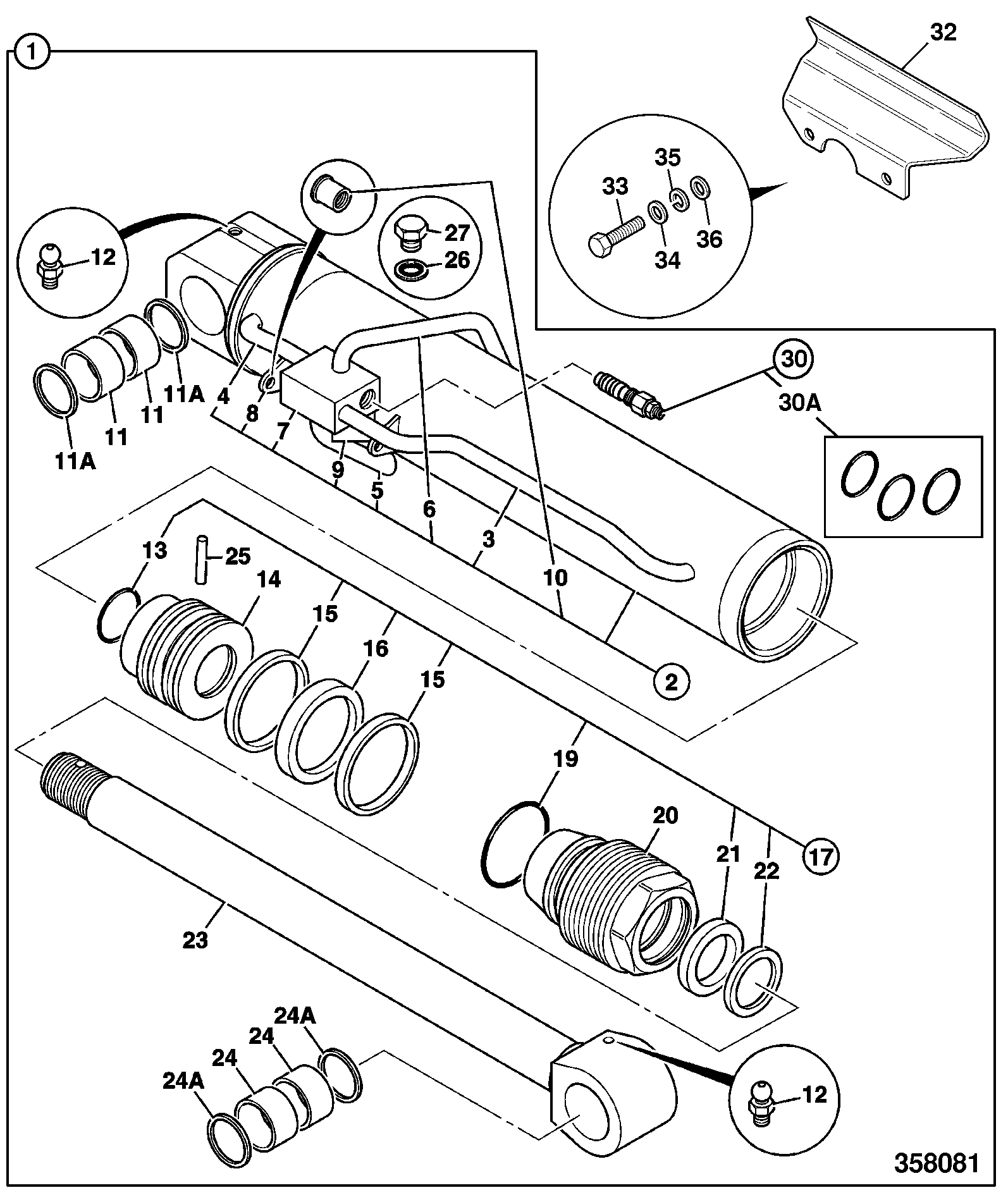

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CABLE TIE LINK 3C 123/00171 | 1 | $0.21 | ||||
| RETAINING RING 821/00396 | 1 | $0.95 | ||||
| ROD BEARING 808/00335 | 1 | $67.84 | ||||
| 10 | NUT RIVET 826/01105 826/01105A | 1 | $6.66 | |||
| 11 | BEARING 50* 60 *40 809/00126 | 1 | $97.60 | |||
| 11A | PIVOT PIN SEAL 60-50-5 813/00426 | 1 | $7.81 | |||
| 12 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 13 | 60x5 O-RING 2302/0306 | 1 | $20.19 | |||
| 14 | P/HEAD ASSY 110*60 (595/10043) 595/27704 | 1 | $291.57 | |||
| 15 | RING-WEAR 2411/7920 2411/7920A | 1 | $19.02 | |||
| 16 | PISTON SEAL 110-89 x 7.8 2411/1139 | 1 | $62.40 | |||
| 17 | Kit Seal 991/00110 991/00110P | 1 | $101.32 | |||
| 19 | O RING.100X5.0 2302/0314 | 1 | $41.16 | |||
| 21 | ROD SEAL.60x75x11.4 P8 & P38 2411/0508 | 1 | $15.54 | |||
| 22 | Seal Wiper 60MM 2411/8608 2411/8608P | 1 | $16.90 | |||
| 23 | WA PISTON ROD 60 x 782.0 590/40956 | 1 | $400.03 | |||
| 24 | BEARING 50 * 60 * 30 809/00127 | 1 | $81.32 | |||
| 25 | DOWEL 12x30 LONG(KANBAN) 826/01180 | 1 | $15.28 | |||
| 26 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 28 | PLUG 9/16UNF O RING BOSS 1745/0002 | 1 | $106.02 | |||
| 30 | C-V CKCD-XEN A402-22V-J03 25/937100 | 1 | $238.38 | |||
| 30A | KIT-SEAL 25/940902 | 1 | $83.86 | |||
| 32 | COVER - VALVE BLOCK RH 332/D3942 | 1 | $93.34 | |||
| 33 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 34 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 35 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 36 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-E4-13-3-400732 E4-13-3 RAM STABILIZER LH
View Diagram -
DIAG-E4-13-8-400732 E4-13-8 RAM,STABILIZER,RH MAN BASKET OPTION
View Diagram -
DIAG-E4-13-2-400732 E4-13-2 RAM STABILIZER R/H
View Diagram
