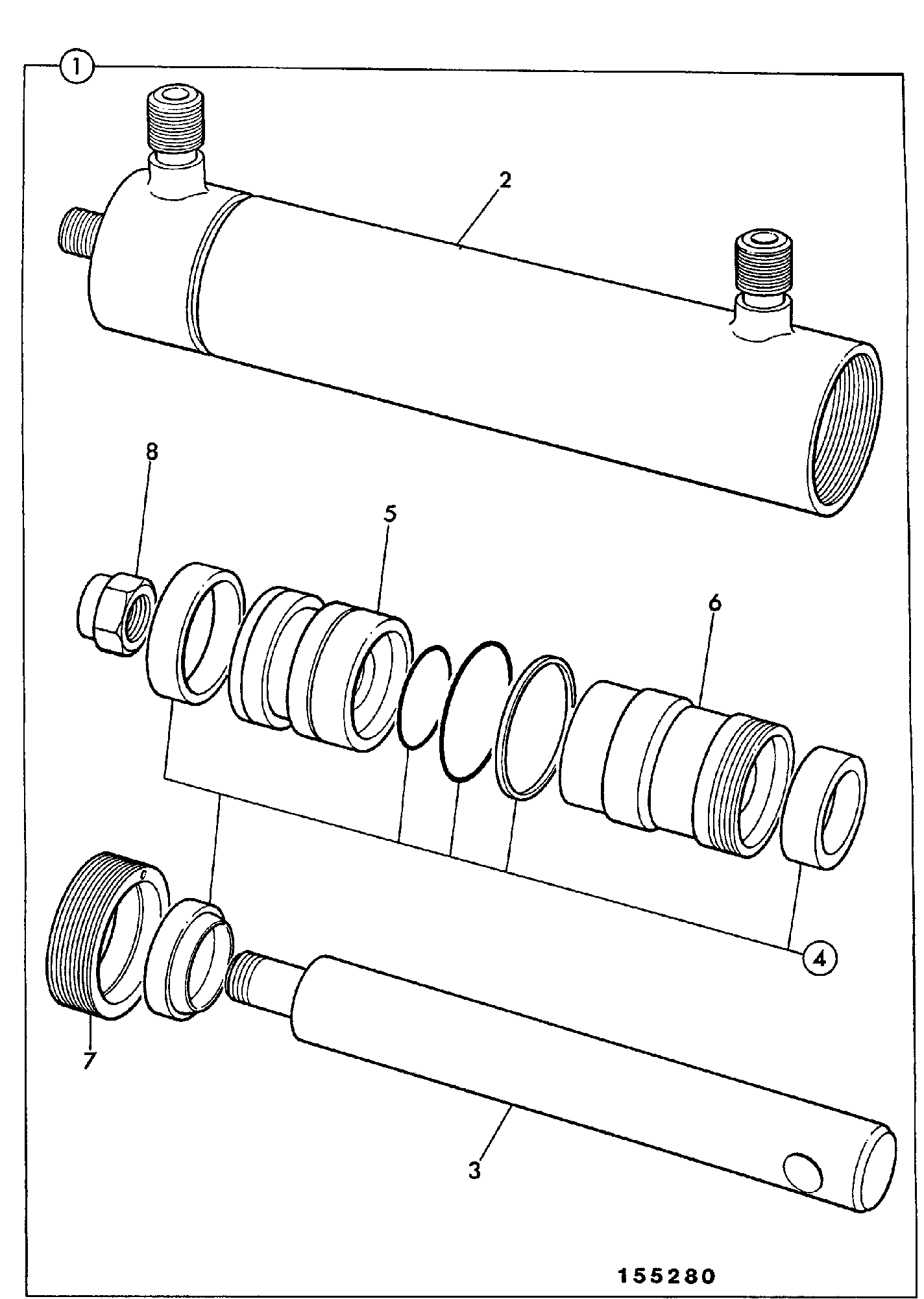

E4-12-1 RAM, LOG GRAB MANURE SILAGE FORK FIXED & SLIDING & FLAT 8 BALE GRAB Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	RAM ASSY 545/45300	1	AVAILABLE TO ORDER	$2,161.40	Quantity
7	BUSH 545/45306	1	AVAILABLE TO ORDER	$140.03	Quantity
8	KIT SEAL 545/45307	1	AVAILABLE TO ORDER	$632.13	Quantity
15	CIRCLIP 545/45317	1	AVAILABLE TO ORDER	$41.02	Quantity
16	O-RING 2401/0218	1	15 IN STOCK	$1.46	Quantity

Showing 1 to 5 of 5 parts
