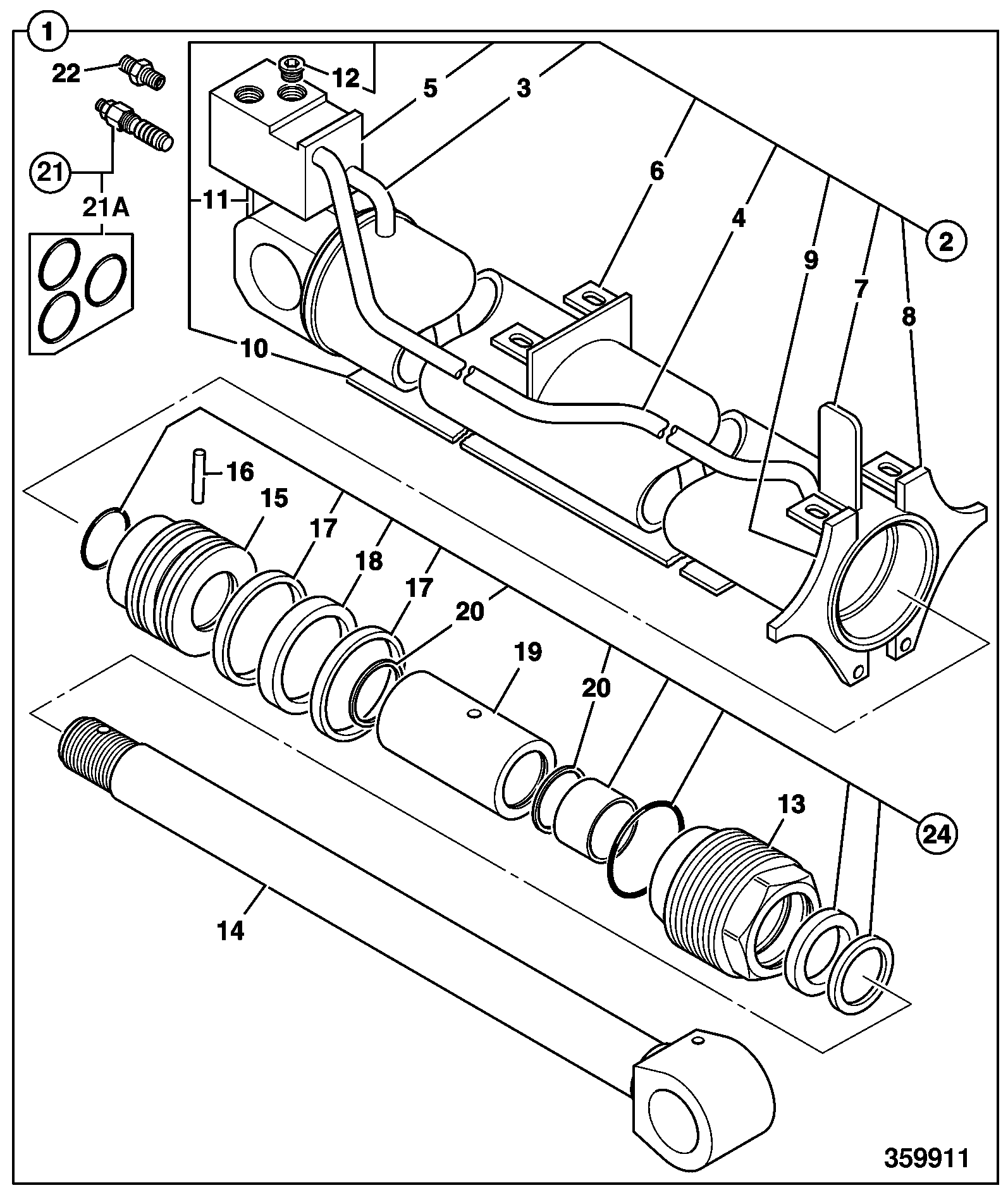

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA INNER EXT'N RAM + TRAY 559/60059 | 1 | $17,210.89 | ||||
| GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.61 | ||||
| WA LH RAM SUPPORT BRACKET 559/90051 | 1 | $73.22 | ||||
| WA RH RAM SUPPORT BRACKET 559/90052 | 1 | $73.22 | ||||
| 1 | LF 120 INNER EXTN 559/70058 559/60168 | 1 | $18,922.44 | |||
| 3 | WA PIPE RS/CV-IN (120INNER) 551/90277 | 1 | $1,375.85 | |||
| 5 | PIPE: HS TO CV 656/00682 | 1 | $36.08 | |||
| 6 | CHECK VALVE BODY (8H42480) 928/50033 | 1 | $188.38 | |||
| 7A | WA.BRIDGE PLATE 559/90008 | 1 | $24.26 | |||
| 8 | CHECK VALVE (E6B060Z - 310 - N409) 25/966100 | 1 | $100.00 | |||
| 8A | KIT-SEAL 25/944001 | 1 | $79.48 | |||
| 11 | 60x5 O-RING 2302/0306 | 1 | $20.19 | |||
| 12 | P/HEAD ASSY 100*60 (595/10040) 595/27701 | 1 | $568.26 | |||
| 13 | RING-WEAR 2411/7919 2411/7919A | 1 | $8.36 | |||
| 14 | PISTON SEAL 100 x 7.8 2411/1145 | 1 | $21.31 | |||
| 18 | ASSY END CAP (594/00053) 594/14031 | 1 | $286.36 | |||
| 19 | ROD SEAL.60x75x11.4 P8 & P38 2411/0508 | 1 | $15.54 | |||
| 23 | DOWEL 8x25LG(KANBAN) 826/01179 | 1 | $0.00 | |||
| 24 | SPACER 60 * 90* 45 559/90006 | 1 | $346.47 | |||
| 25 | MAKE-UP VALVE 1" 334/F2301 | 1 | $196.88 | |||
| 26 | O RING 2401/0106 | 1 | $0.95 | |||
| 28 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
| 29 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 30 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 31 | GUIDE HOSE 159/43500 | 1 | $0.00 | |||
| 31 | GUIDE HOSE 161/00919 | 1 | $179.26 | |||
| 32 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 33 | WEAR PAD MTG. BRKT W.A. 331/13340 | 1 | $19.64 | |||
| 34 | PAD WEAR 331/13335 | 1 | $93.59 | |||
| 35 | BOLT M8x45 1315/3311Z | 1 | $0.70 | |||
| 36 | CAP SCREW M8x25 826/10349 | 1 | $0.81 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-E4-11-1-401896 E4-11-1 RAM,EXTENSION INNER
View Diagram -
DIAG-E4-11-1-401896-13635770 E4-11-1 RAM.INNER EXTENSION
View Diagram -
DIAG-E4-9-2-401896 E4-9-2 RAM.STEERING FRONT & REAR AXLES
View Diagram
