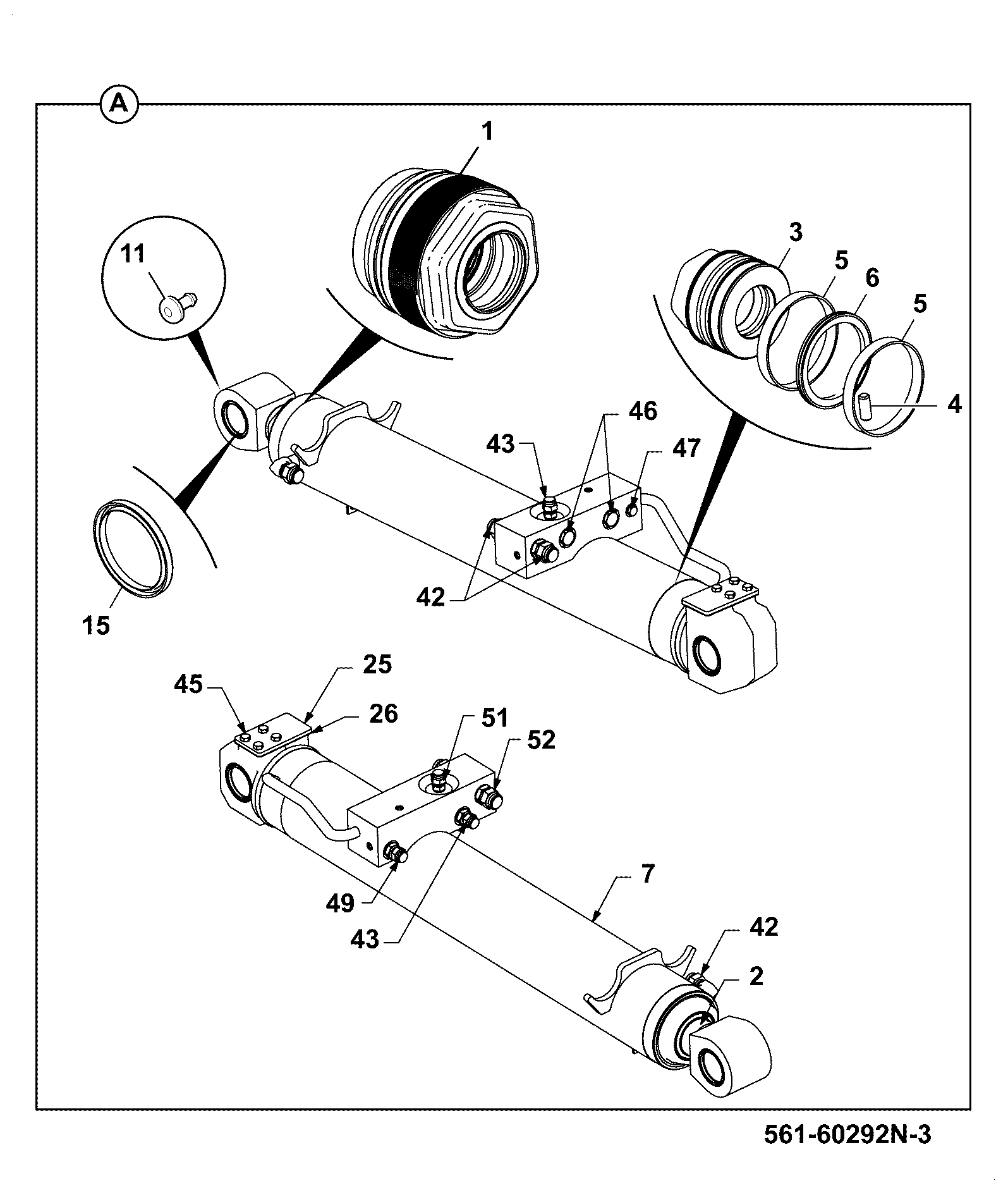

E4-10-1 PISTON HEAD LIFT RAM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	P/HEAD ASSY 110*60 (595/10043) 595/27704	1	AVAILABLE TO ORDER	$291.57	Quantity
1	P/HEAD 110*60 595/10043	1	AVAILABLE TO ORDER	$236.03	Quantity
2	60x5 O-RING 2302/0306	1	AVAILABLE TO ORDER	$20.19	Quantity

Showing 1 to 3 of 3 parts

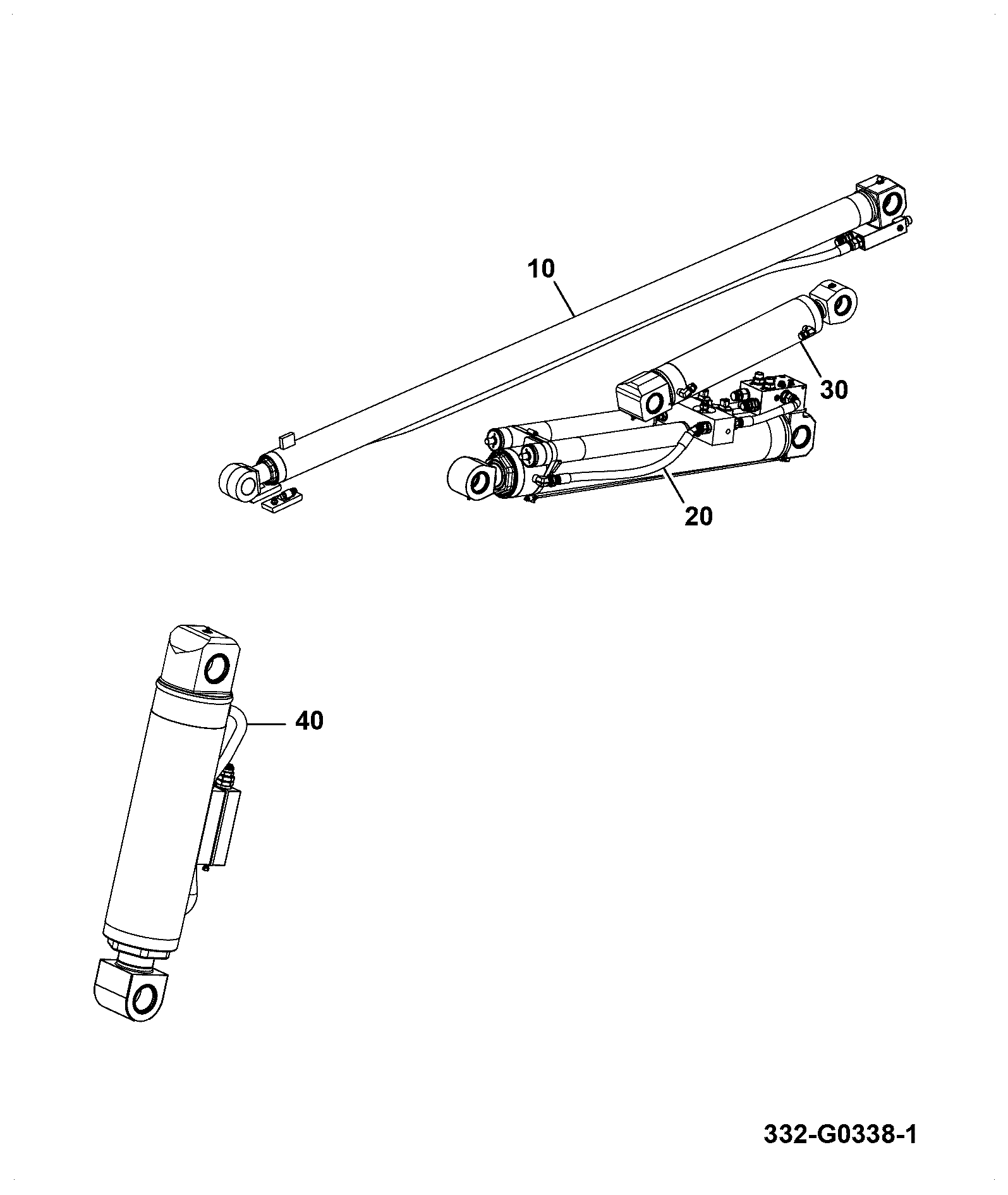

DIAG-E4-10-0-400744 E4-10-0 RAM LOCATION SRS
