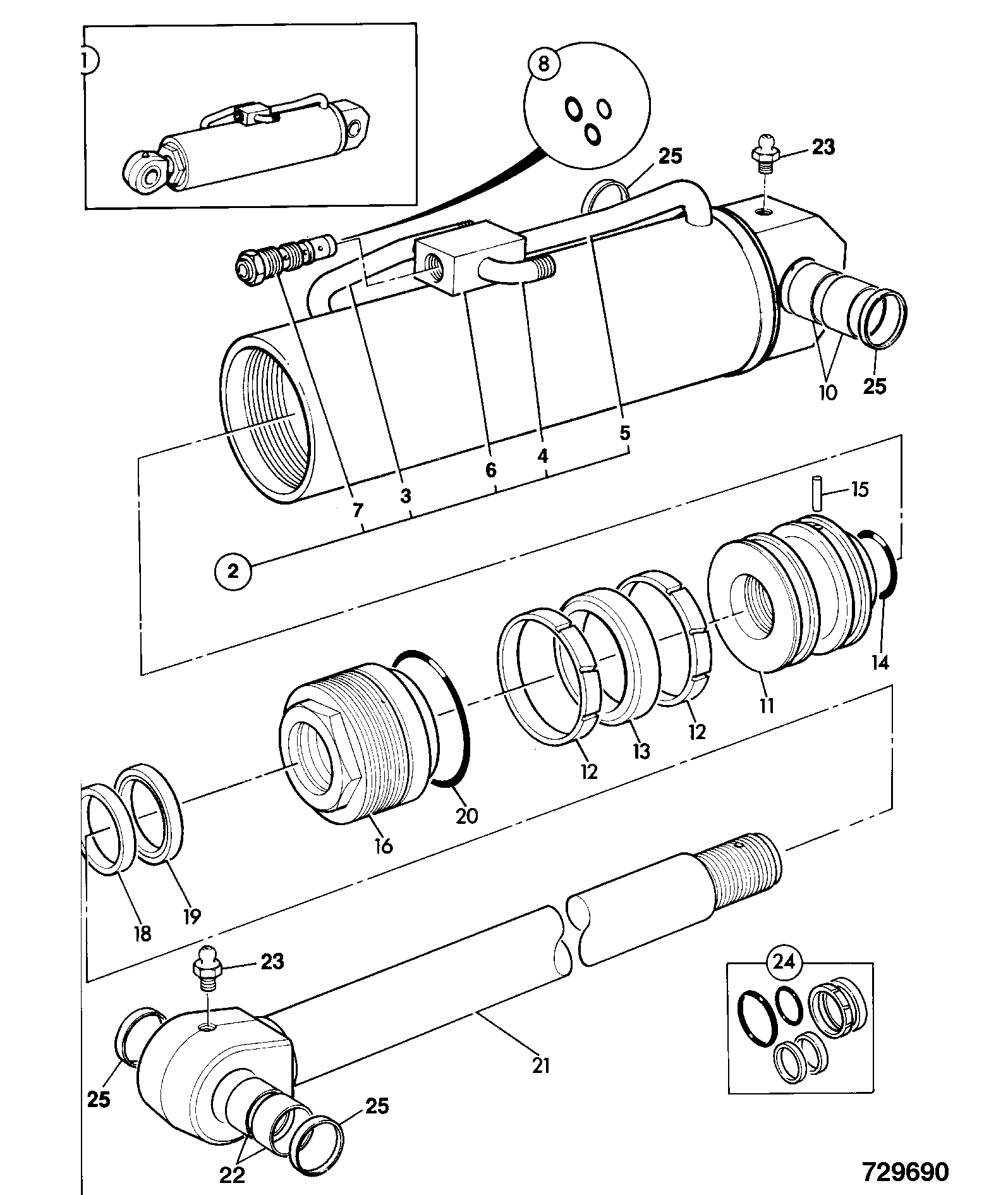

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O RING 150.0 X 5 2302/0324 | 1 | $69.63 | ||||
| SCREW 991/00159 991/00159P | 1 | $422.77 | ||||
| 1 | GA RAM LIFT 160x80 P54 572/60033 572/60046 | 1 | $10,743.25 | |||
| 6 | CHECK VALVE BODY 928/05000 | 1 | $115.74 | |||
| 8 | C-V A204-30J-J03 25/221265 | 1 | $793.28 | |||
| 9 | SEAL KIT 25/949303 | 1 | $181.91 | |||
| 10 | BEARING 2.5" x 75 x 140 809/00183 | 1 | $172.20 | |||
| 10 | Bronze Bearing 63.97x 75.05 x 139.9 808/00424 809/04007 | 1 | $216.49 | |||
| 12 | O RING.80X5.METRIC RAMS 2302/0310 | 1 | $30.53 | |||
| 13 | P/HEAD ASSY 160x80 (595/10070) 595/27731 | 1 | $845.64 | |||
| 14 | WEAR RING 160-155 x 14.8 2411/7940 | 1 | $66.03 | |||
| 15 | PISTON SEAL 160 x 139 2411/1151 | 1 | $60.97 | |||
| 19 | ROD SEAL 80 X 100 X 15 2411/0512 | 1 | $38.85 | |||
| 20 | Seal Wiper 80MM 2411/8612 2411/8612P | 1 | $8.20 | |||
| 21 | WA.ROD P54 135 LIFT (537) 590/40203 | 1 | $2,431.82 | |||
| 22 | SPRING STEEL BUSH 1211/0021 | 1 | $93.25 | |||
| 23 | DOWEL.45MM LONG(KANBAN) 826/01184 | 1 | $33.70 | |||
| 24 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 31 | WASHER 1/8"BSP ALUMINIUM 1403/0001 | 1 | $0.65 | |||
| 33 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 40 | BLANKING CAP 816/00197 816/90022 | 1 | $32.13 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-E4-1-2-402250-13990685 E4-1-2 RAM,LIFT
View Diagram -
DIAG-E4-1-12-402250 E4-1-12 RAM,LIFT SMOOTH RIDE SYSTEM INSTALLATION
View Diagram -
DIAG-E4-7-1-402250 E4-7-1 RAM,TILT
View Diagram
