Scroll to zoom Click a part # to view details

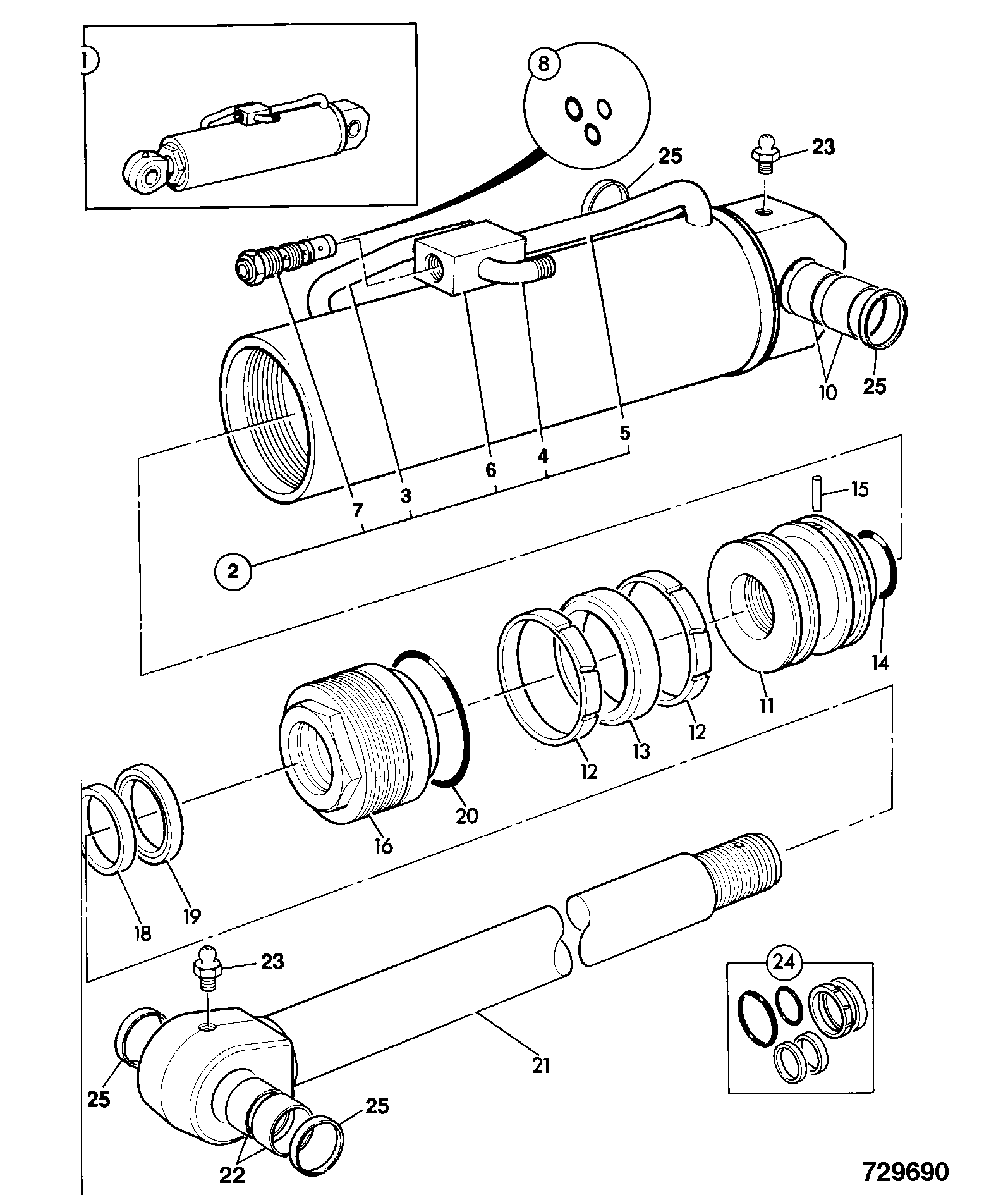

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 90'ELBOW ADAPT 1/8"BSP 816/40055 | 1 | $4.51 | ||||
| ADAPTOR:BATTERYPLATE 816/60068 | 1 | $78.83 | ||||
| BEARING 2.5" x 75 x 140 809/00183 | 1 | $172.20 | ||||
| C-V CBDL-LJN-2.3:1-310bar 25/997500 | 1 | $519.65 | ||||
| CARTRIDGE 25/977100 | 1 | $289.86 | ||||
| CHECK VALVE BODY 928/05000 | 1 | $115.74 | ||||
| CYLINDER 572/70008 | 1 | $10,066.41 | ||||
| DOWEL.45MM LONG(KANBAN) 826/01184 | 1 | $33.70 | ||||
| GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | ||||
| GREASE PIPE 3/16 X 500 572/90014 | 1 | $16.25 | ||||
| MC PIST HD (160 * 80 ) 595/10070 | 1 | $440.19 | ||||
| O RING 150.0 X 5 2302/0324 | 1 | $69.63 | ||||
| O RING.80X5.METRIC RAMS 2302/0310 | 1 | $30.53 | ||||
| PIPE 656/00807 | 1 | $139.73 | ||||
| PISTON SEAL 160 x 139 2411/1151 | 1 | $60.97 | ||||
| ROD SEAL 80 X 100 X 15 2411/0512 | 1 | $38.85 | ||||
| SCREW 991/00159 991/00159P | 1 | $422.77 | ||||
| SEAL KIT 25/949303 | 1 | $181.91 | ||||
| Seal Wiper 80MM 2411/8612 2411/8612P | 1 | $8.20 | ||||
| SPRING STEEL BUSH 1211/0021 | 1 | $93.25 | ||||
| STRAIGHT CONNECTOR 150/42200 | 1 | $18.96 | ||||
| WA.ROD P54 135 LIFT (537) 590/40203 | 1 | $2,431.82 | ||||
| WASHER 1/8"BSP ALUMINIUM 1403/0001 | 1 | $0.65 | ||||
| WEAR RING 160-155 x 14.8 2411/7940 | 1 | $66.03 | ||||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-E4-7-1-402189 E4-7-1 RAM,TILT
View Diagram -
DIAG-E4-11-2-402189 E4-11-2 RAM,EXTENSION INNER 537
View Diagram -
DIAG-E4-12-1-402189 E4-12-1 RAM EXTENSION, OUTER
View Diagram
