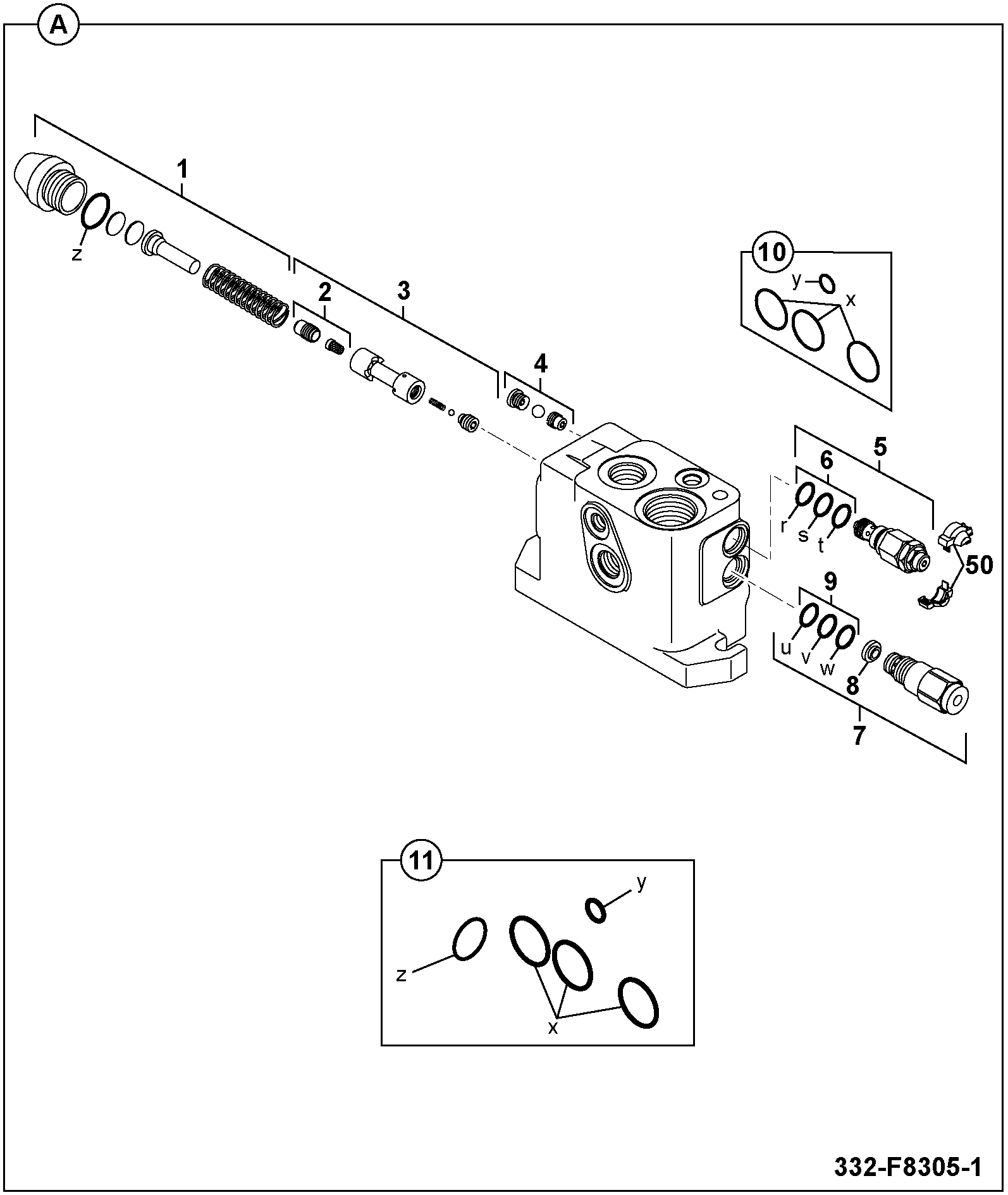

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 90'ELBOW ADAPT 1/8"BSP 816/40055 | 1 | $4.51 | ||||
| ADAPTOR:BATTERYPLATE 816/60068 | 1 | $78.83 | ||||
| ASSY END CAP 140*75 (594/00415) 566/70006 594/14275 | 1 | $428.12 | ||||
| BEARING 2,5"X 75 X 100 809/00184 | 1 | $273.08 | ||||
| C-V A204-30J-J03 25/221265 | 1 | $793.28 | ||||
| CHECK VALVE BODY 928/50031 | 1 | $64.69 | ||||
| DOWEL.45MM LONG(KANBAN) 826/01184 | 1 | $33.70 | ||||
| END CAP ASSY.(594/00049 sealed) 594/14021 | 1 | $1,523.41 | ||||
| GA LIFT RAM 140X75 P42 LiFT REC 566/60006 566/60065 | 1 | $2,936.35 | ||||
| GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | ||||
| HOSE GUIDE 565/90018 | 1 | $17.03 | ||||
| O RING.75X5.0 2302/0309 | 1 | $53.87 | ||||
| O RING130 X 5.0 2302/0320 | 1 | $81.14 | ||||
| P/HEAD 595/10056P 595/27721 595/10056 | 1 | $1,153.30 | ||||
| PIPE:CV TO HS 25/32 X627 658/01330 | 1 | $45.70 | ||||
| PISTON SEAL 140-119 x 10 2411/1147 | 1 | $41.23 | ||||
| PLATE 561/11901 | 1 | $34.88 | ||||
| ROD SEAL.75X95X15.1.P38 2411/0511 | 1 | $59.98 | ||||
| SEAL KIT 25/949303 | 1 | $181.91 | ||||
| Seal Wiper 75MM 2411/8611 2411/8611P | 1 | $12.46 | ||||
| SPRING STEEL BUSH 1211/0021 | 1 | $93.25 | ||||
| STRAIGHT CONNECTOR 150/42200 | 1 | $18.96 | ||||
| TUBE GREASE 565/90020 | 1 | $13.69 | ||||
| UNIVERSAL SERVICE SEALKIT 991/20029 | 1 | $304.50 | ||||
| WASHER 1/8"BSP ALUMINIUM 1403/0001 | 1 | $0.65 | ||||
| WEAR RING 140-135 x 15 2411/7924 | 1 | $34.78 | ||||
Showing 1 to 26 of 26 parts
