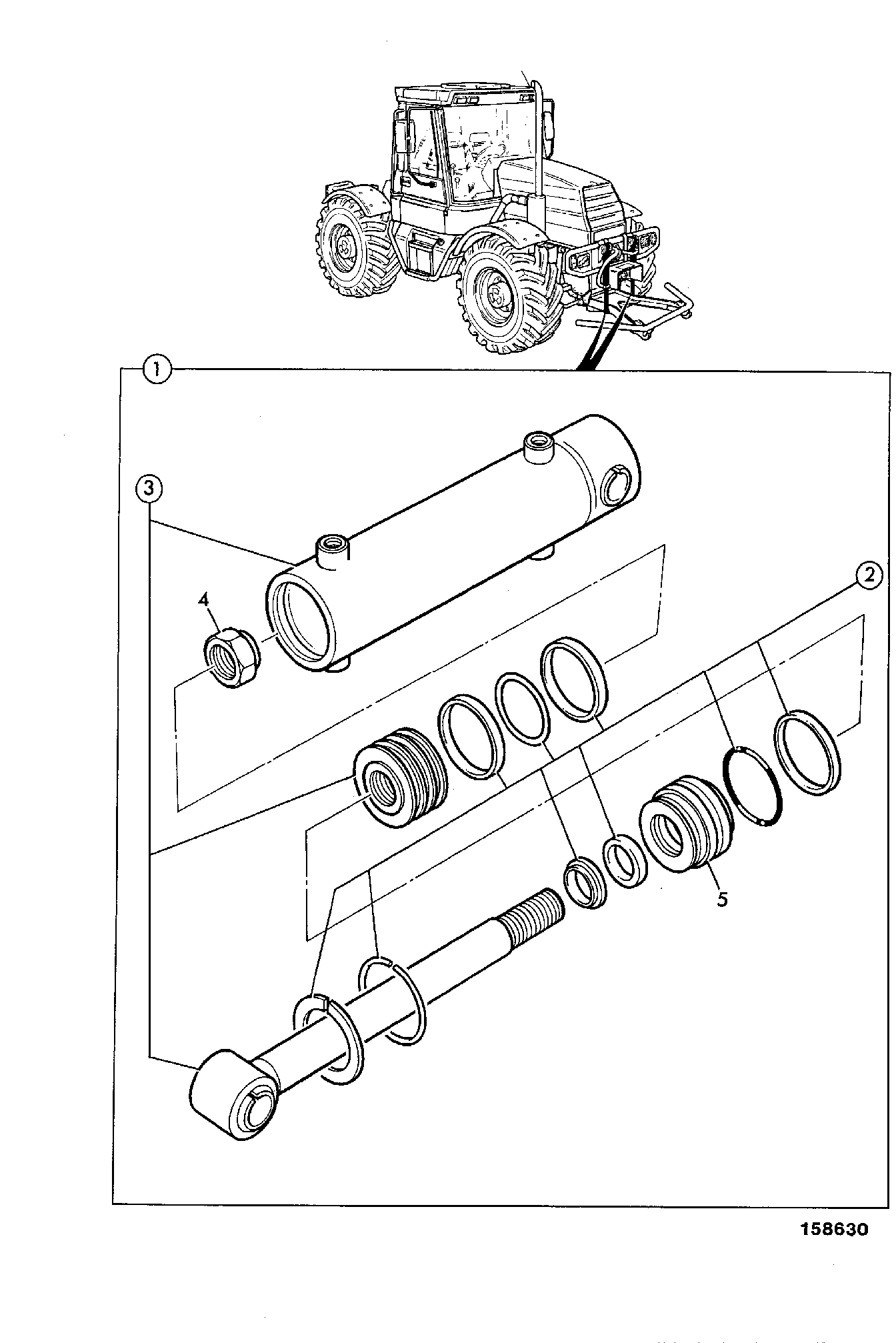

E4-1-2 RAM, REAR HITCH CAT II Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	NIPPLE GREASE 476/09805	1	AVAILABLE TO ORDER	$11.29	Quantity
4	BEARING ASSY 477/01095	1	AVAILABLE TO ORDER	$229.04	Quantity
5	SEAL KIT 476/06801	1	AVAILABLE TO ORDER	$177.02	Quantity
7	BEARING ASSEMBLY 477/01096	1	AVAILABLE TO ORDER	$71.61	Quantity
9	PLUG 476/09803	1	AVAILABLE TO ORDER	$33.25	Quantity

Showing 1 to 5 of 5 parts

DIAG-E4-1-1-393487 E4-1-1 RAM, FRONT HITCH
View Diagram
DIAG-E4-1-3-393487 E4-1-3 RAM, REAR HITCH CAT III
View Diagram

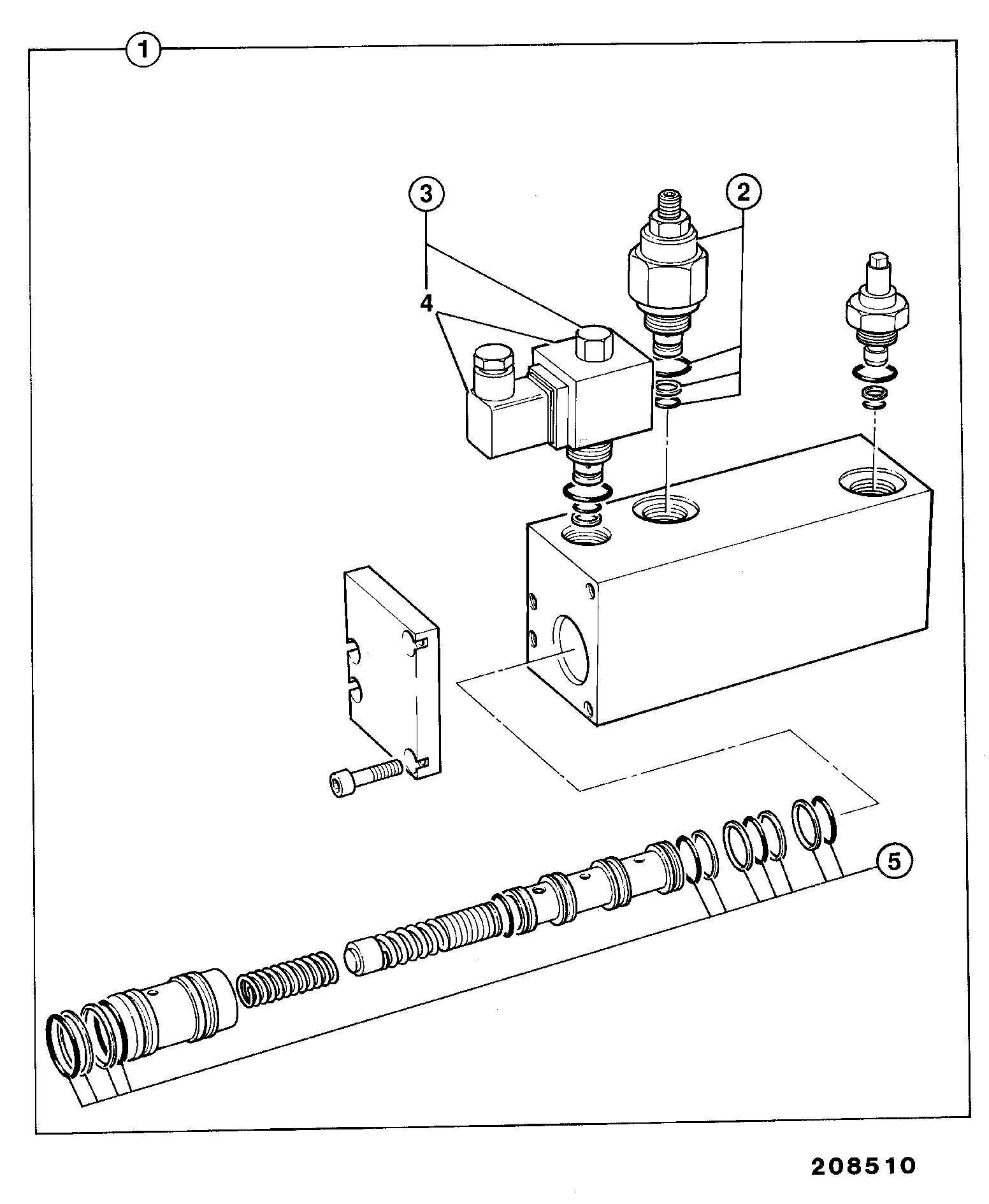

DIAG-E3-5-1-393487 E3-5-1 VALVE FLOW REGULATOR DIVERTER
View Diagram

Previous Assembly DIAG-E4-1-1-393487 E4-1-1 RAM, FRONT HITCH Next Assembly DIAG-E4-1-3-393487 E4-1-3 RAM, REAR HITCH CAT III
