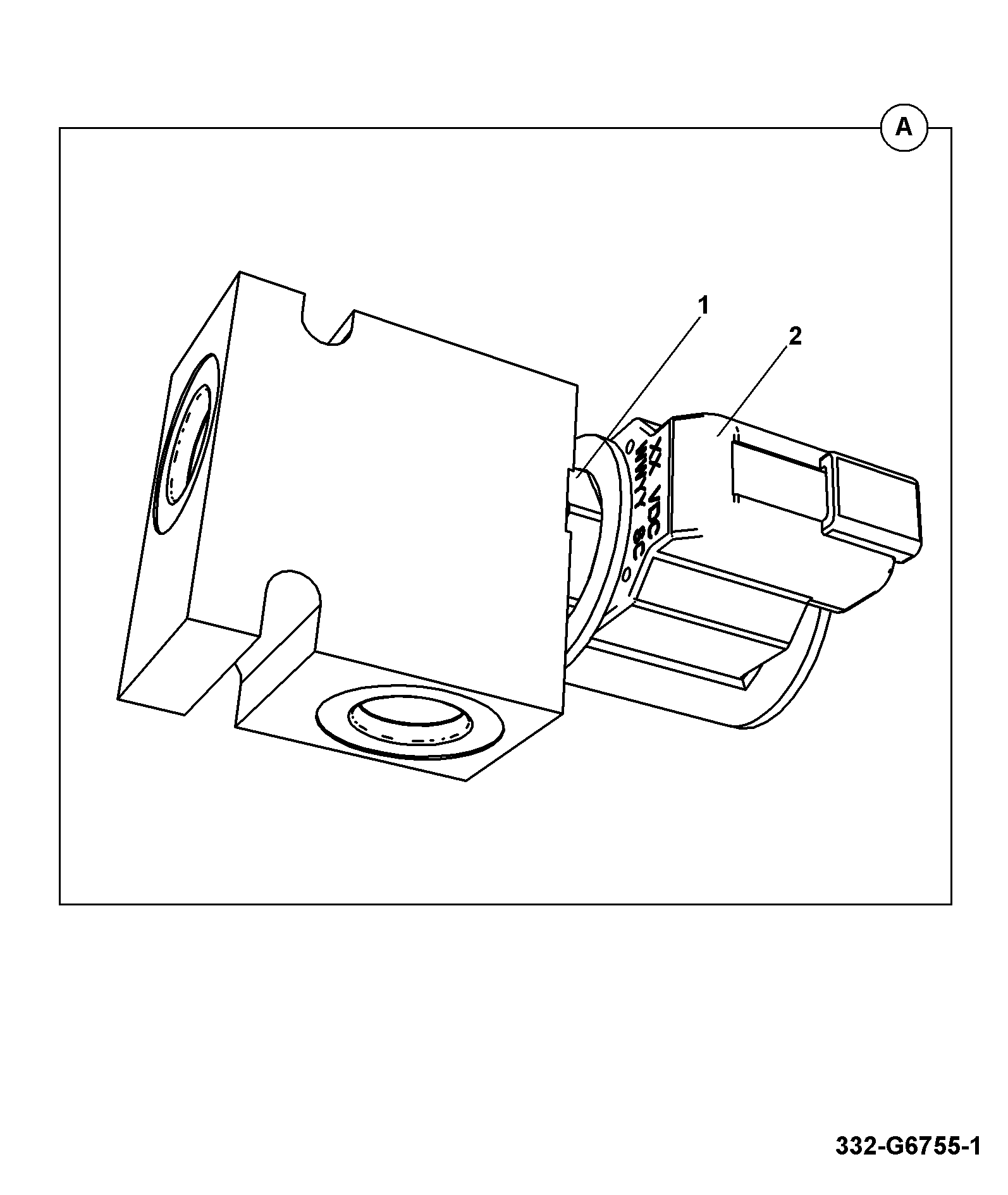

E390-90-1 OTHER VALVES COMPONENTS CHARGING PRIORITY VALVE NON TB Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Seal Kit 336/C6061	1	AVAILABLE TO ORDER	$133.72	Quantity
2	CPV NON TB AND SAHR CHRG 400/H8285	1	AVAILABLE TO ORDER	$1,366.23	Quantity

Showing 1 to 2 of 2 parts

DIAG-E390-85-1-402914 E390-85-1 OTHER VALVES INSTALLATION CPV , HMH , NON TLTB
View Diagram
DIAG-E390-95-1-402914 E390-95-1 OTHER VALVES 2 PORT POPPET VALVE, OCVP, T4i
View Diagram

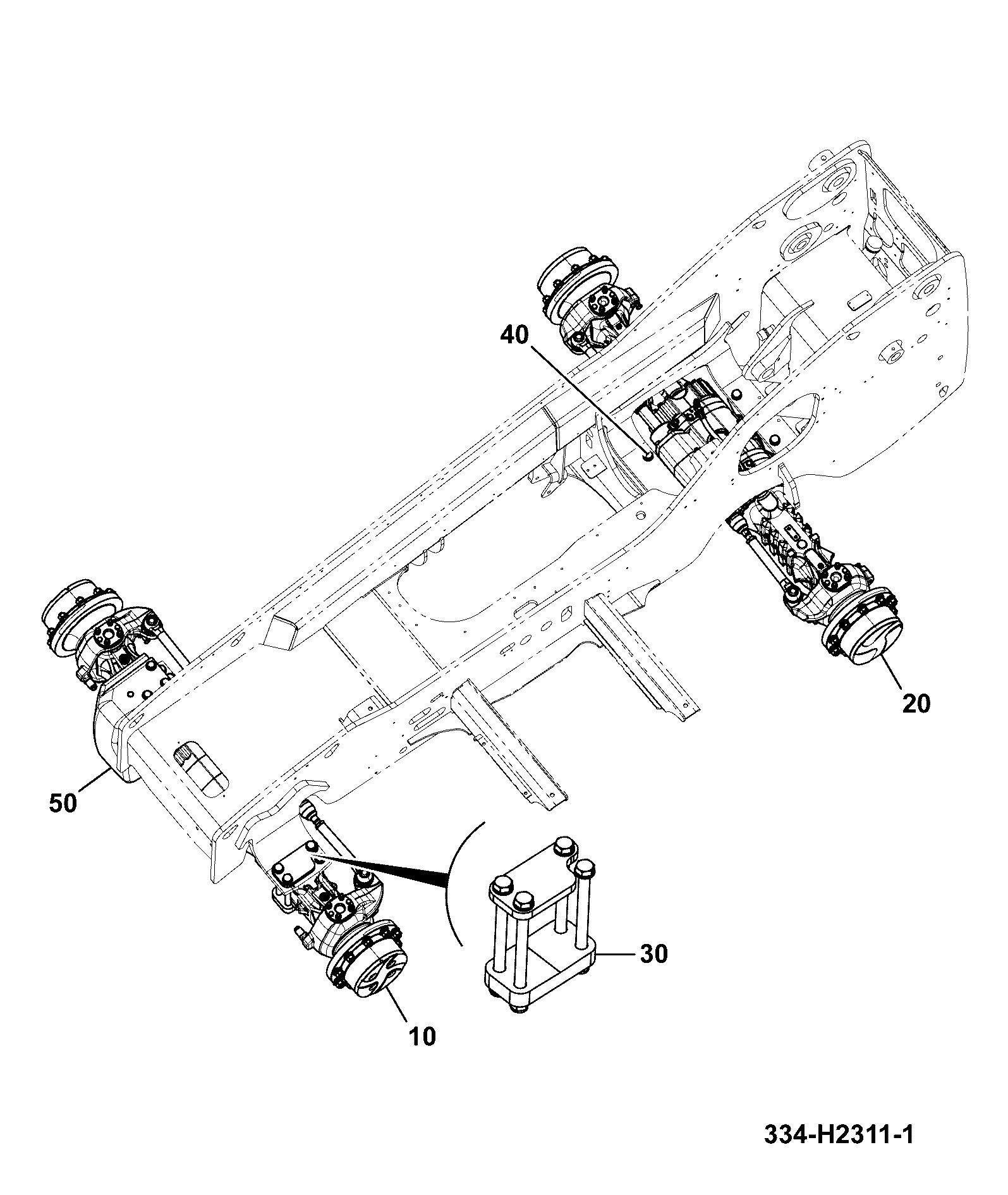

DIAG-F0-115-1-402914 F0-115-1 TRANSMISSION INSTALLATION ASSEMBLIES AXLES FIXED , 26" WHEELS , STANDARD
