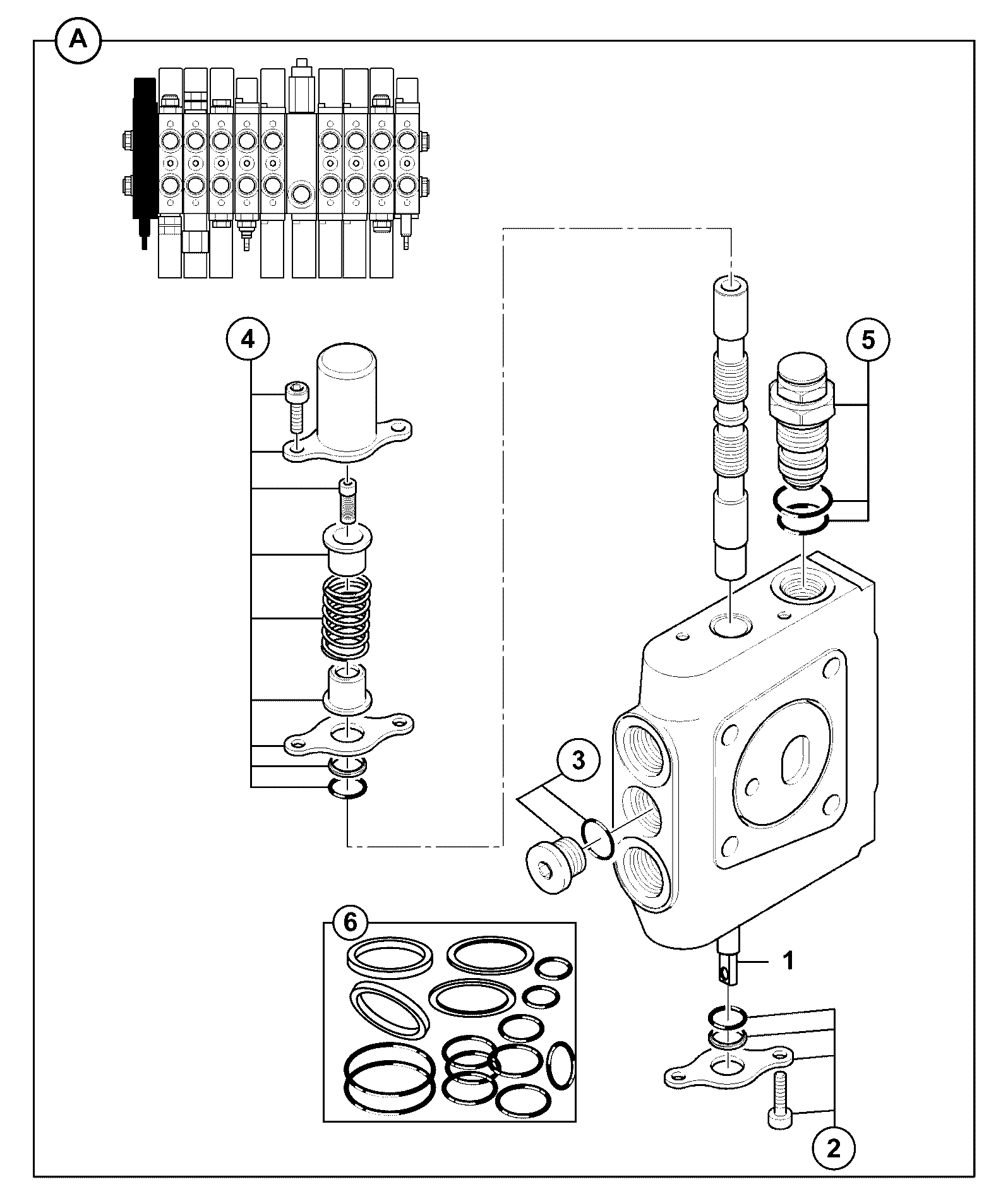

E390-9-1 OTHER VALVES SECTIONS BOOM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cap kit 332/D6845	1	AVAILABLE TO ORDER	$127.36	Quantity
2	KIT 928/60183	1	AVAILABLE TO ORDER	$727.94	Quantity
3	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
4	KIT, ANTI-SHOCK 928/60182	1	AVAILABLE TO ORDER	$449.92	Quantity
5	Cap kit 332/D6843	1	AVAILABLE TO ORDER	$92.05	Quantity
6	Kit Seal 333/L0732	1	AVAILABLE TO ORDER	$115.88	Quantity

Showing 1 to 6 of 6 parts
