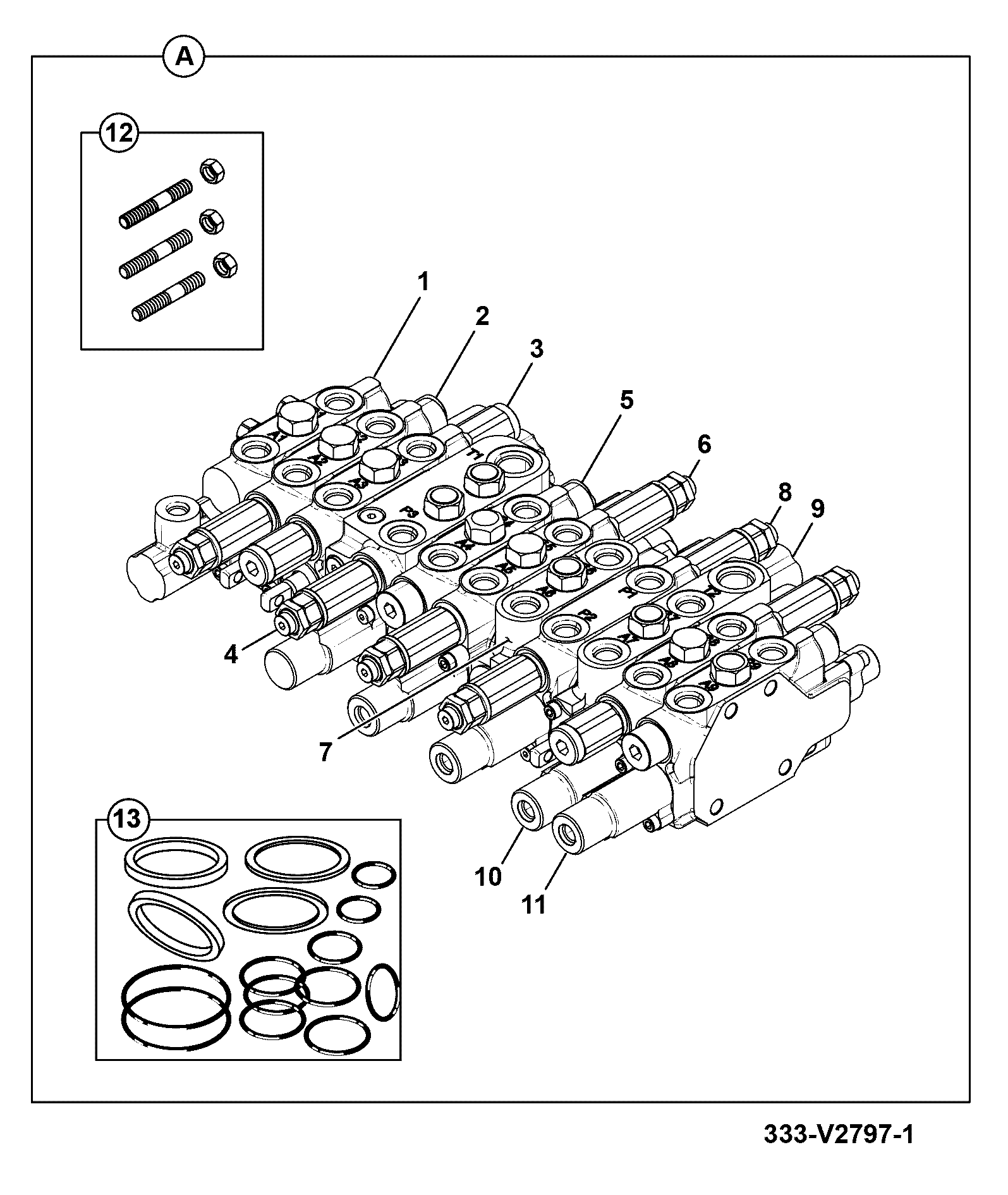

E390-85-1 OTHER VALVES SECTIONS ARM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Valve 335/A8978	1	AVAILABLE TO ORDER	$2,127.49	Quantity
2	Kit Check Valve 335/B8772	1	AVAILABLE TO ORDER	$124.50	Quantity
4	Kit 335/B8767	1	AVAILABLE TO ORDER	$173.07	Quantity
5	Cap 335/C0038	1	AVAILABLE TO ORDER	$198.32	Quantity
7	Valve Valve 335/C0040	1	AVAILABLE TO ORDER	$370.56	Quantity
8	Kit 335/B8812	1	AVAILABLE TO ORDER	$167.32	Quantity

Showing 1 to 6 of 6 parts
