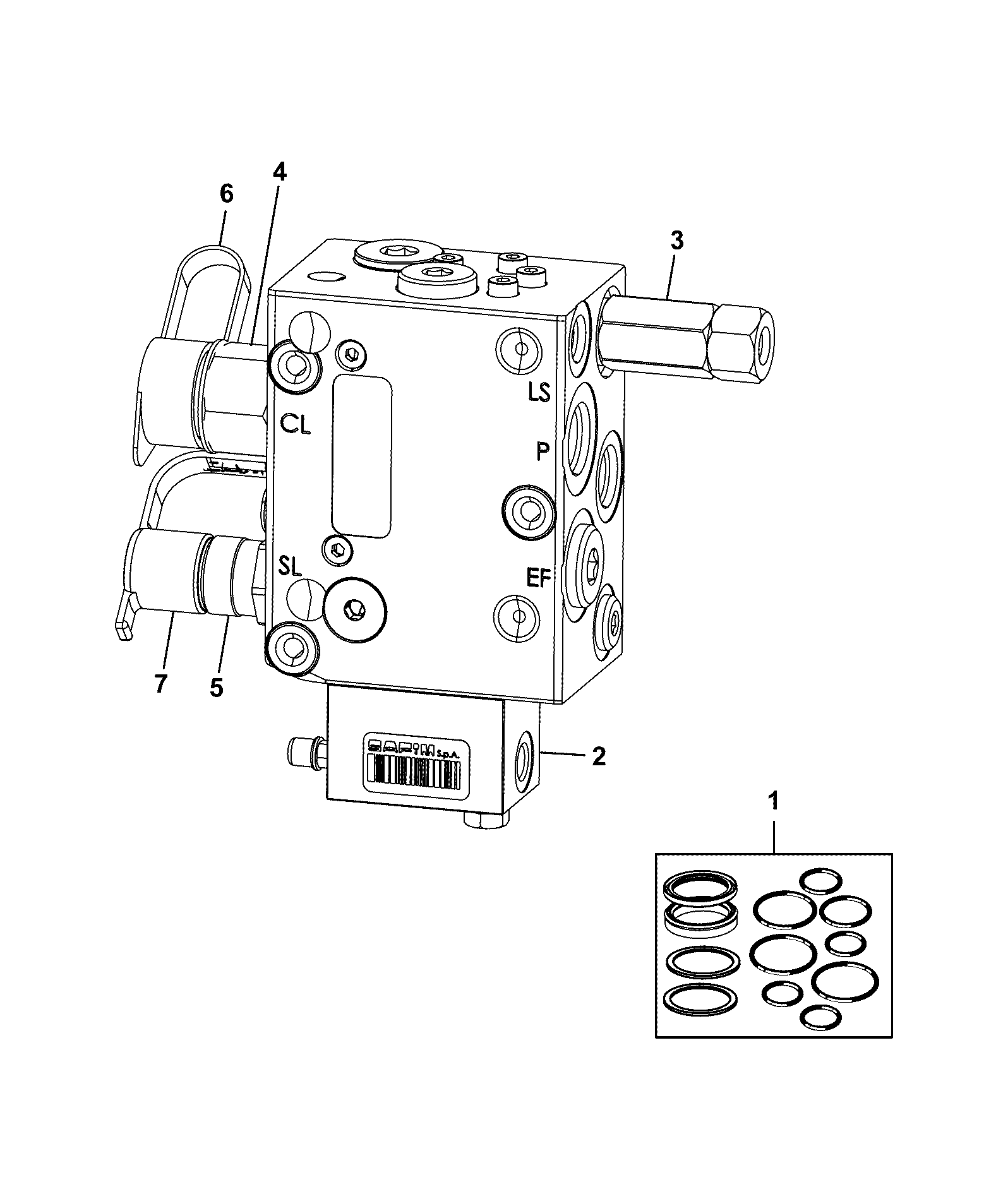

E390-80-1 OTHER VALVES COMPONENTS COUNTER BALENCE VALVE , LIFT RAM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	PO CBV LIFT RAM SRS 531-7 334/C5699	1	AVAILABLE TO ORDER	$3,019.80	Quantity
1	SRS Cartridge 334/G3809	1	AVAILABLE TO ORDER	$508.80	Quantity
2	Coil only 332/G3836	1	AVAILABLE TO ORDER	$165.08	Quantity
3	Seal kit 334/E6502	1	AVAILABLE TO ORDER	$922.90	Quantity

Showing 1 to 4 of 4 parts
