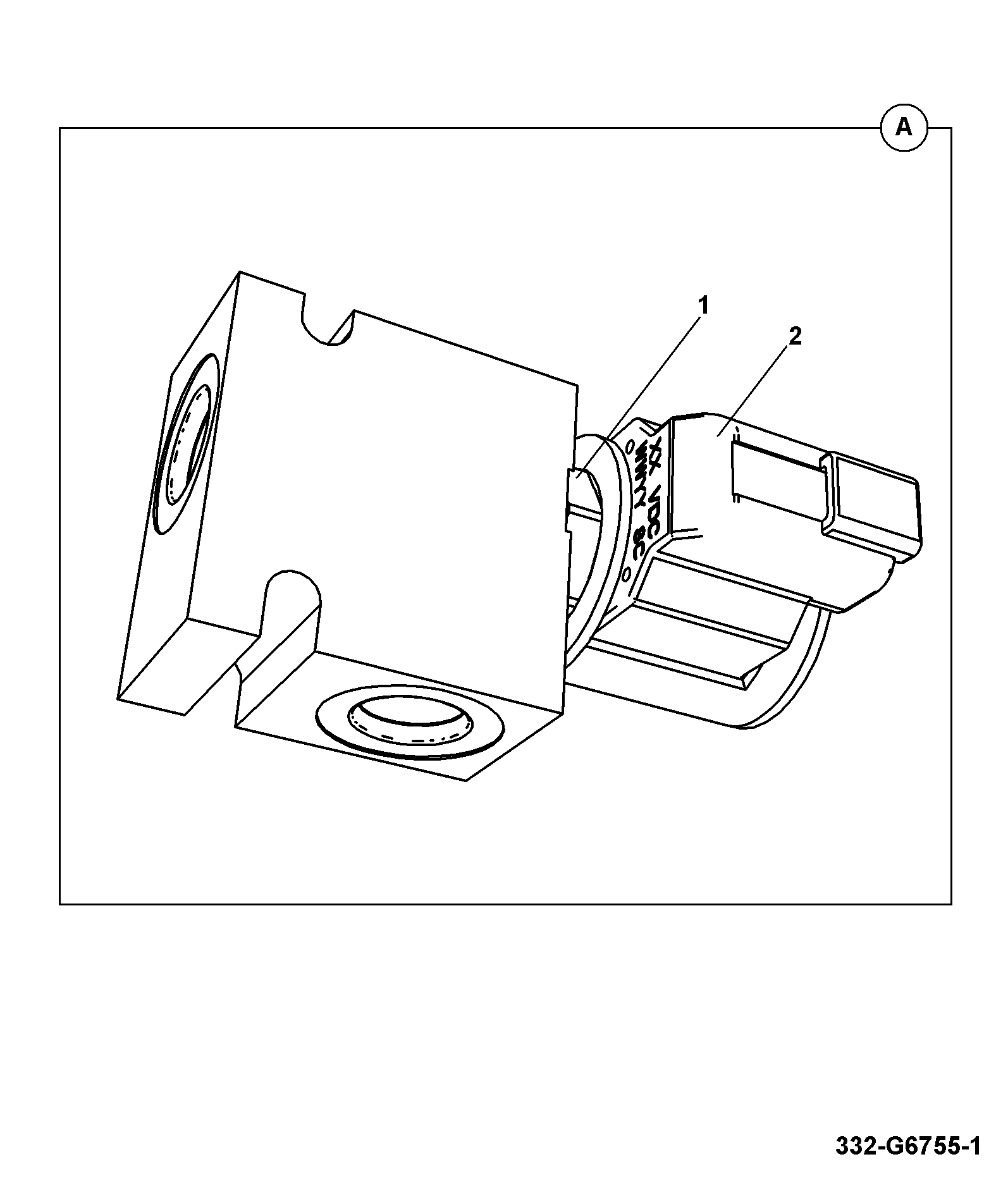

E390-55-1 OTHER VALVES LIFT SMOOTH RIDE SYSTEM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Coil only 332/G3836	1	AVAILABLE TO ORDER	$165.08	Quantity
2	Nut 333/E9204	1	AVAILABLE TO ORDER	$35.47	Quantity
3	SRS Cartridge 334/G3809	1	AVAILABLE TO ORDER	$508.80	Quantity
4	Seal kit 334/E6502	1	AVAILABLE TO ORDER	$922.90	Quantity
A	SRS LIFT VALVE 536-60 334/C5698	1	AVAILABLE TO ORDER	$3,093.45	Quantity

Showing 1 to 5 of 5 parts

DIAG-E390-45-1-401621 E390-45-1 OTHER VALVES 2 PORT POPPET VALVE, OCVP, T4i
View Diagram

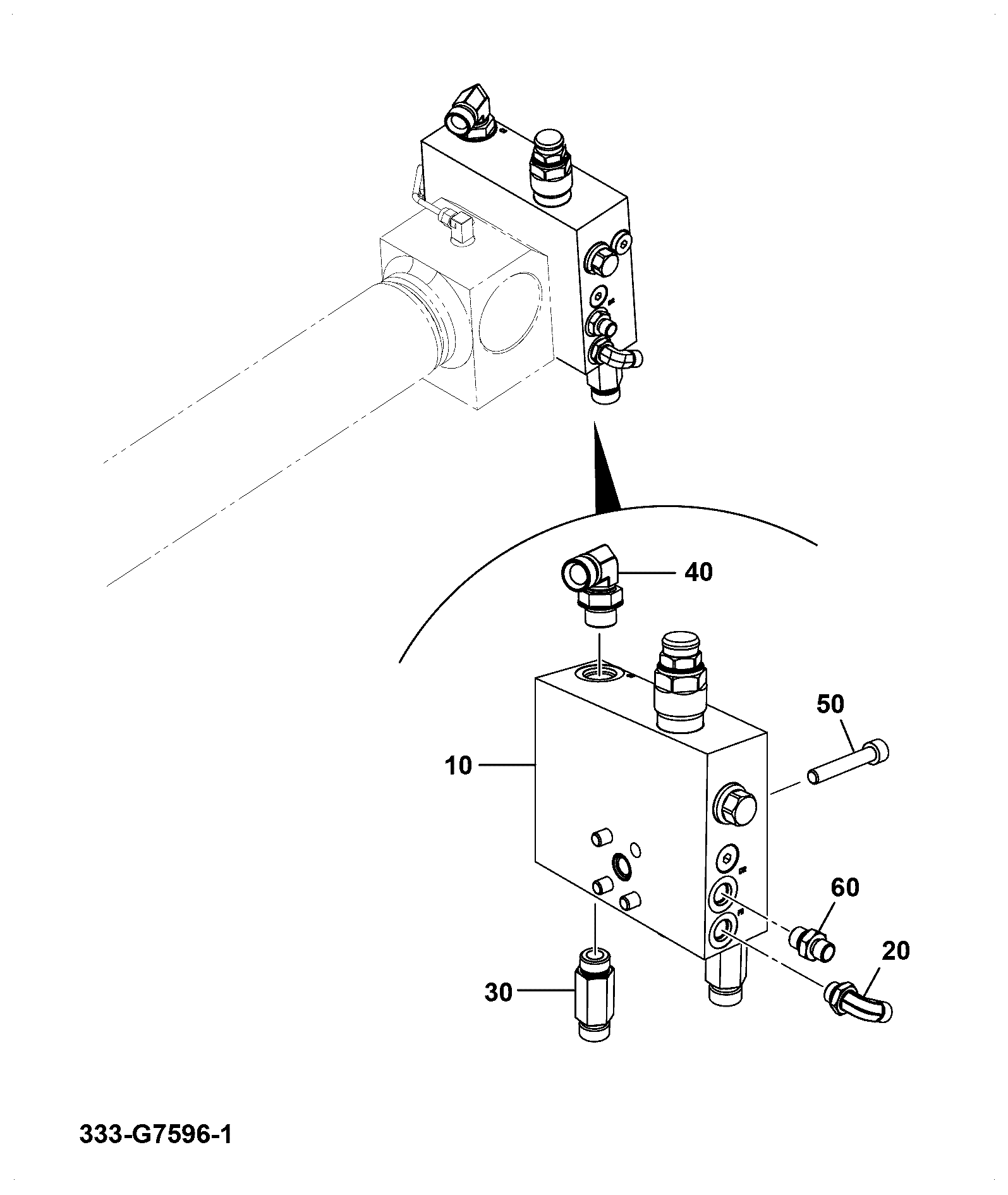

DIAG-E390-90-1-401621 E390-90-1 OTHER VALVES COUNTERBALANCE EXTENSION RAM
View Diagram

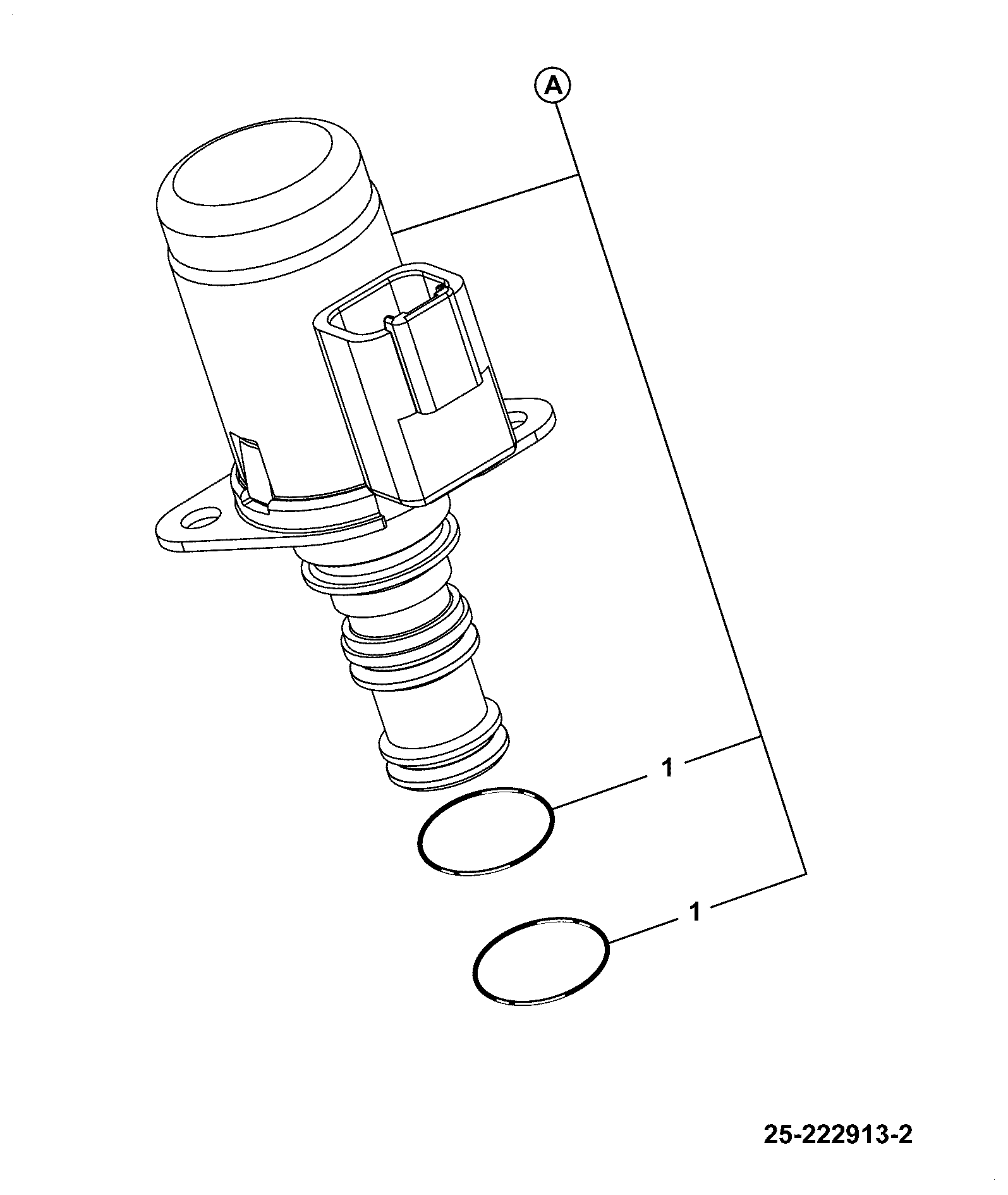

DIAG-E390-20-1-401621 E390-20-1 OTHER VALVES SOLENOID
