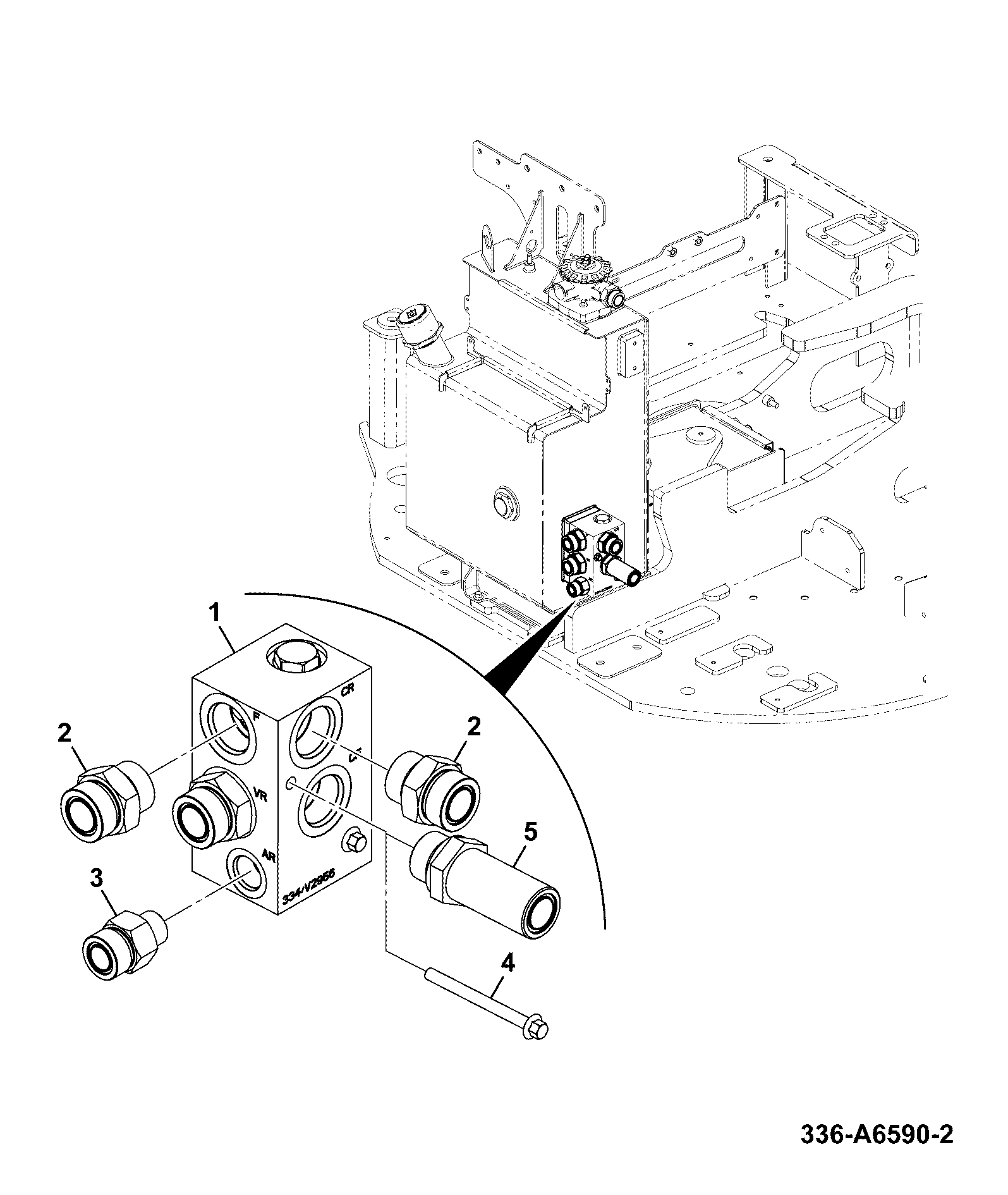

E390-50-1 OTHER VALVES COMPONENTS RETURN MANIFOLD, SINGLE ACTING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	HYD RETURN MANIFOLD DA 333/W2231 334/V2958	1	AVAILABLE TO ORDER	$728.37	Quantity
1	Plug 335/C1589	1	AVAILABLE TO ORDER	$8.98	Quantity
2	Check 336/A5509	1	AVAILABLE TO ORDER	$102.44	Quantity

Showing 1 to 3 of 3 parts
