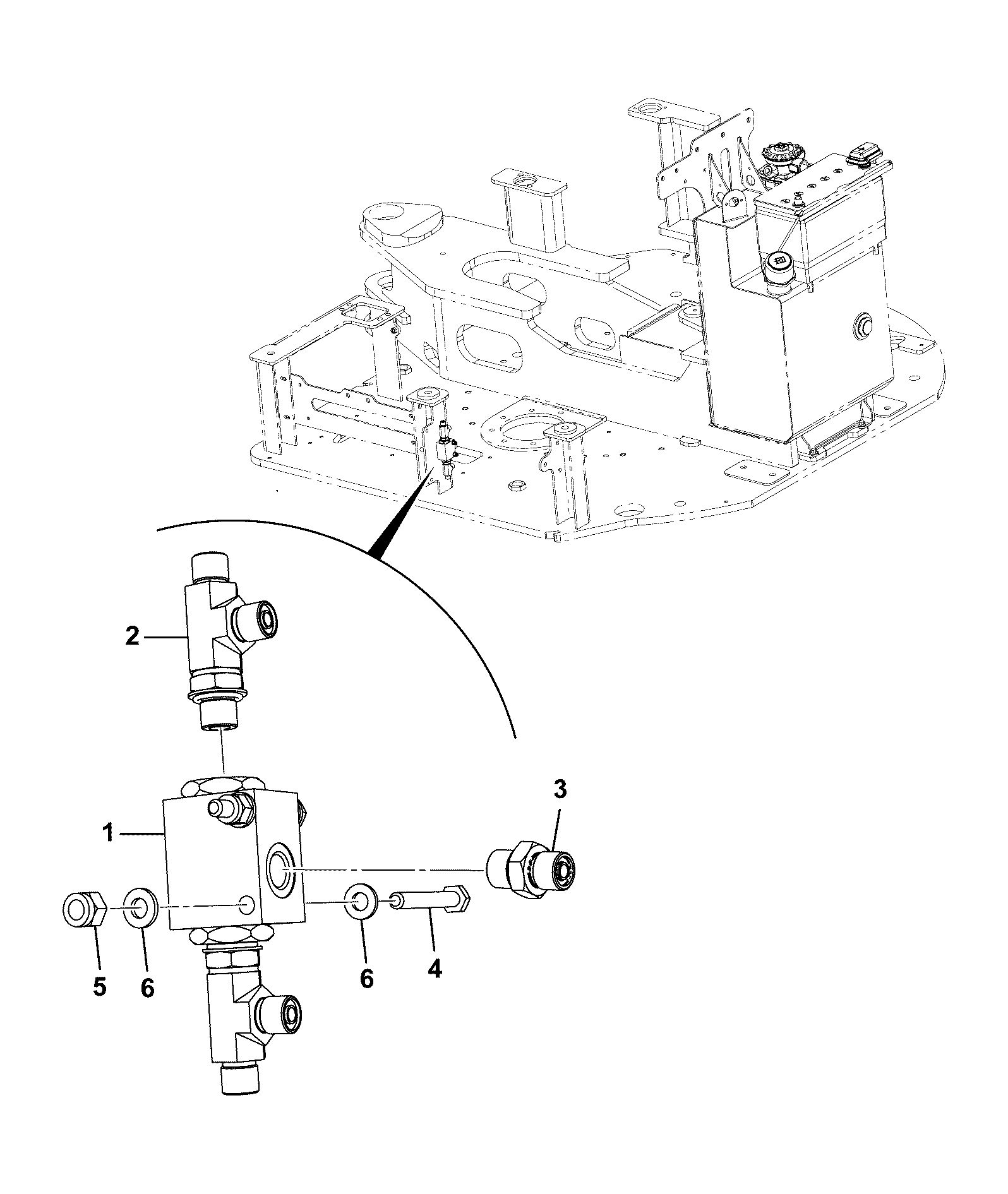

E390-45-1 OTHER VALVES COMPONENTS SHUTTLE VALVE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	VALVE SHUTTLE 25/221847	1	AVAILABLE TO ORDER	$230.40	Quantity
10	O Ring 333/L2867	1	AVAILABLE TO ORDER	$2.38	Quantity

Showing 1 to 2 of 2 parts
