Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HYD LS ITALIAN TBV 333/W4756 | 1 | $2,901.58 | |||
| 2 | WA - SAFIM MTG PLATE 334/V6634 | 1 | $100.16 | |||
| 3 | WA CLAMP PLATE - SAFIM VA 334/V6646 | 1 | $100.23 | |||
| 4 | (W) Screw 1315/0314D | 1 | $6.18 | |||
| 5 | SET SCREW M8x50 1315/0312D | 1 | $3.37 | |||
| 6 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $1.25 | |||
| 7 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 8 | PLUG - 1/4BSP 816/90014 | 1 | $9.55 | |||
| 9 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.62 | |||
| 10 | ADAPTOR 478/00405 | 1 | $8.88 | |||
| 11 | 1/4 BSP ADAPTOR 816/65127 | 1 | $11.09 | |||
| 12 | SAE ADAPTOR 9/16" UNF 816/90856 | 1 | $69.51 | |||
| 13 | .0MM TEE PIECE 816/90818 | 1 | $34.19 | |||
| 14 | PUMP ADAPTOR 3/8 BSP 933/20051 | 1 | $59.59 | |||
| 15 | CAP SCREW M6x20 (P313) (Reinstate) 1391/3205D | 1 | $6.47 | |||
| 16 | CAPSCREW, M6 x 40 (P545) 1391/3210D | 1 | $1.79 | |||
| 17 | ADAPTOR G1/2A-G3/8A 1606/0007 | 1 | $9.87 | |||
| 18 | COUPLING 477/00399 | 1 | $34.38 | |||
| 19 | HOSE 1/2 BSP HP 500A 33AM/AA050 | 1 | $43.80 | |||
| 20 | PIPE + SAFIM 334/U5164 | 1 | $317.38 | |||
| 21 | HOSE -08 BSP HP 1300mm C 33AM/EG130 | 1 | $82.16 | |||
| 22 | HOSE -08 BSP HP 1500mm C 33AM/CG150 | 1 | $88.97 | |||
| 23 | LABEL: HYD TRAILER BRAKE SPEED 332/W6155 | 1 | $9.78 | |||
| 25 | CLAMP (1EA = 2 HALF) 821/00285 | 1 | $4.84 | |||
| 26 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 27 | CLIP 821/00376 | 1 | $3.09 | |||
| 28 | BOLT M8 x 1.25p x 70Lg 1315/3316D | 1 | $0.00 | |||
| 29 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 30 | O Ring 2400/0107 | 1 | $0.51 | |||
| 31 | WASHER LOCK M6 823/10399 | 1 | $2.72 | |||
| 32 | AIR TUBE 10 MM RED 647/13800 | 1 | $5.58 | |||
| 33 | AIR TUBE 10 MM YELLOW (300mtr Roll) 647/13900 | 1 | $6.08 | |||
| 34 | TRAILER PARKBRAKE HARNESS 334/U3427 | 1 | $23.04 | |||
| 35 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.00 | |||
| 36 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 37 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 38 | 8MM - M16 STUD 816/90821 | 1 | $18.03 | |||
| 39 | M16 BRACKETED TEE PIECE 816/90844 | 1 | $36.97 | |||
| 40 | SPECIAL CONNECTOR 816/90842 | 1 | $10.64 | |||
| 41 | PRESSURE SWITCH LINK LEAD 334/U0418 | 1 | $38.21 | |||
| 42 | STOP LIGHT SWITCH 701/26000 | 1 | $0.00 | |||
Showing 1 to 41 of 41 parts
Related Assemblies
-
DIAG-E330-10-1-393745 E330-10-1 VALVES STEERING VALVE COMPONENTS STEERING VALVE COMPONENTS
View Diagram -

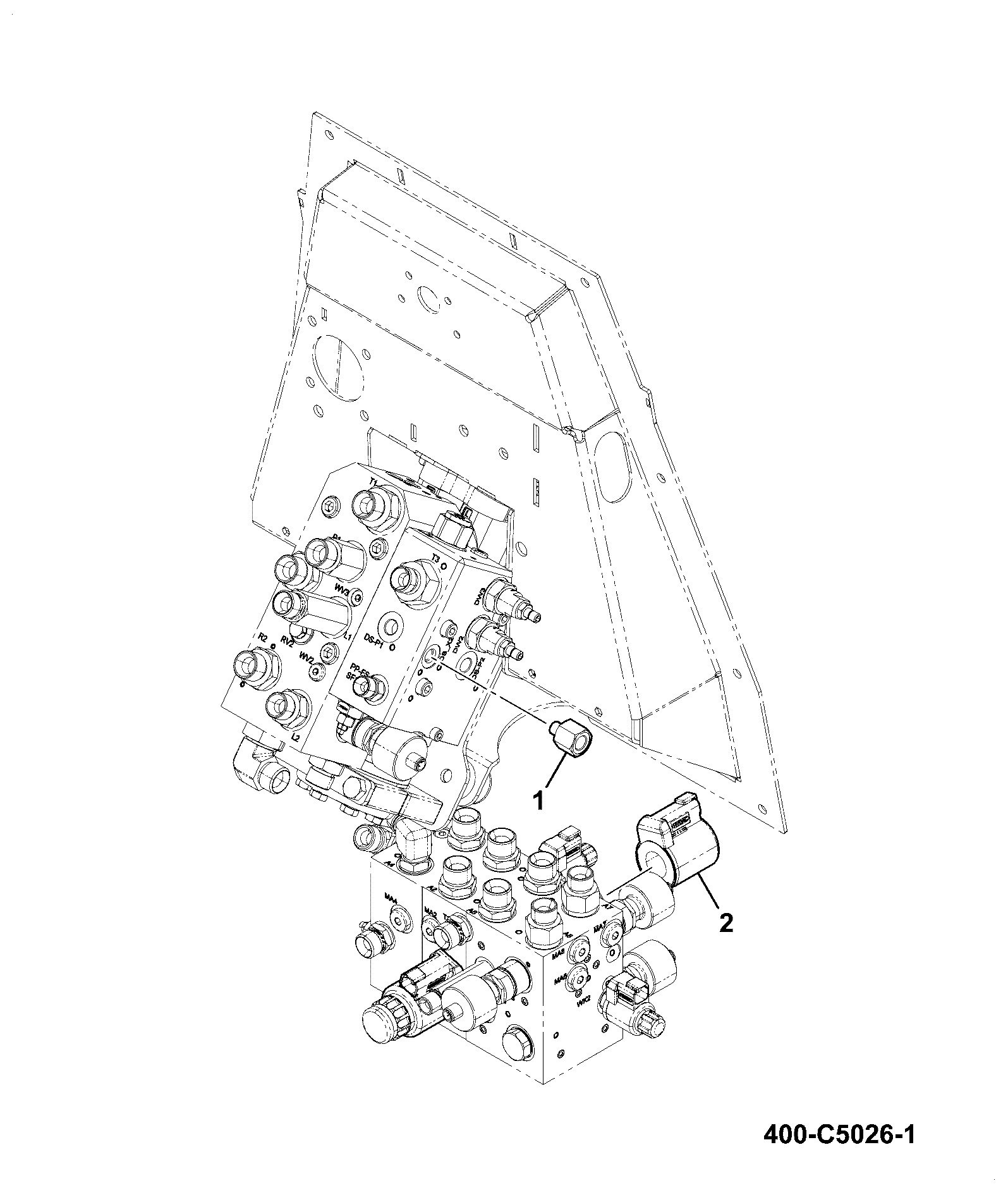

DIAG-E190-15-1-393745 E190-15-1 OTHER HYDRAULIC CIRCUITS HOSE INSTALLATION NO POWER BEYOND
View Diagram -

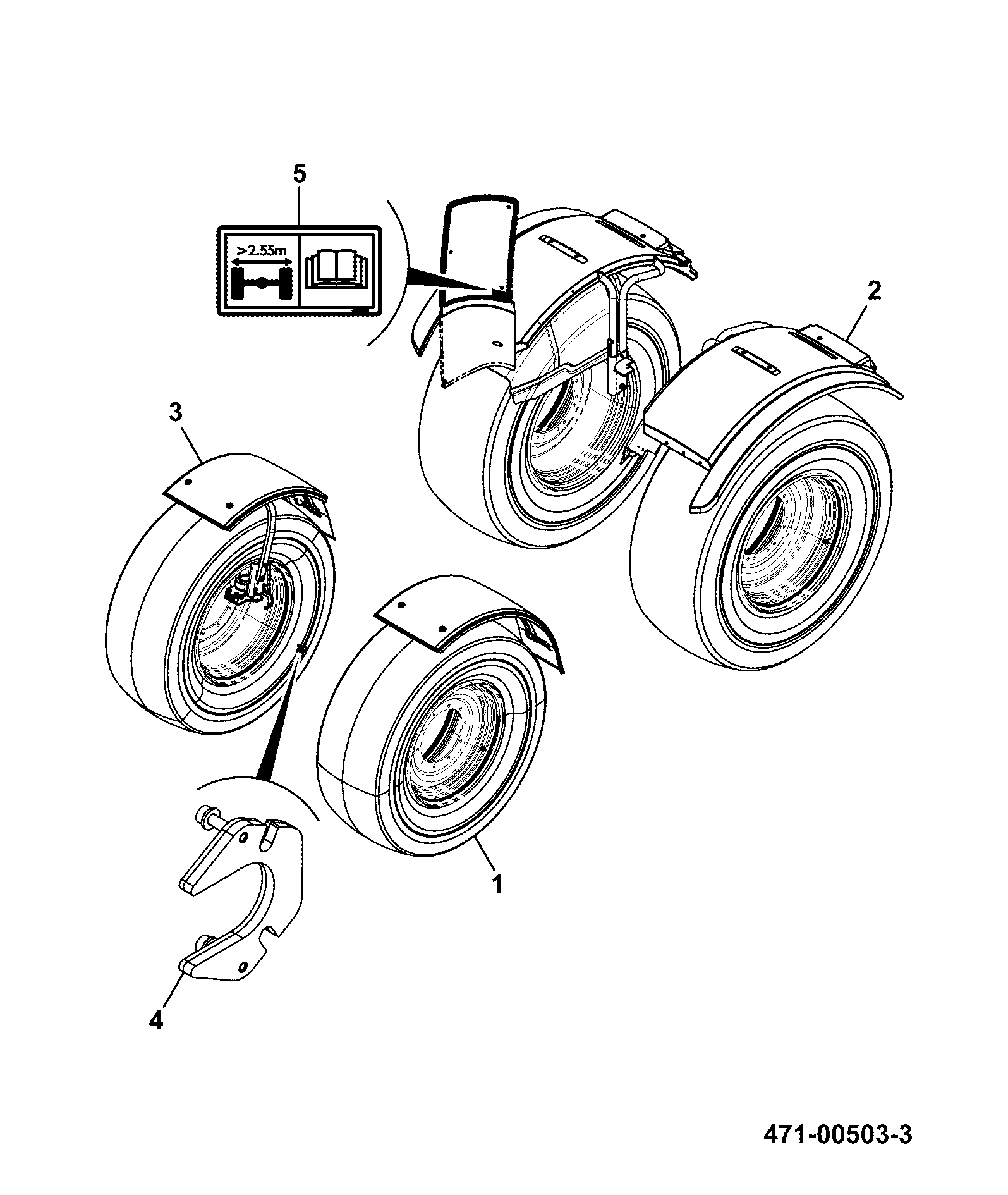

DIAG-F300-65-5-393745 F300-65-5 WHEELS AND TYRES ASSEMBLY TRELLBORG WHEELS
View Diagram
