E390-40-1 OTHER VALVES SOLENOID Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	KIT SEAL KIT 3 "O 332/C8109 25/223660	1	AVAILABLE TO ORDER	$88.90	Quantity
A	VALVE - CARTRIDGE 142 MIC 25/222913 25/004050	1	AVAILABLE TO ORDER	$174.69	Quantity

Showing 1 to 2 of 2 parts

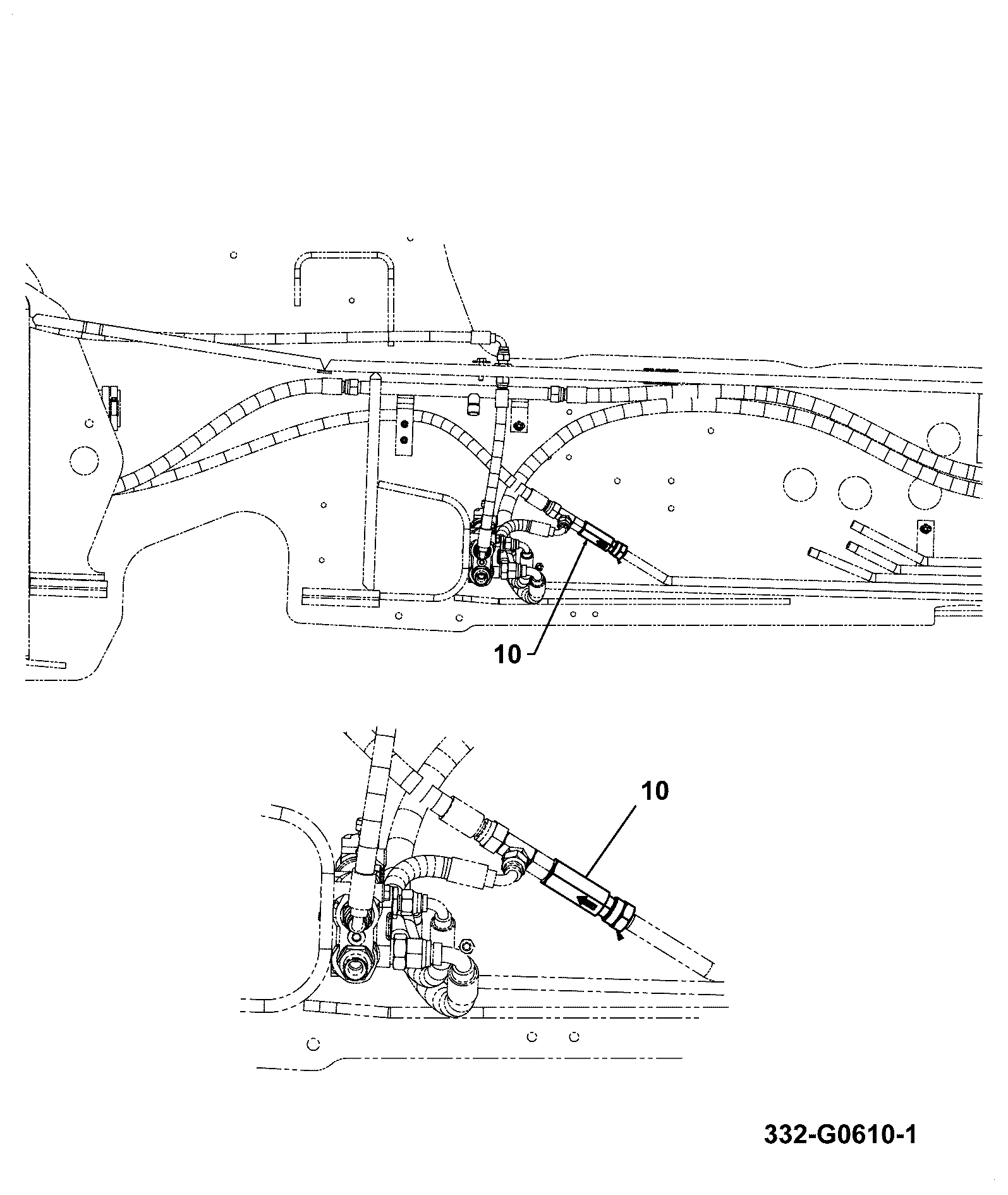

DIAG-E390-25-1-400947 E390-25-1 OTHER VALVES STEERING CHECK VALVE
View Diagram

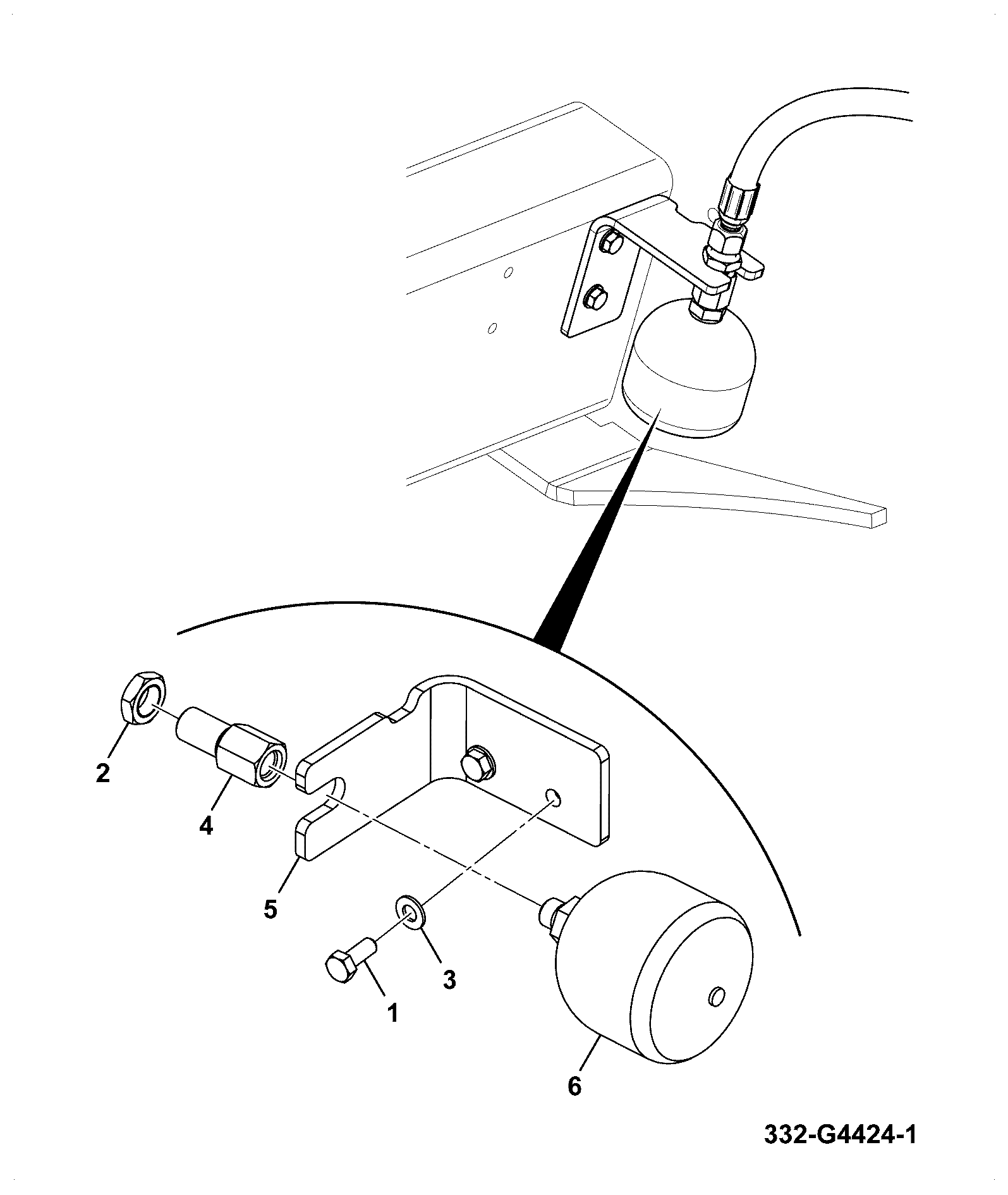

DIAG-E390-10-1-400947 E390-10-1 OTHER VALVES ACCUMULATOR PILOT
