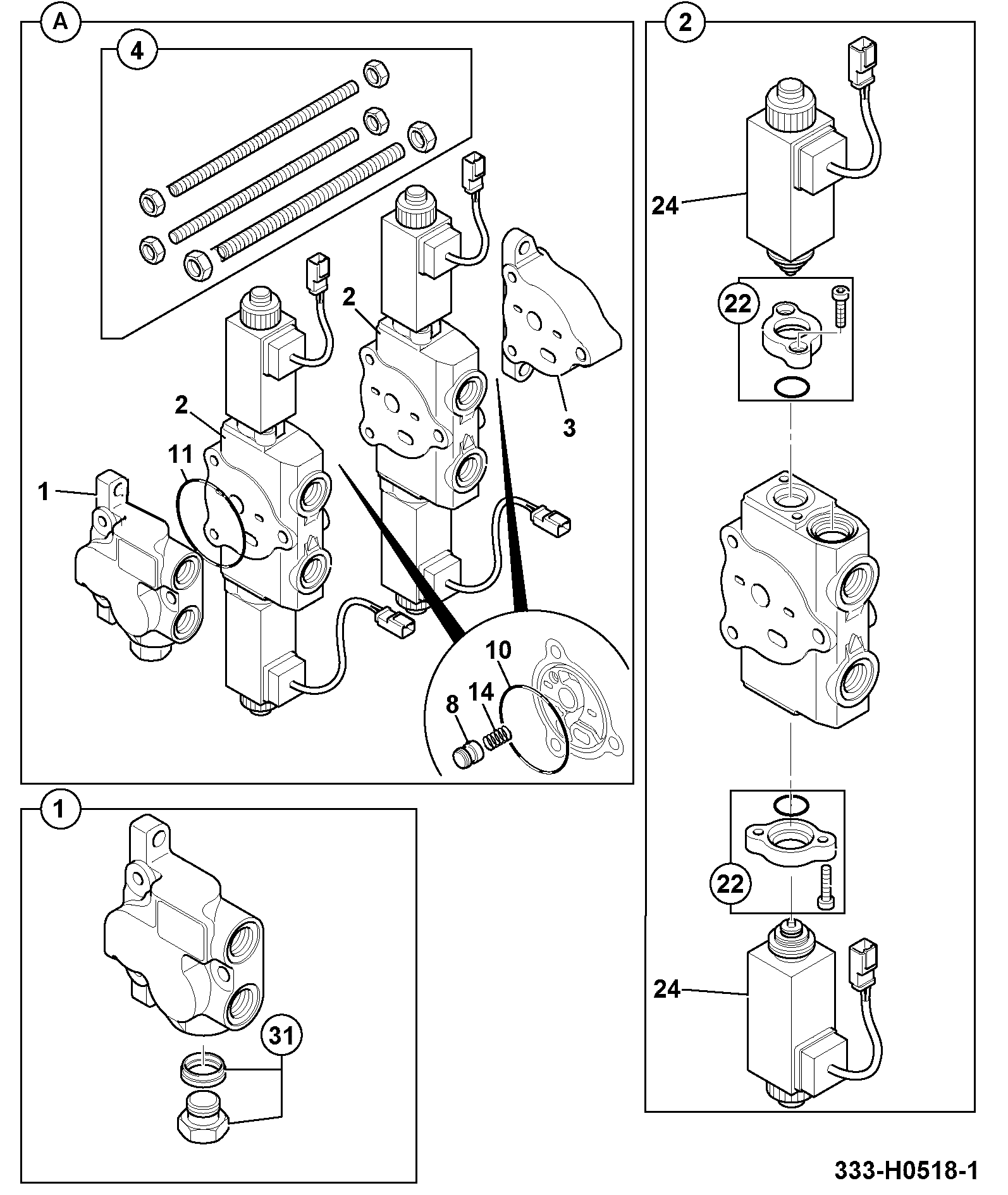

E390-31-1 OTHER VALVES HAMMER COMBINATION, EASYCONTROL, OCVP, T4i Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Coil only 332/G3836	1	AVAILABLE TO ORDER	$165.08	Quantity
2	Nut 333/E9204	1	AVAILABLE TO ORDER	$35.47	Quantity
3	cartridge 333/H2948	1	AVAILABLE TO ORDER	$307.88	Quantity
4	Solenoid cartridge 333/H2949	1	AVAILABLE TO ORDER	$404.50	Quantity
A	VALVE-COMBO HAMMER 333/E2745	1	AVAILABLE TO ORDER	$1,665.49	Quantity

Showing 1 to 5 of 5 parts

DIAG-E390-39-2-394857 E390-39-2 OTHER VALVES AUXILIARY SINGLE SPOOL, DIRECT CONTROL WITH POWERSLIDE, OCVP, T4i
View Diagram

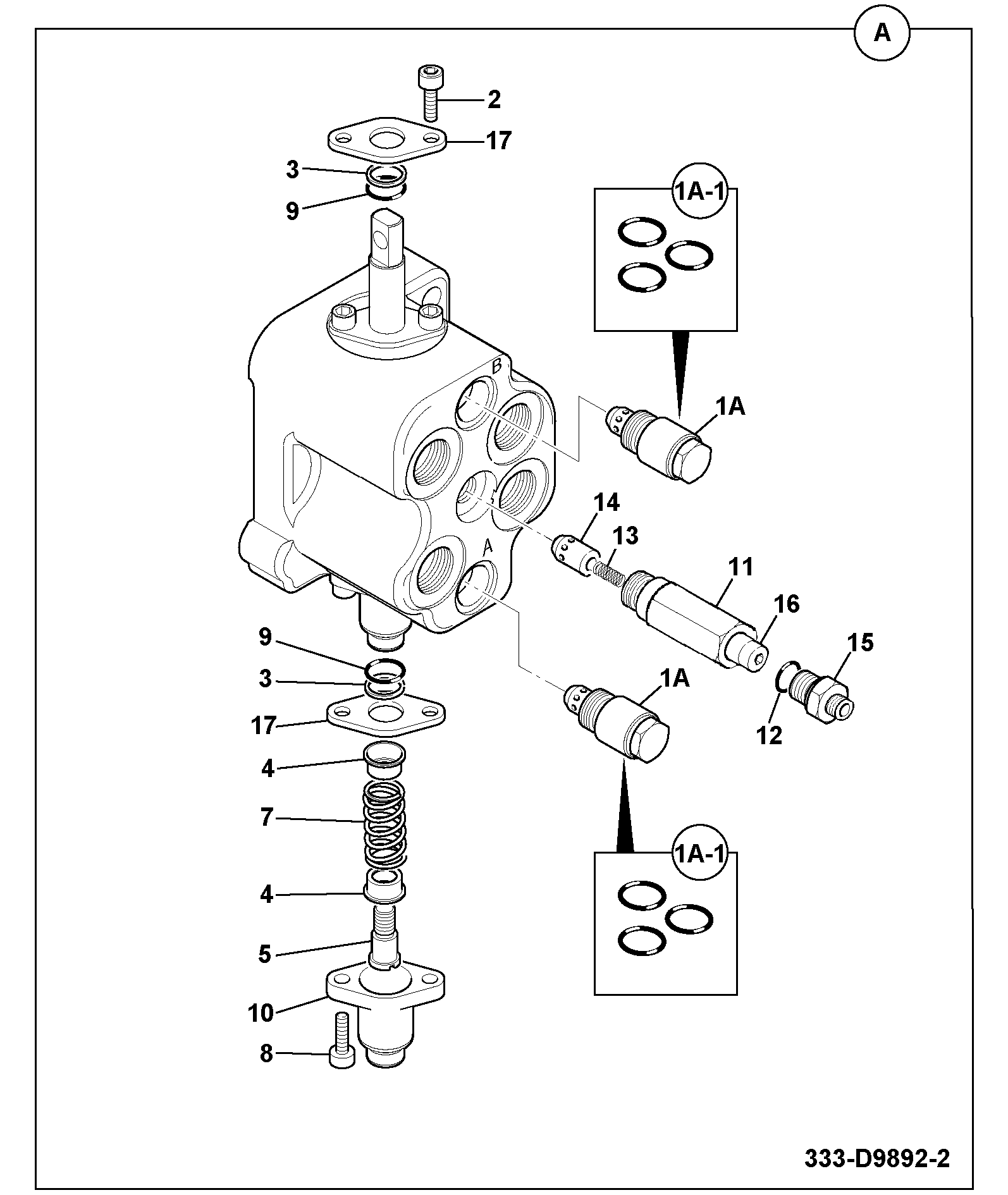

DIAG-E390-41-1-394857 E390-41-1 OTHER VALVES AUXILIARY TWO SPOOL
