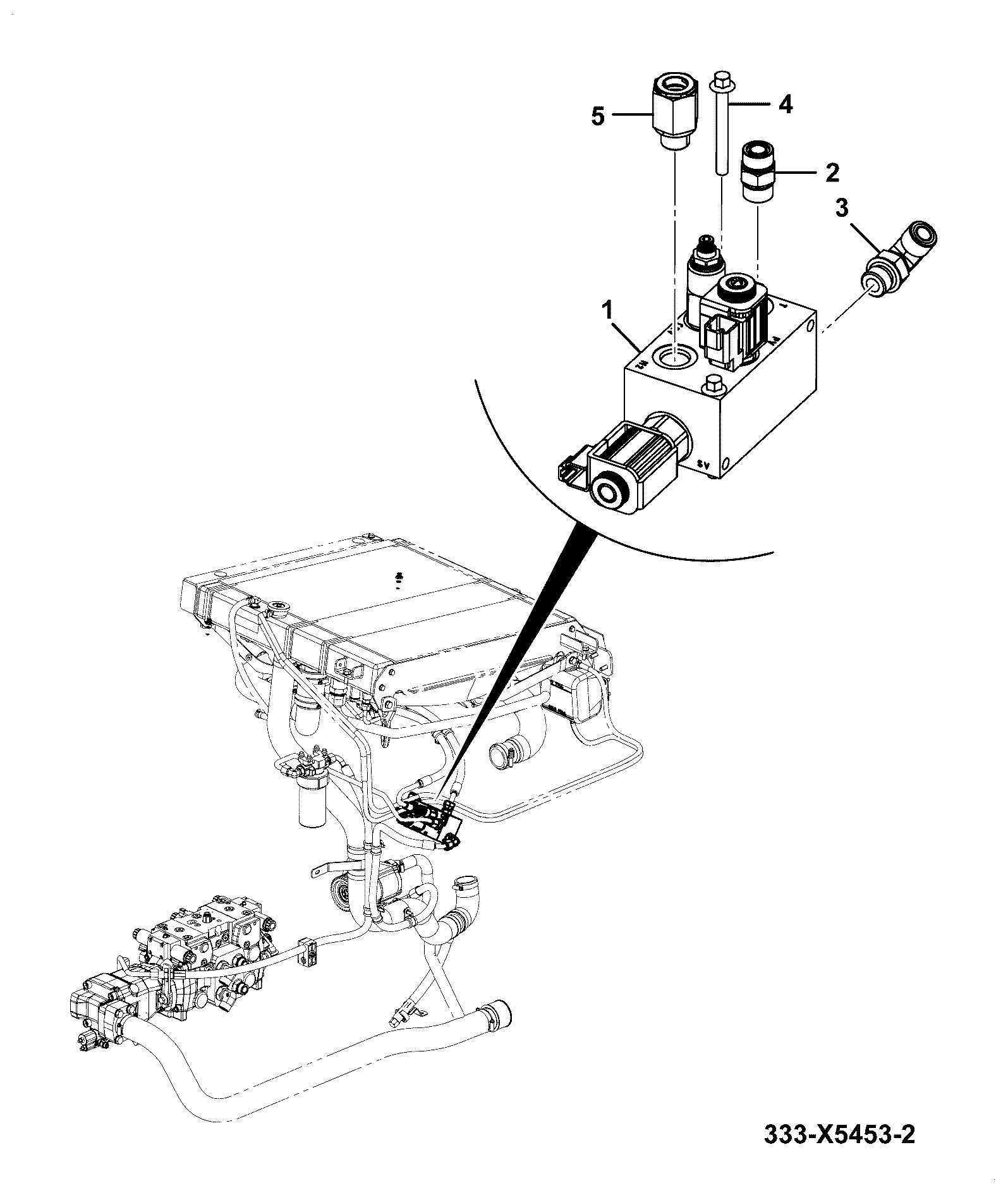

E390-25-1 OTHER VALVES COMPONENTS VALVE – SMOOTH RIDE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve 25/223762	1	AVAILABLE TO ORDER	$338.42	Quantity
2	Kit 25/223767	1	AVAILABLE TO ORDER	$23.83	Quantity
4	Seal Kit 400/00148	1	AVAILABLE TO ORDER	$15.71	Quantity
6	Kit seal 400/14362 332/G3368	1	AVAILABLE TO ORDER	$24.92	Quantity
7	COIL 332/L6856	1	AVAILABLE TO ORDER	$109.11	Quantity
8	COIL 332/L6857	1	AVAILABLE TO ORDER	$90.44	Quantity
A	VALVE - SMOOTH RIDE 333/X0227	1	AVAILABLE TO ORDER	$770.95	Quantity

Showing 1 to 7 of 7 parts
