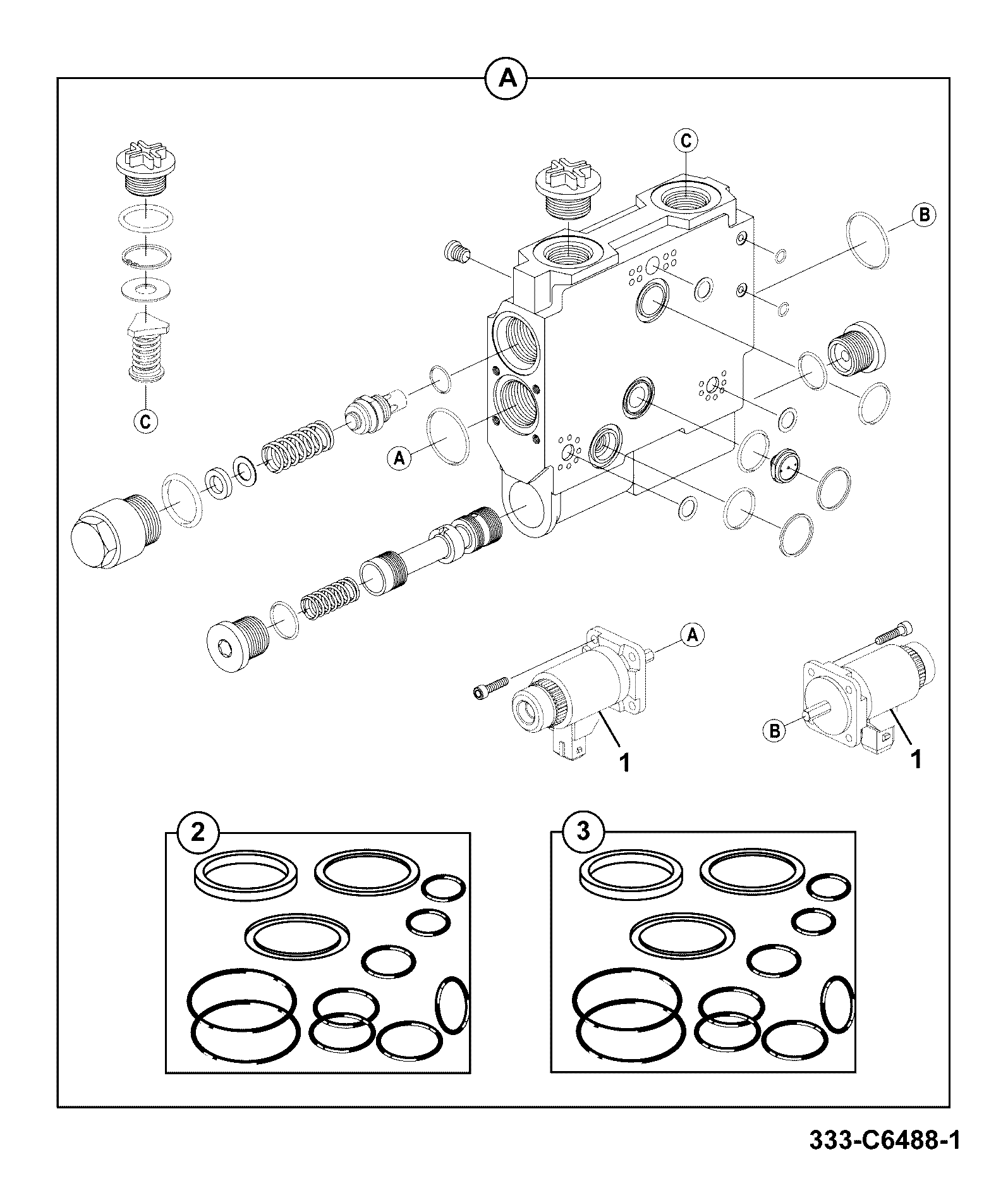

E390-235-1 OTHER VALVES 4 SPOOL VALVE Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	VALVE - 4 SPOOL SB23 333/V4276	1	AVAILABLE TO ORDER	$10,746.05	Quantity
1	Cover 333/C6481	1	AVAILABLE TO ORDER	$3,586.42	Quantity
2	Valve control sect 25/220740 25/988401	1	AVAILABLE TO ORDER	$3,426.47	Quantity
3	Directional Control Valve 335/G1256	1	AVAILABLE TO ORDER	$4,385.59	Quantity
4	Valve end plate ho 25/988395	1	AVAILABLE TO ORDER	$2,805.51	Quantity

Showing 1 to 5 of 5 parts

DIAG-E390-230-1-393660 E390-230-1 OTHER VALVES 5 SPOOL VALVE
View Diagram
DIAG-E390-245-1-393660 E390-245-1 OTHER VALVES CONTROL VALVE
View Diagram
DIAG-E390-225-1-393660 E390-225-1 OTHER VALVES 6 SPOOL VALVE
View Diagram

Previous Assembly DIAG-E390-230-1-393660 E390-230-1 OTHER VALVES 5 SPOOL VALVE Next Assembly DIAG-E390-245-1-393660 E390-245-1 OTHER VALVES CONTROL VALVE
