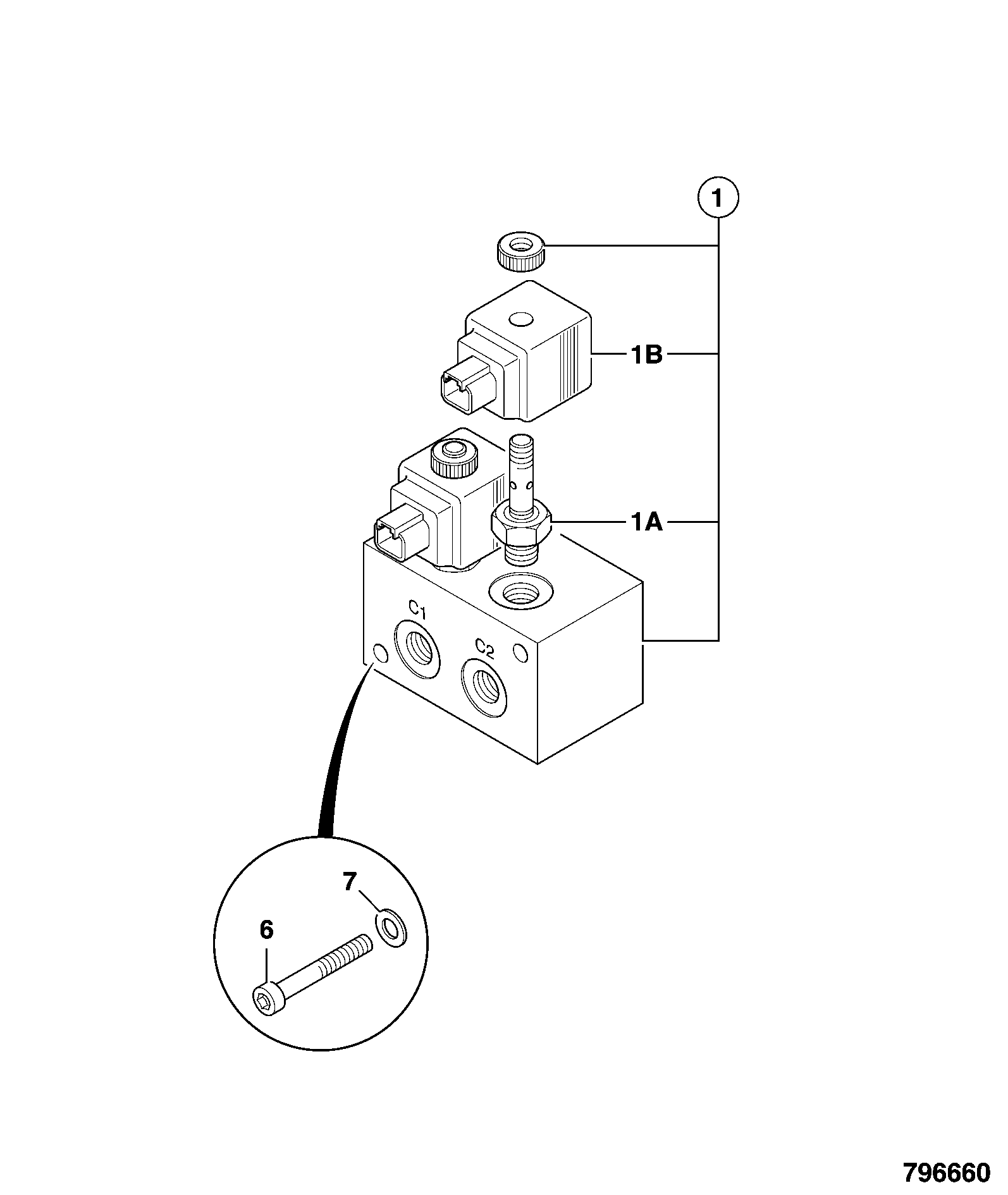

E390-20-1 OTHER VALVES ISOLATOR/REDUCING COMPONENTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Coil 333/G1725	1	AVAILABLE TO ORDER	$95.63	Quantity
1A	Coil 12V 334/E6143	1	AVAILABLE TO ORDER	$37.80	Quantity
2	Kit priority valve 332/E9054	1	AVAILABLE TO ORDER	$506.52	Quantity
A	ISOLATOR/REDUCING VALVE 333/R5991	1	AVAILABLE TO ORDER	$517.32	Quantity

Showing 1 to 4 of 4 parts
