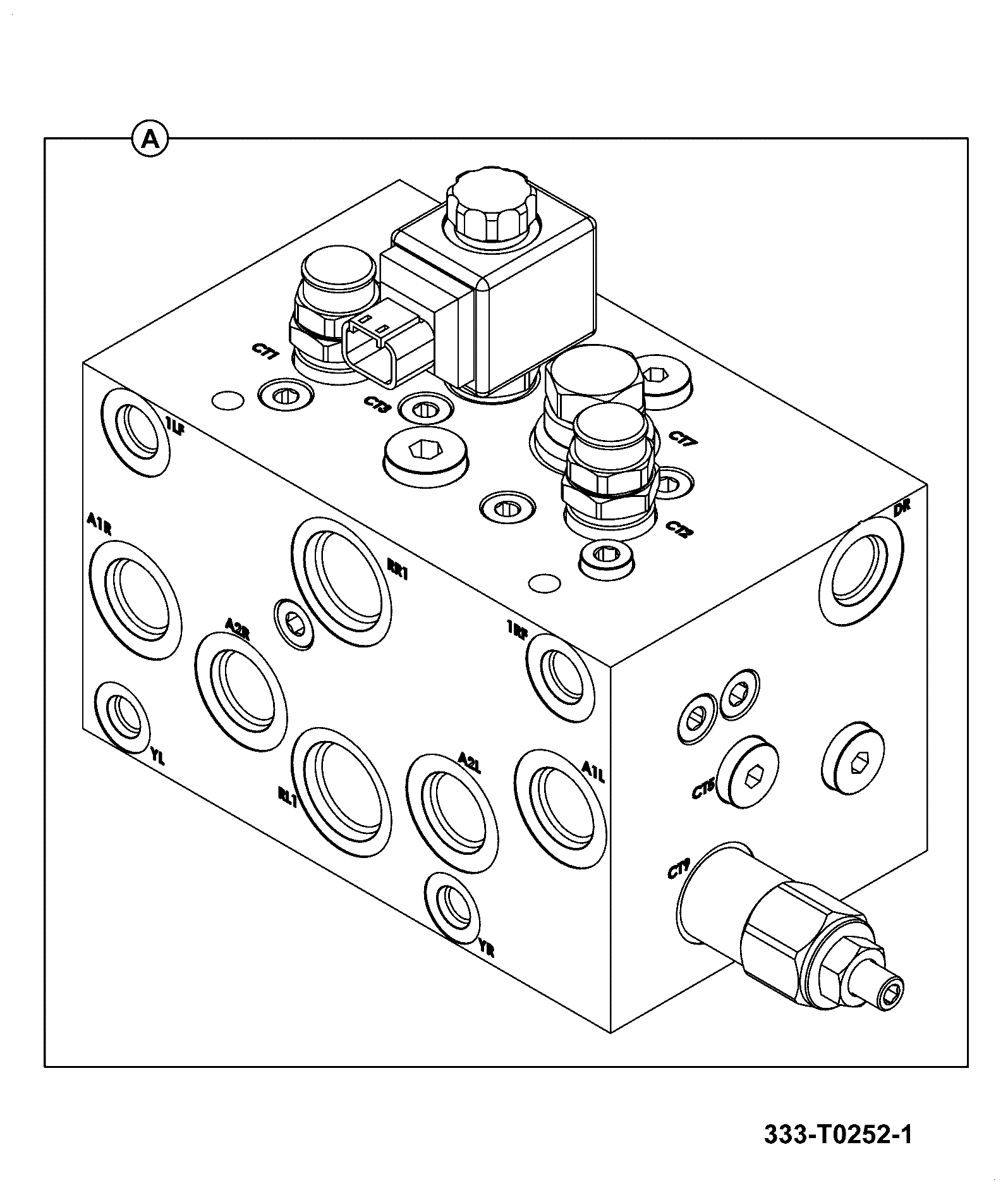

E390-20-1 OTHER VALVES COMBINATION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Seal 333/F2142	1	AVAILABLE TO ORDER	$81.23	Quantity
1	VALVE - COMBINATION VALVE (LLMC) 333/R8808	1	AVAILABLE TO ORDER	$1,487.97	Quantity
2	Valve Solenoid 333/C8773	1	AVAILABLE TO ORDER	$633.60	Quantity
6	Valve Coil 333/F4081 333/E5848	1	AVAILABLE TO ORDER	$97.76	Quantity
7	Valve 333/F2141	1	AVAILABLE TO ORDER	$406.96	Quantity

Showing 1 to 5 of 5 parts
