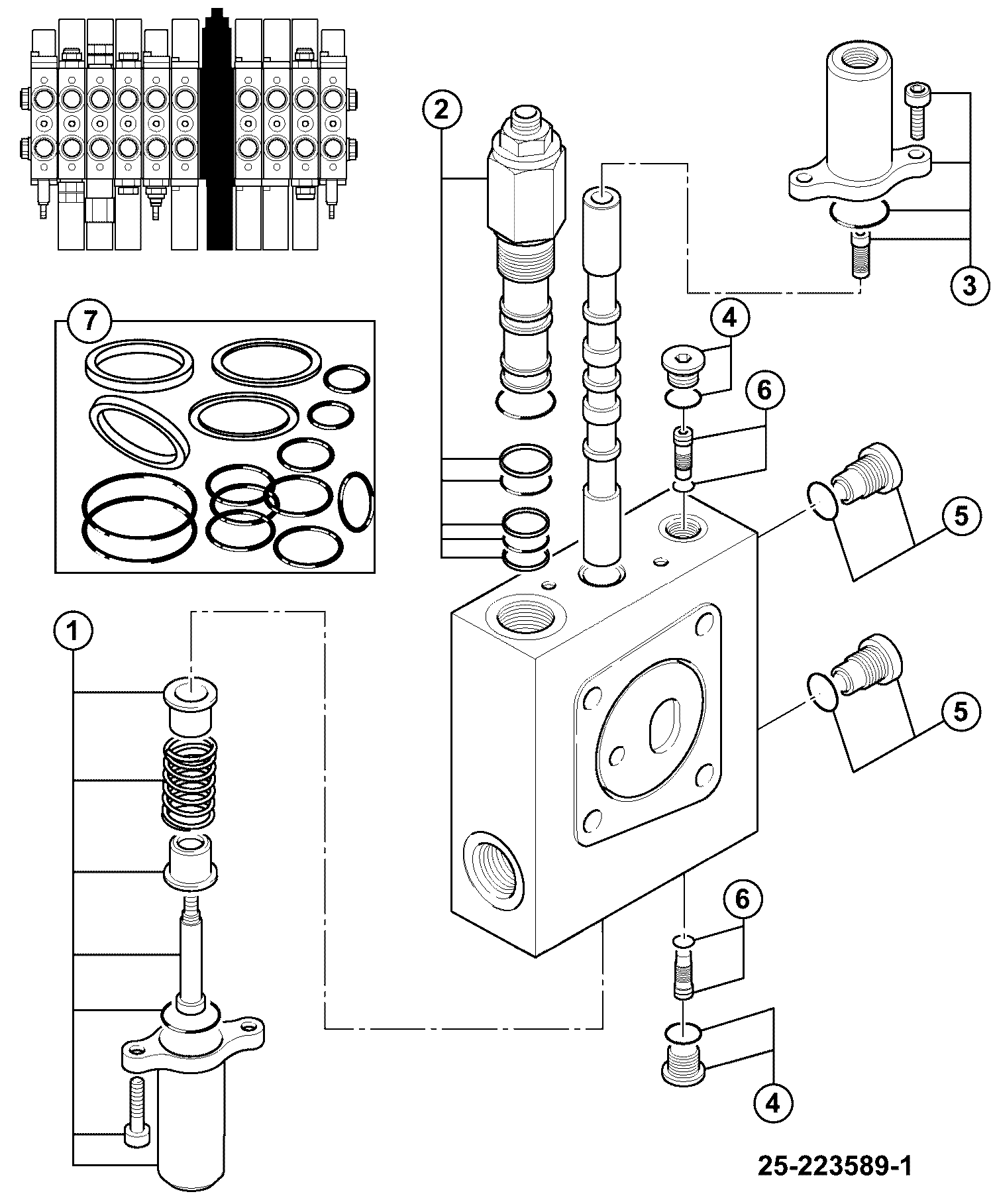

E390-16-1 OTHER VALVES SECTIONS BOOM BOOST Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Valve 25/223590	1	AVAILABLE TO ORDER	$1,454.42	Quantity
1	Kit pilot cap long 928/60175	1	AVAILABLE TO ORDER	$275.35	Quantity
2	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
3	Kit plug 928/60179	1	AVAILABLE TO ORDER	$33.03	Quantity
4	Kit pilot cap shor 928/60173	1	AVAILABLE TO ORDER	$349.71	Quantity
5	Seal Kit 333/P1567	1	AVAILABLE TO ORDER	$126.40	Quantity

Showing 1 to 6 of 6 parts
