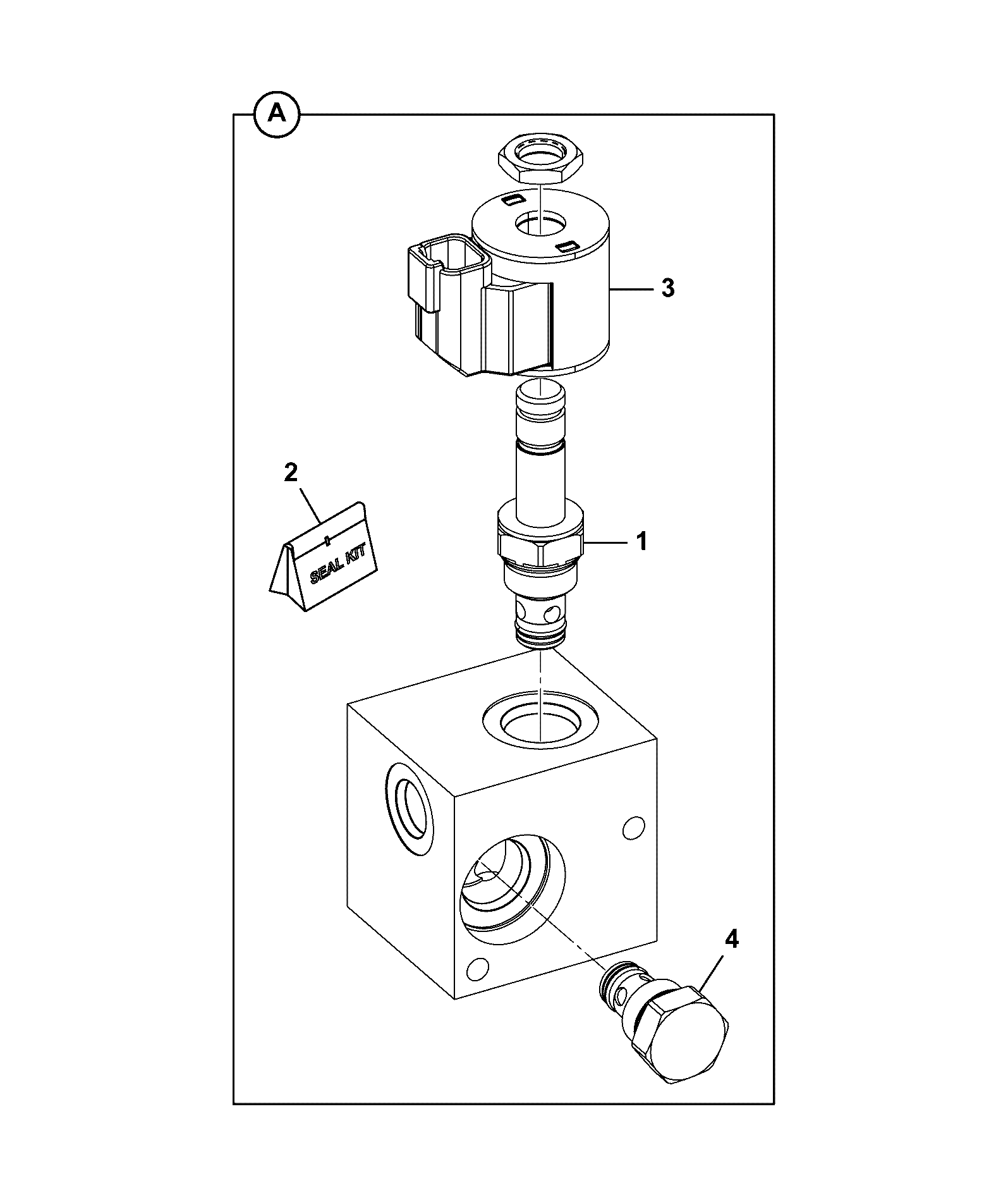

E390-15-1 OTHER VALVES SOLENOID VALVE, 3 PORTS, COMPONENTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	SOLENOID VALVE 3 PORTS 332/B6928	1	AVAILABLE TO ORDER	$333.40	Quantity
2	Coil 336/A5510	1	AVAILABLE TO ORDER	$4.62	Quantity
3	COIL 332/L6857	1	AVAILABLE TO ORDER	$90.44	Quantity

Showing 1 to 3 of 3 parts

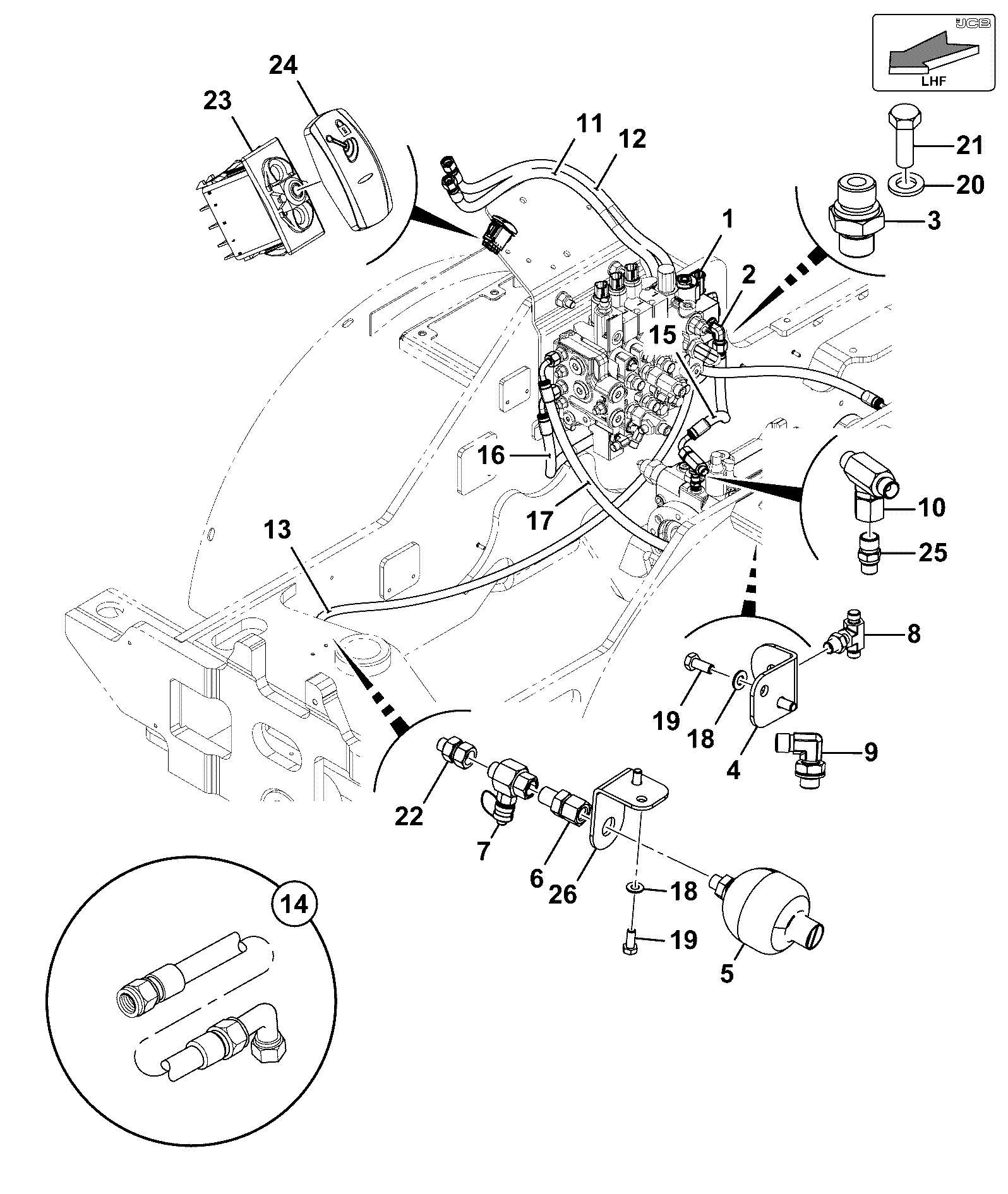

DIAG-E340-10-1-402956 E340-10-1 VALVES SERVO CONTROL (PILOT CONTROL) SERVO ISOLATION GA
