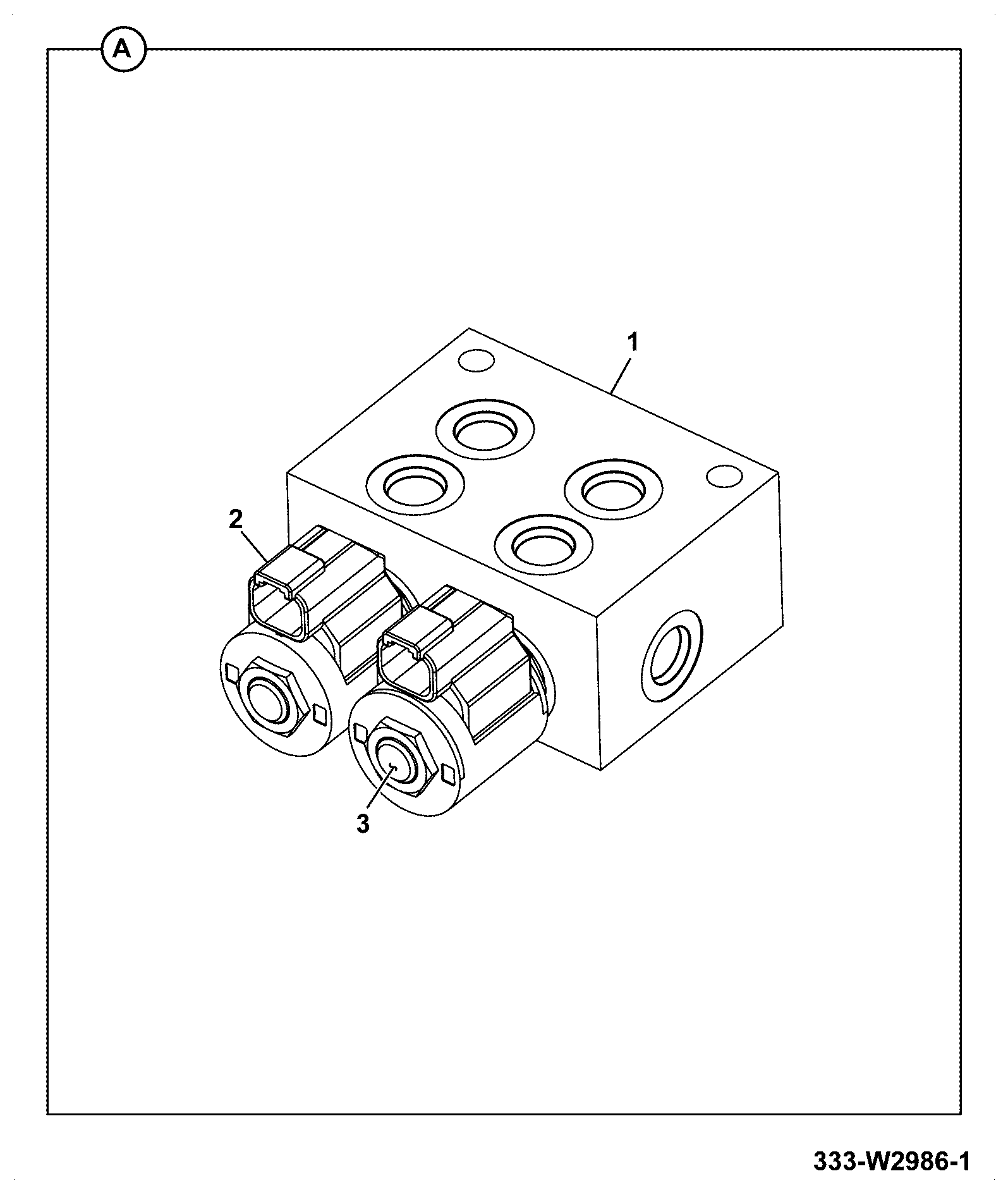

E390-140-1 OTHER VALVES MANIFOLD RETURN, DETAIL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve 25/223762	1	AVAILABLE TO ORDER	$338.42	Quantity
2	Seal Kit SK10 400/23770	1	AVAILABLE TO ORDER	$26.50	Quantity
3	Valve Coil 333/F4081 333/E5848	1	AVAILABLE TO ORDER	$97.76	Quantity
5	Seal Kit 400/14427	1	AVAILABLE TO ORDER	$27.41	Quantity
A	HYD RETURN MANIFOLD DA 333/W2231 334/V2958	1	AVAILABLE TO ORDER	$728.37	Quantity

Showing 1 to 5 of 5 parts
