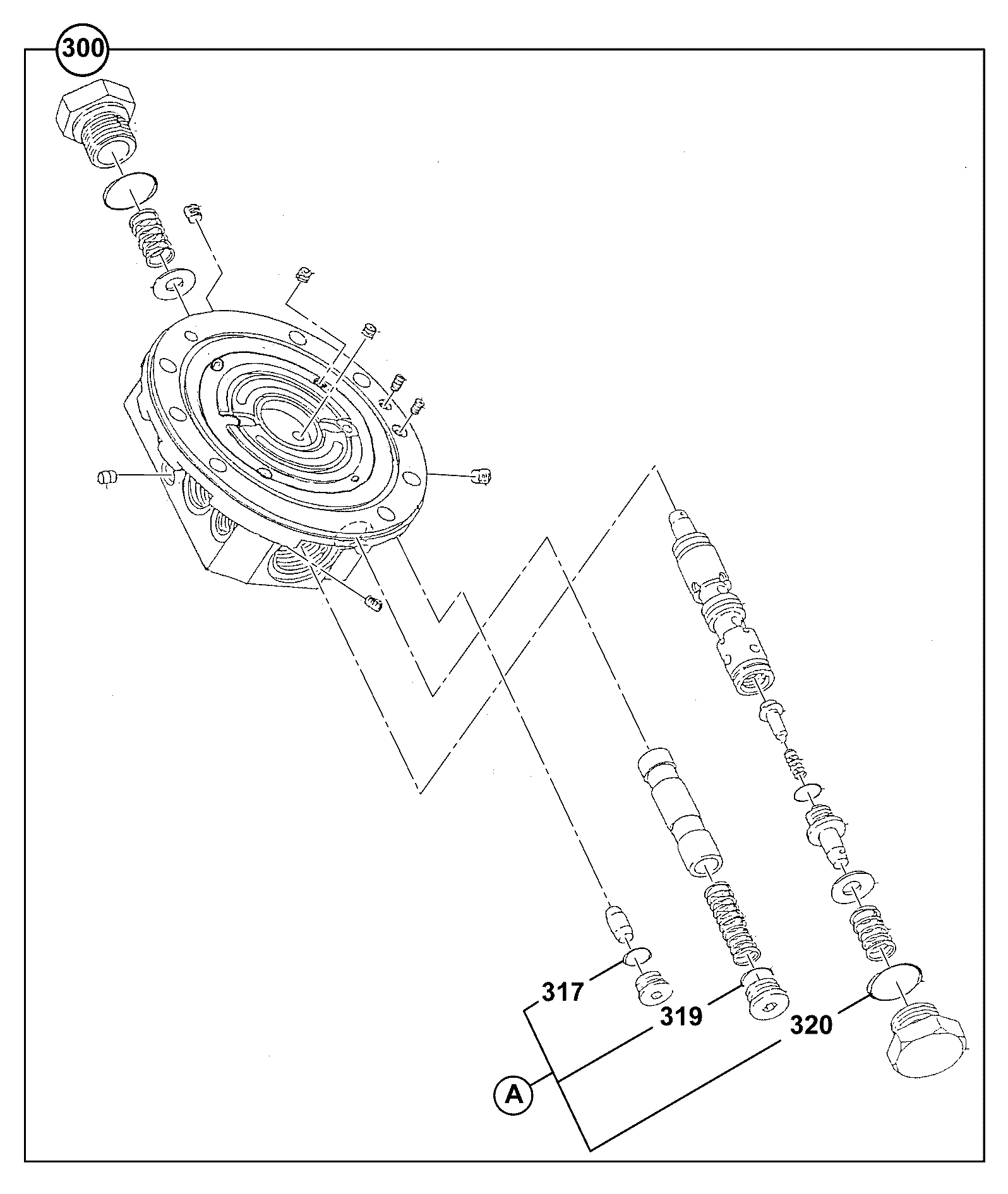

E390-105-1 OTHER VALVES SECTIONS DIPPER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit Pilot Cap 25/223626	1	AVAILABLE TO ORDER	$119.15	Quantity
2	KIT, ANTI-SHOCK 928/60182	1	AVAILABLE TO ORDER	$449.92	Quantity
3	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
4	Kit Pilot Cap 332/D6906 25/223625	1	AVAILABLE TO ORDER	$64.43	Quantity
5	Seal kit 333/L0707	1	AVAILABLE TO ORDER	$143.36	Quantity
A	Valve section 332/D6903	1	AVAILABLE TO ORDER	$1,506.84	Quantity

Showing 1 to 6 of 6 parts

DIAG-E390-100-1-397948 E390-100-1 OTHER VALVES KIT VALVE HOUSING
View Diagram
DIAG-E390-110-1-397948 E390-110-1 OTHER VALVES ADAPTORS MAIN VALVE
View Diagram

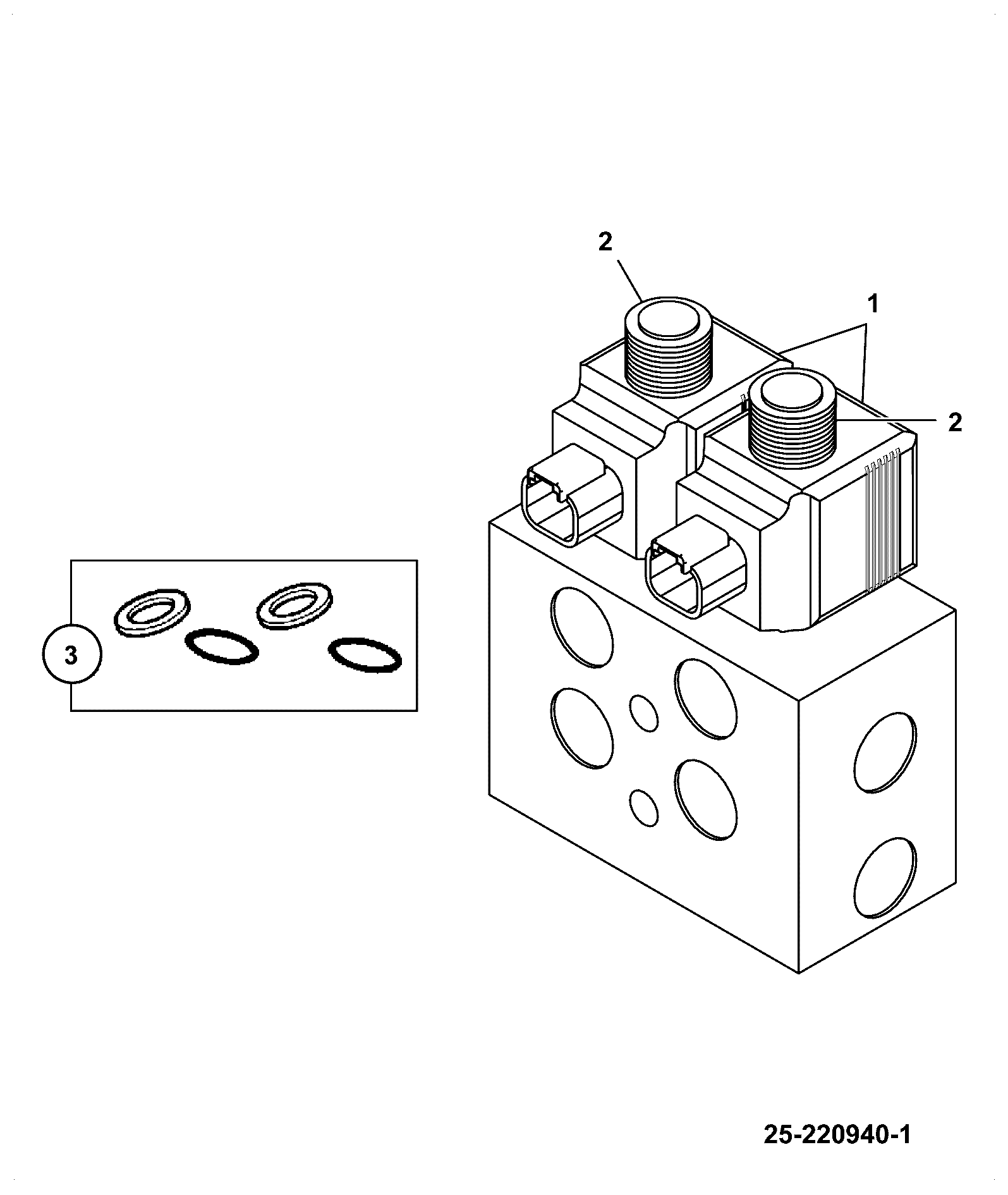

DIAG-E390-95-1-397948 E390-95-1 OTHER VALVES DUAL SOLENOID VALVE
View Diagram

Previous Assembly DIAG-E390-100-1-397948 E390-100-1 OTHER VALVES KIT VALVE HOUSING Next Assembly DIAG-E390-110-1-397948 E390-110-1 OTHER VALVES ADAPTORS MAIN VALVE
