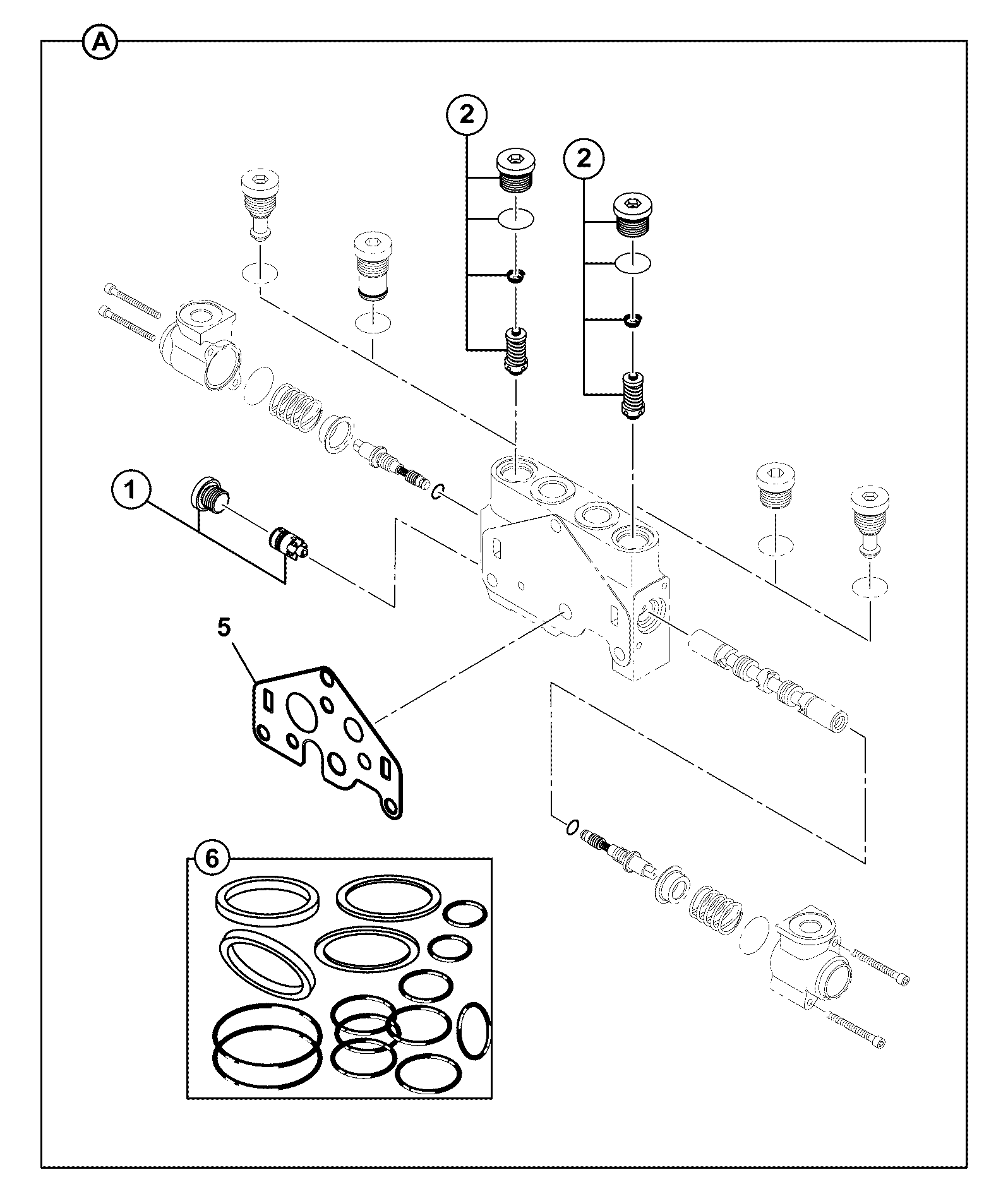

E390-105-1 OTHER VALVES VALVE SECTION, SWING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Pressure compensator kit 400/00846	1	AVAILABLE TO ORDER	$256.98	Quantity
2	Anti-cavitation check val 400/00850	1	AVAILABLE TO ORDER	$272.56	Quantity
3	Plug Q(special SX1 334/D1203 25/223490	1	AVAILABLE TO ORDER	$87.63	Quantity
5	Seals plate 400/00839	1	AVAILABLE TO ORDER	$184.11	Quantity
6	Seal Kit 400/00841	1	AVAILABLE TO ORDER	$159.18	Quantity

Showing 1 to 5 of 5 parts
