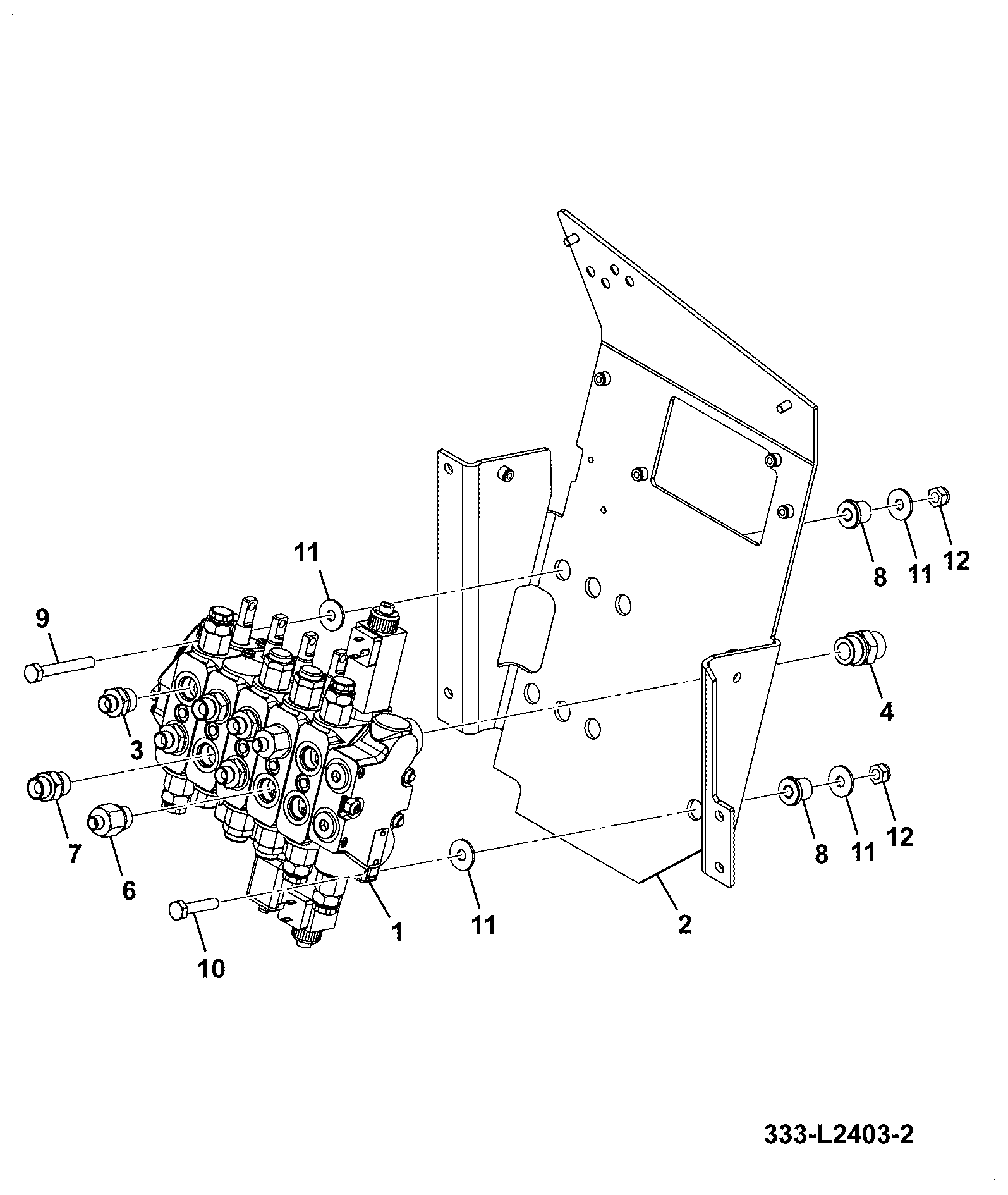

E390-105-1 OTHER VALVES SECTION AUXILIARY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
6	Valve Auxiliary Section 400/L4389	1	AVAILABLE TO ORDER	$1,023.98	Quantity
6B	Special Anti-Load Drop Ch 400/04884	1	AVAILABLE TO ORDER	$346.07	Quantity

Showing 1 to 2 of 2 parts
