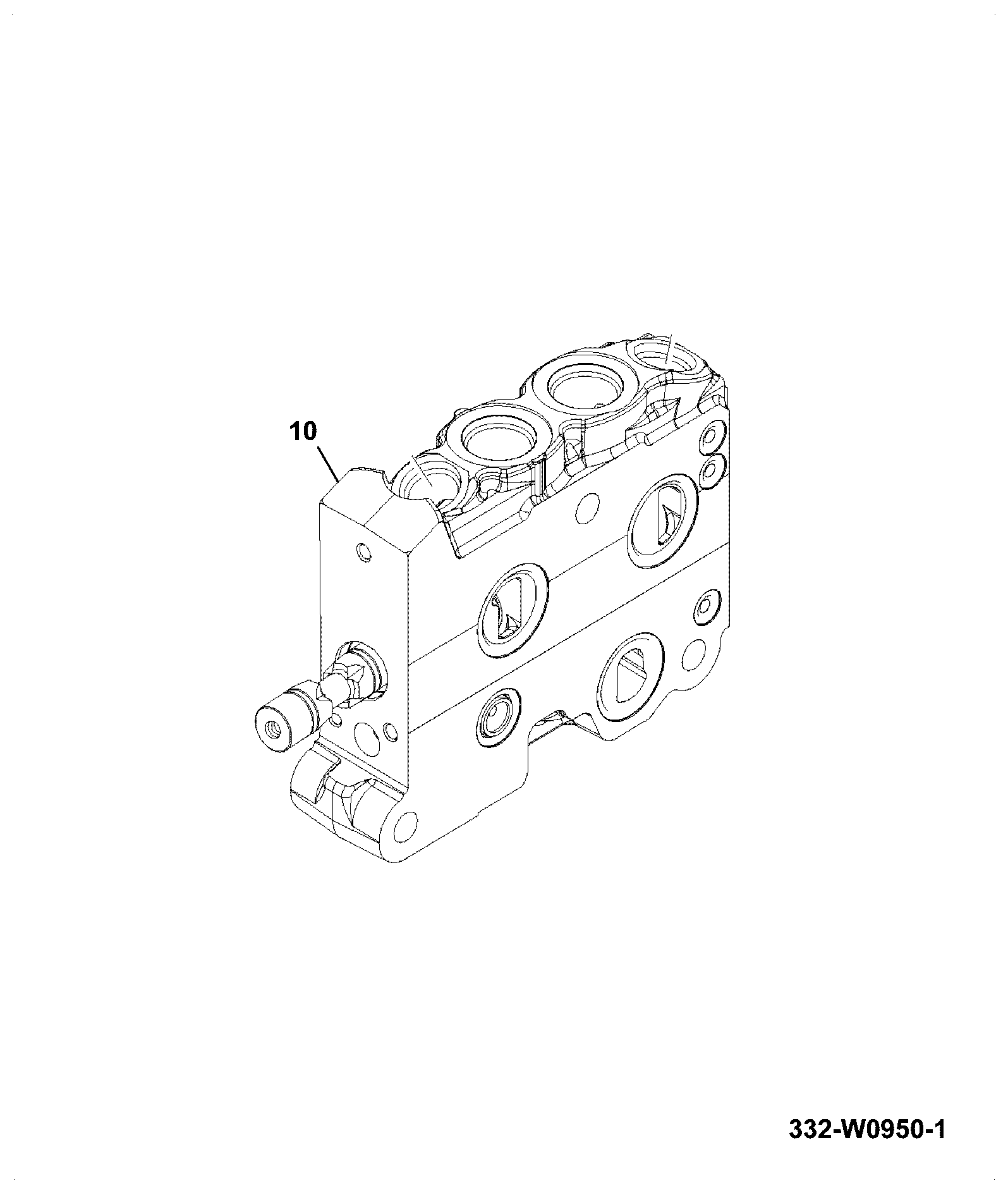

E390-1-1 OTHER VALVES AUXILIARY RELIEF 4 SPOOL ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ARV 400/C7144	1	AVAILABLE TO ORDER	$1,517.20	Quantity
	ARV 400/C7148	1	AVAILABLE TO ORDER	$318.41	Quantity
11	ARV 332/W0940	1	AVAILABLE TO ORDER	$240.57	Quantity

Showing 1 to 3 of 3 parts
