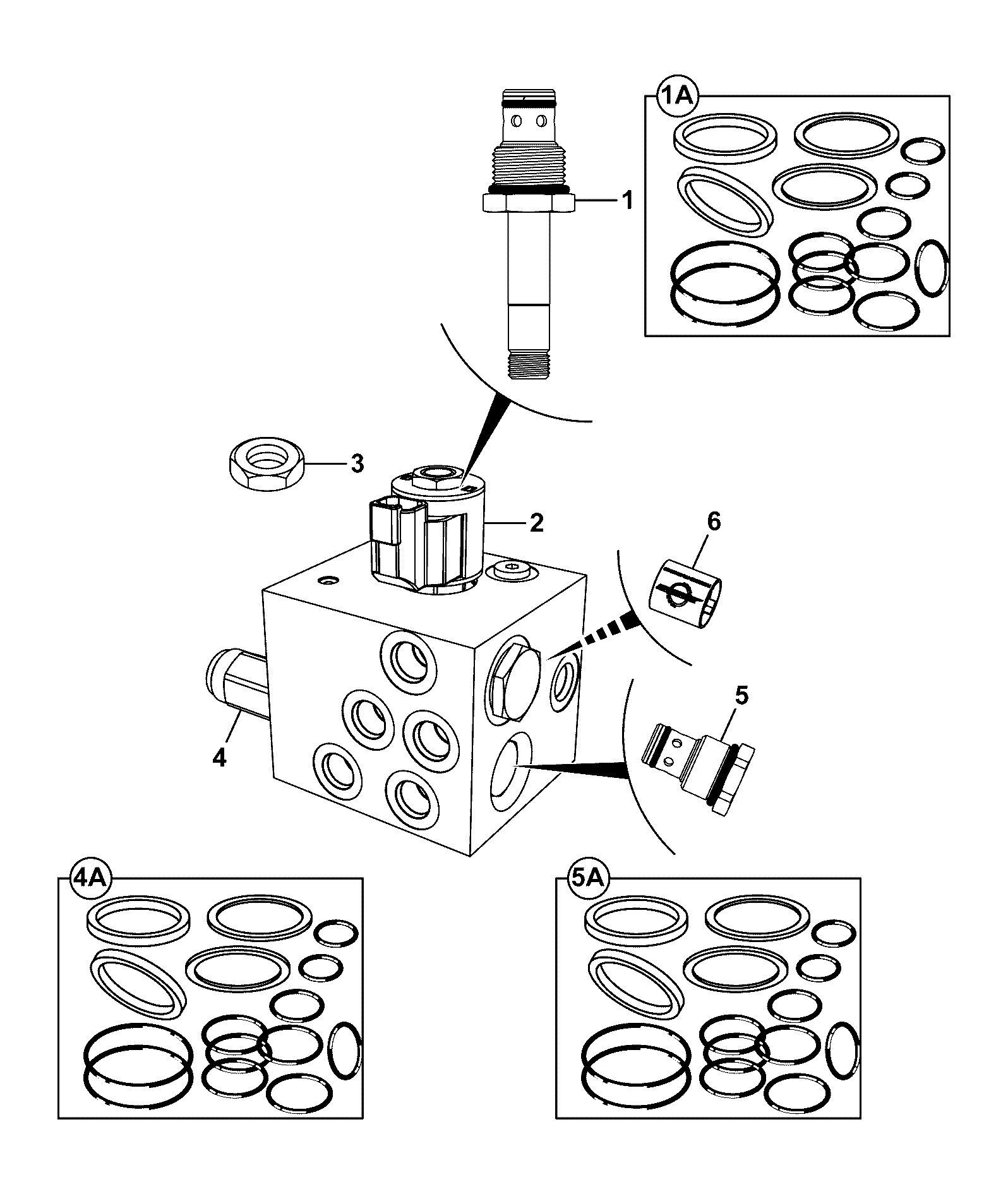

E340-5-1 VALVES SERVO CONTROL (PILOT CONTROL) PILOT VALVE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	PILOT VALVE 401/M8958 402/P6059	1	AVAILABLE TO ORDER	$1,017.87	Quantity
1	Pressure Reducing Valve 400/17665	1	AVAILABLE TO ORDER	$223.46	Quantity
2	Solenoid Operated Cartrid 400/17666	1	AVAILABLE TO ORDER	$259.39	Quantity
3	Filter 400/17667	1	AVAILABLE TO ORDER	$165.91	Quantity
4	Coil only 332/G3836	1	AVAILABLE TO ORDER	$165.08	Quantity

Showing 1 to 5 of 5 parts

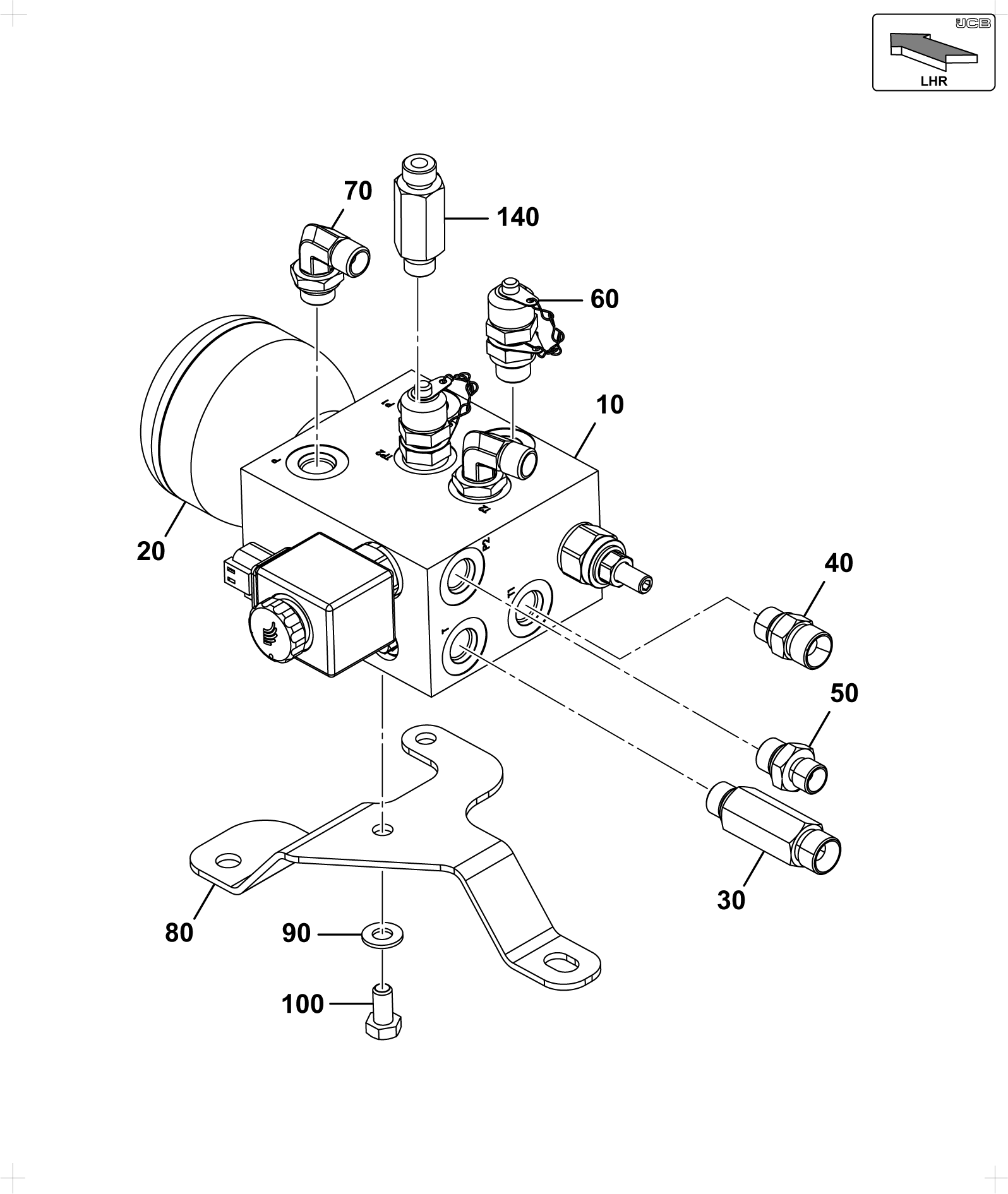

DIAG-E340-1-10-401621 E340-1-10 VALVES SERVO CONTROL (PILOT CONTROL) INSTALLATION PILOT VALVE
