Scroll to zoom Click a part # to view details

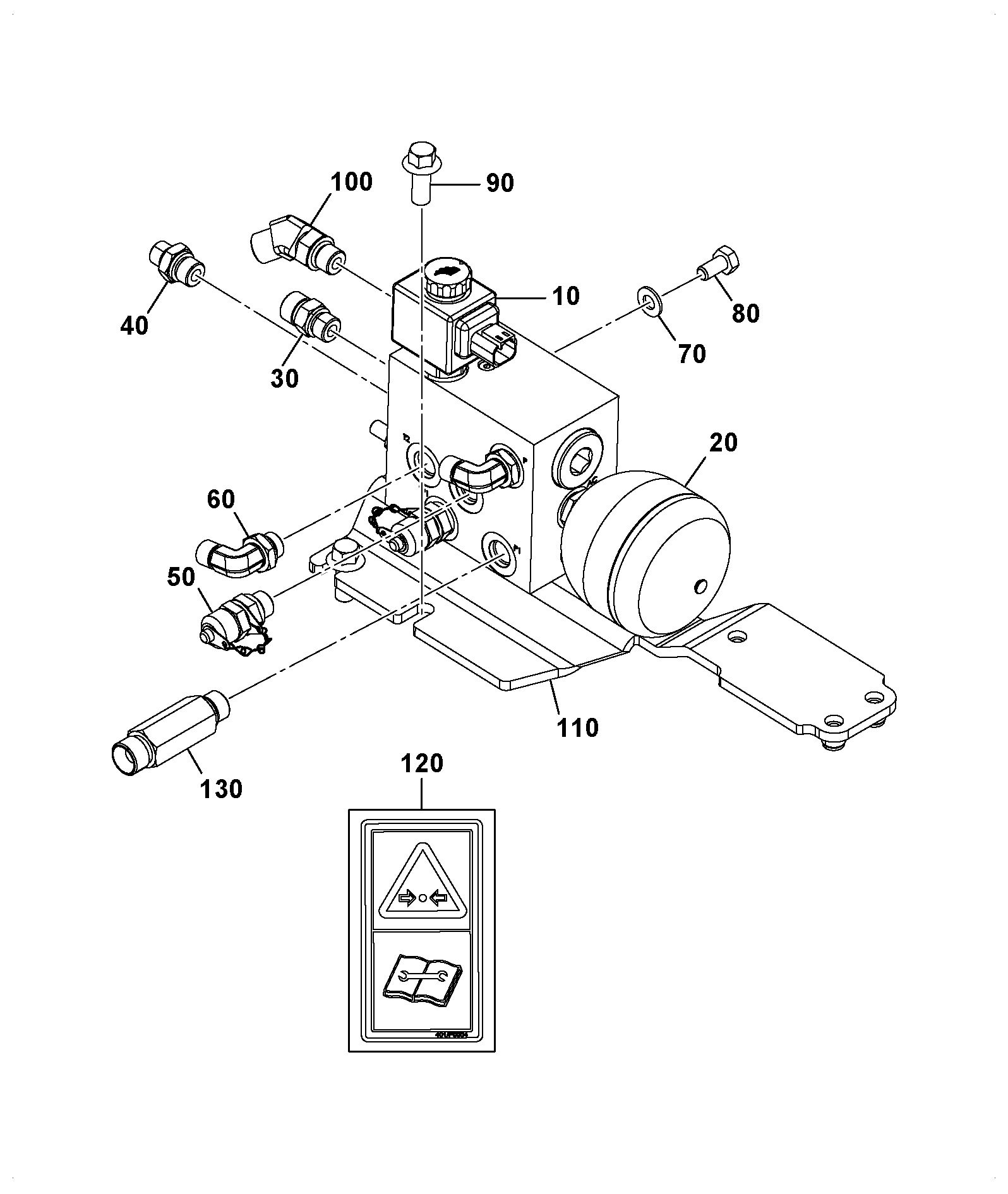

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | PILOT VALVE 401/M8958 402/P6059 | 1 | $1,017.87 | |||
| 20 | ACCUMULATOR 0.24ltr 5.0ba 401/C8565 | 1 | $216.27 | |||
| 30 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 40 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 50 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $132.58 | |||
| 60 | ELBOW G1/4A X 9/16UNF 816/90618 | 1 | $21.13 | |||
| 70 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 80 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 90 | BOLT FLANGED HEX M10 x 25 G8.8(KANBAN) 1317/3407D | 1 | $1.64 | |||
| 100 | ADAPTOR 9/16SAE x G3/8A (P980) 816/90271 | 1 | $7.88 | |||
| 110 | WA PILOT CONTROL MOUNT HM 334/D3523 402/R7011 | 1 | $223.76 | |||
| 120 | (P) (Pre-P) Label ISO-06A 332/G7379 | 1 | $1.73 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E340-10-1-401642 E340-10-1 VALVES SERVO CONTROL (PILOT CONTROL) MOUNTING HMH
View Diagram -
DIAG-E340-10-10-401642 E340-10-10 VALVES SERVO CONTROL (PILOT CONTROL) MOUNTING HMH
View Diagram -
DIAG-E340-10-15-401642 E340-10-15 VALVES SERVO CONTROL (PILOT CONTROL) MOUNTING HMH
View Diagram
