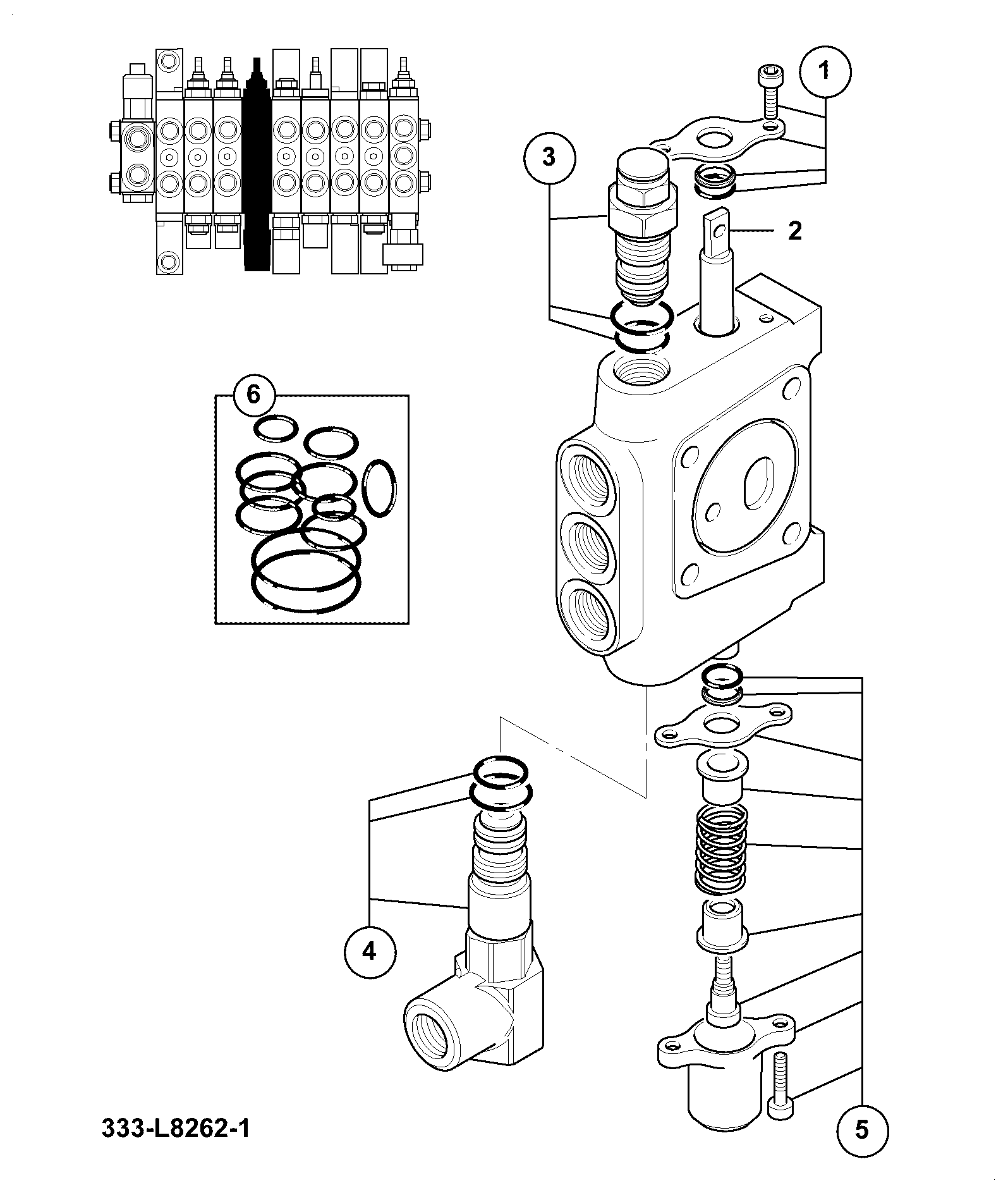

E320-65-1 VALVES EXCAVATOR SECTIONS BOOM SWING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit 333/L8257	1	AVAILABLE TO ORDER	$101.77	Quantity
2	SPOOL EYE END SCRE 25/222733 25/222970	1	AVAILABLE TO ORDER	$134.03	Quantity
3	Anticavitation Kit 928/60174	1	AVAILABLE TO ORDER	$118.17	Quantity
4	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
5	Kit 333/L8274	1	AVAILABLE TO ORDER	$160.39	Quantity
6	Kit 333/L8275	1	AVAILABLE TO ORDER	$143.14	Quantity

Showing 1 to 6 of 6 parts

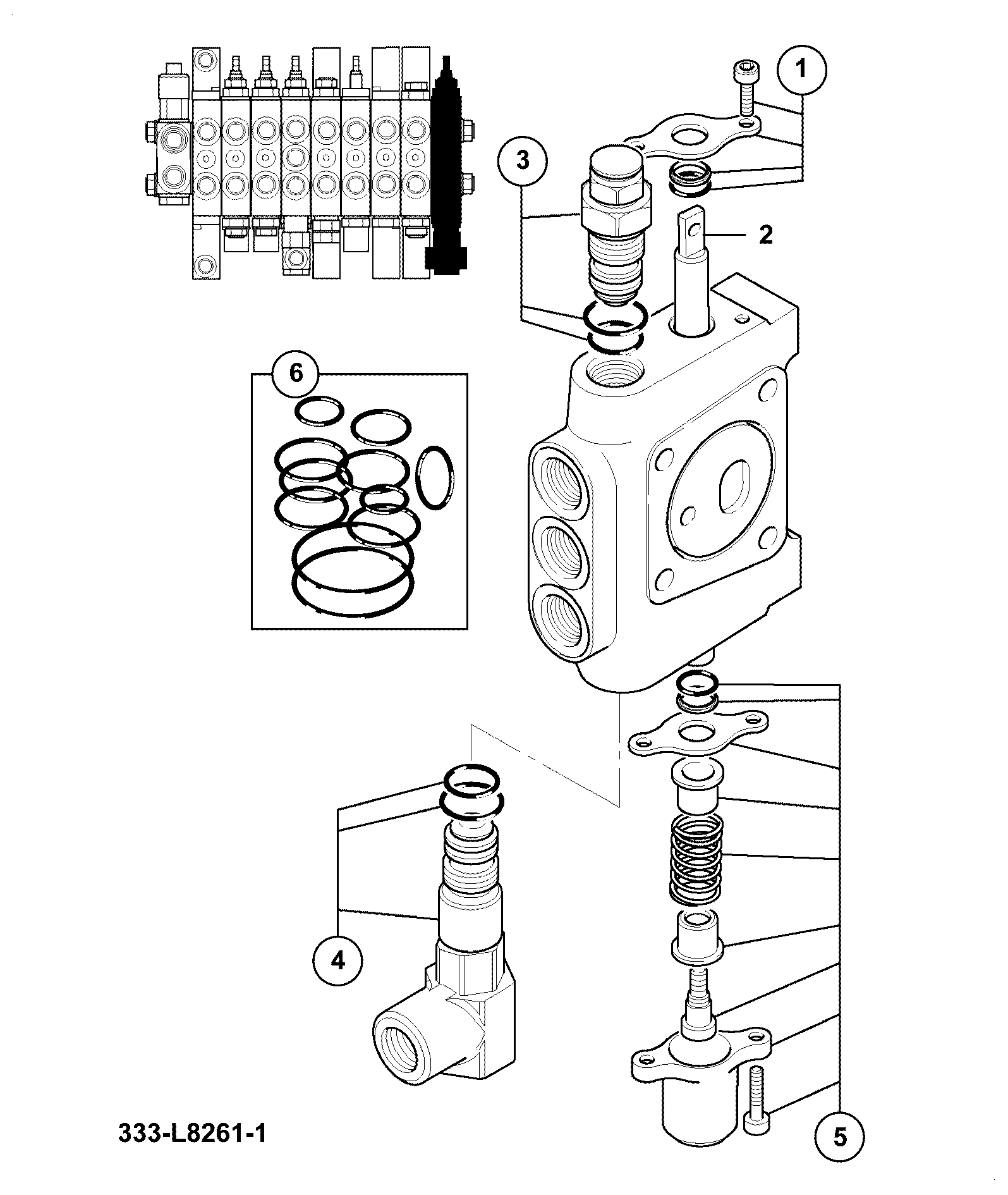

DIAG-E320-60-1-397818 E320-60-1 VALVES EXCAVATOR SECTIONS TRACK RIGHTSIDE
View Diagram

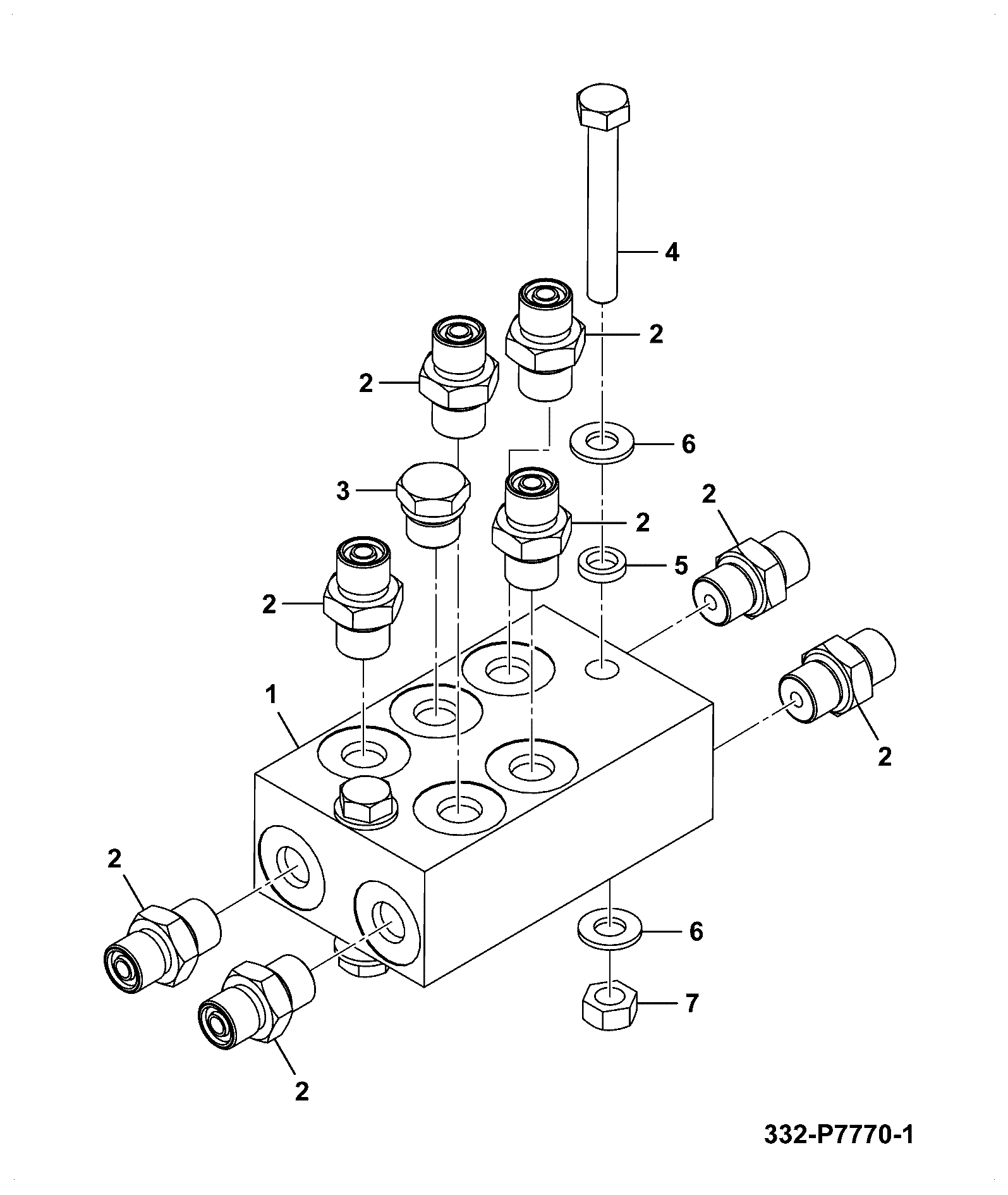

DIAG-E320-170-1-397818 E320-170-1 VALVES EXCAVATOR MANIFOLD BLOCK ASSEMBLY, 9 WAY
